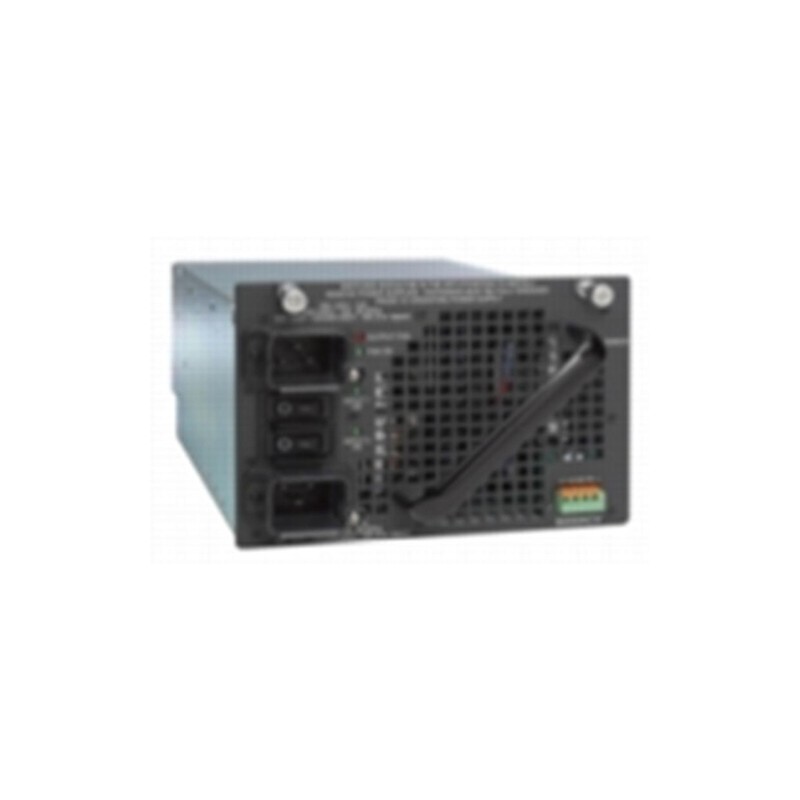

Cisco PWR-C45-6000ACV-RF
  • Cisco PWR-C45-6000ACV-RF
  • Cisco PWR-C45-6000ACV-RF
Cisco Catalyst 4500 E-Series Dual Input AC PoE Power Supplies



The 6000W ACV and 4200W ACV power supplies feature combined Mode Power Resiliency as an extension of the traditional combined mode power-supply behavior. Each power supply contains two smaller power supplies (called sub-units). In Combined Mode Power Resiliency the system relies only on power from three out of four power-supply sub-units. When using 200 VAC, this feature helps ensure that maximum power is available while the switch is protected against a single input power failure or sub-unit component failure.
AC input frequency50 - 60 Hz
AC input voltage90 - 264 V
Colour of productBlack
CompatibilityCisco Catalyst 4500 E
Electromagnetic compatibilityFCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN55022 Class A, CISPR22 Class A, AS/NZS 3548 Class A, VCCI Class A, EN 55022, EN 55024, EN 61000-6-1, EN 50082-1, EN 61000-3-2, EN 61000-3-3, ETS 300 386
Heat dissipation2720 BTU/h
Input current12 - 16 A
LED indicatorsY
Mean time between failures (MTBF)341356 h
Operating altitude-60 - 2000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)32 - 104 °F
Product typePower supply
SafetyUL 60950, CAN/CSA-C22.2 No. 60950, EN 60950, IEC 60950, TS 001, AS/NZS 3260
Storage relative humidity (H-H)10 - 90 %
Storage temperature (T-T)-40 - 75 °C
Total power6000 W

Similar products

  • Cisco WS-F6700-DFC3CXL
    Cisco WS-F6700-DFC3CXL
  • Cisco 4-Port T1/E1 Clear Channel High-Speed WAN Interface Card
    Cisco 4-Port T1/E1 Clear Channel...
  • Cisco SPA-8X1GE-V2
    Cisco SPA-8X1GE-V2
  • Cisco HWIC-2CE1T1-PRI
    Cisco HWIC-2CE1T1-PRI
  • Cisco CWDM 1590-nm SFP Gigabit Ethernet and 1 and 2 Gb Fibre Channel
    Cisco CWDM 1590-nm SFP Gigabit Ethernet...

Cisco PWR-C45-6000ACV-RF

Catalyst 4500 6000 WAC Power Supply, PoE, RF

PWR-C45-6000ACV-RF

Out of Stock

£2,009.84
£1,674.86 Ex VAT.
