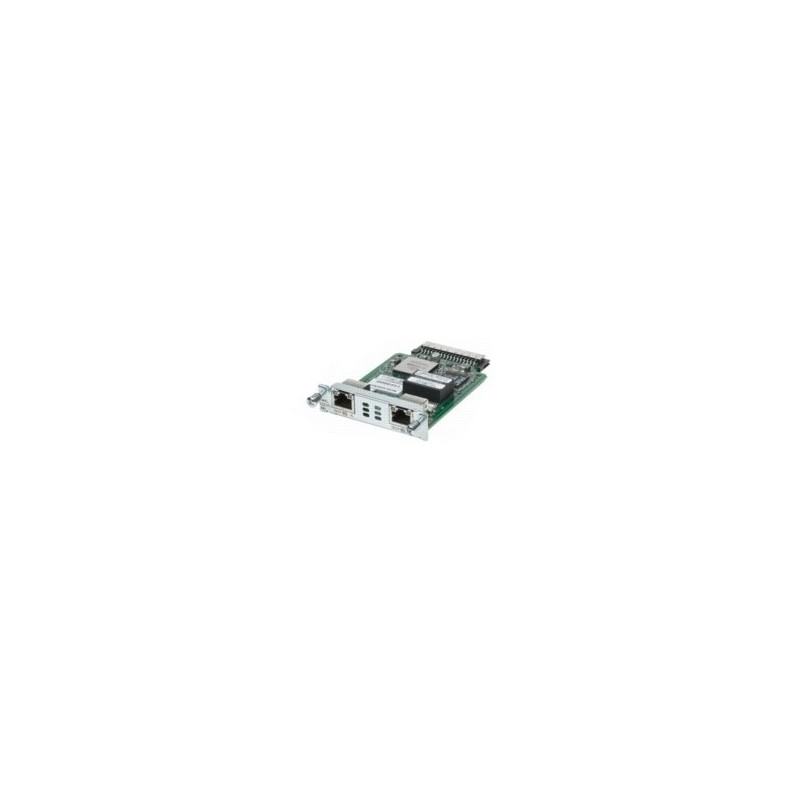

Cisco HWIC-2CE1T1-PRI switch component
The Cisco® Channelized T1/E1 and ISDN PRI High-Speed WAN Modules combine multiple T1/E1 WAN connectivity-Channelized T1/E1 and ISDN Primary Rate Interface (PRI), in the same card. Applications include fractional or full T1/E1 WAN connectivity, ISDN PRI for primary WAN link or WAN backup, and dial access aggregation. With flexible WAN connectivity options, together with integrated routing, security, voice, and wireless capabilities, Cisco Integrated Services Routers can meet every need of enterprise-class branch offices today and in the future. Three versions are available, 1- and 2-port cards in a single-wide high-speed WAN interface card (HWIC), and a 8-port cards in a single-wide network module. The different versions help enable customers to deploy different port densities according to the needs of individual offices. The modules can be used in T1 or E1 networks, selectable by software configuration. The integrated channel service unit/data service unit (CSU/DSU) function allows customers to consolidate customer premises equipment (CPE). The modules support balanced and unbalanced E1 connectivity and conform to the G.703 and G.704 standards for unframed and framed E1 modes. The Channelized T1/E1 and ISDN PRI modules work with the digital modem module in the Cisco 2800 and 3800 Series Routers to provide V.90- and V.92-compliant digital dial access aggregation.



The 1- and 2-port Channelized T1/E1 and ISDN PRI HWICs are updated versions of the E1/T1 ISDN PRI network modules, with the same functions and performance in a compact form factor of HWIC. You can save the network module slots for other LAN/WAN connectivity, and your deployment flexibility is greatly enhanced.
CompatibilityCisco 2811, 2821, 2851 3825, 3845
Compatible operating systemsIOS 12.4(11)XW4, 12.4(20)T
Connectivity technologyWired
Dimensions (WxDxH)78.2 x 120.4 x 90.1 mm
Electromagnetic emissions47 CFR Part 15: 2005, CISPR22: 2005, EN300386: V1.3.3: 2005, EN55022: 1994 [+ amd 1 & 2], EN55022: 1998, EN61000-3-2: 2000 [Inc amd 1 & 2], EN61000-3-3: 1995 [+ amd 1: 2001], ICES-003 Issue 4: 2004, KN 22: 2005, VCCI: V-3/2006.04, CISPR24: 1997 [+ amd 1 &
I/O ports2x RJ-48
InternalYes
LED indicatorsYes
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
SafetyUL60950, C22.2 No.60950, EN60950, AS/NZS3260 & TS001, IEC60950
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Weight90 g

Similar products

  • Cisco WS-F6700-DFC3CXL
    Cisco WS-F6700-DFC3CXL
  • Cisco 4-Port T1/E1 Clear Channel High-Speed WAN Interface Card
    Cisco 4-Port T1/E1 Clear Channel High-Speed WAN Interface Card
  • Cisco SPA-8X1GE-V2
    Cisco SPA-8X1GE-V2
  • Cisco CWDM 1590-nm SFP Gigabit Ethernet and 1 and 2 Gb Fibre Channel
    Cisco CWDM 1590-nm SFP Gigabit Ethernet and 1 and 2 Gb Fibre Channel

Cisco HWIC-2CE1T1-PRI

2 Port Channelized T1/E1 and ISDN PRI High Speed WAN Interface Card

HWIC-2CE1T1-PRI=

Out of Stock

£4,117.56
£3,431.30 Ex VAT.
