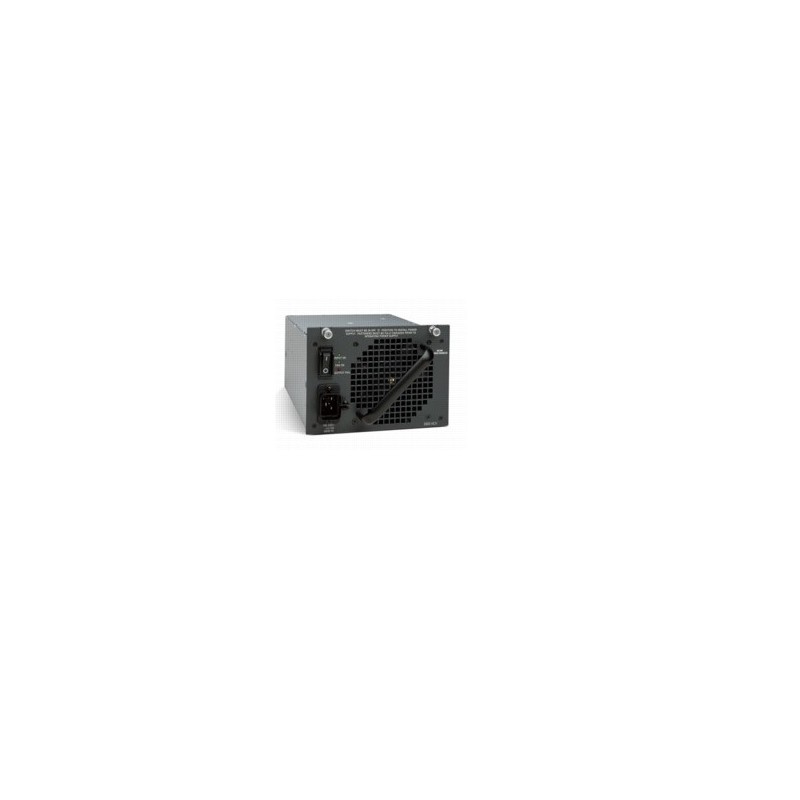

Cisco PWR-C45-2800ACV-RF
  • Cisco PWR-C45-2800ACV-RF
  • Cisco PWR-C45-2800ACV-RF
All Cisco Catalyst 4500 Series PoE line cards can distinguish an IEEE or Cisco prestandard powered device from an unpowered network interface card (NIC) to help ensure that power is applied only when an appropriate device is connected. With a Cisco PoE network, administrators can depend on a robust network that is safe to deploy and simple to maintain.



PoE(P)

PoE provides -48-VDC power over standard Category 5 unshielded twisted-pair (UTP) cable up to 100 meters when an IEEE 802.3 af-compliant or Cisco prestandard powered device is attached to the PoE line-card port. Instead of requiring wall power, attached devices such as IP phones, wireless base stations, video cameras, and other IEEE-compliant appliances can use power provided from the Cisco Catalyst 4500 Series PoE line cards. This capability gives network administrators centralized control over power and eliminates the need to install outlets in ceilings and other out-of-the-way places where a powered device can be installed. When a switch is connected to an uninterruptible-power-supply (UPS) system, network administrators can ensure that power outages will not affect network availability. PoEP extends the power over ethernet cable to up to 30W per port.
AC input frequency50 - 60 Hz
AC input voltage200 - 240 V
Colour of productBlack,Grey
CompatibilityCisco Catalyst 4503-E, 4506-E, 4507R-E, 4510R-E, 4507R+E, 4510R+E
Electromagnetic compatibilityFCC Part 15 (CFR 47) Class A, ICES-003 Class A, EN55022 Class A, CISPR22 Class A, AS/NZS 3548 Class A, VCCI Class A, EN 55022, EN 55024, EN 61000-6-1, EN 50082-1, EN 61000-3-2, EN 61000-3-3, ETS 300 386
Heat dissipation2387 BTU/h
Input current16 A
Mean time between failures (MTBF)155822 h
Operating altitude-60 - 2000 m
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)32 - 104 °F
Product typePower supply
SafetyUL 60950, CAN/CSA-C22.2 No. 60950, EN 60950, IEC 60950, TS 001, AS/NZS 3260
Storage relative humidity (H-H)10 - 90 %
Storage temperature (T-T)-40 - 75 °C
Total power2800 W

Similar products

  • Cisco WS-F6700-DFC3CXL
    Cisco WS-F6700-DFC3CXL
  • Cisco 4-Port T1/E1 Clear Channel High-Speed WAN Interface Card
    Cisco 4-Port T1/E1 Clear Channel...
  • Cisco SPA-8X1GE-V2
    Cisco SPA-8X1GE-V2
  • Cisco HWIC-2CE1T1-PRI
    Cisco HWIC-2CE1T1-PRI
  • Cisco CWDM 1590-nm SFP Gigabit Ethernet and 1 and 2 Gb Fibre Channel
    Cisco CWDM 1590-nm SFP Gigabit Ethernet...

Cisco PWR-C45-2800ACV-RF

Catalyst 4500 2800W, RF

PWR-C45-2800ACV-RF

Out of Stock

£727.50
£606.25 Ex VAT.
