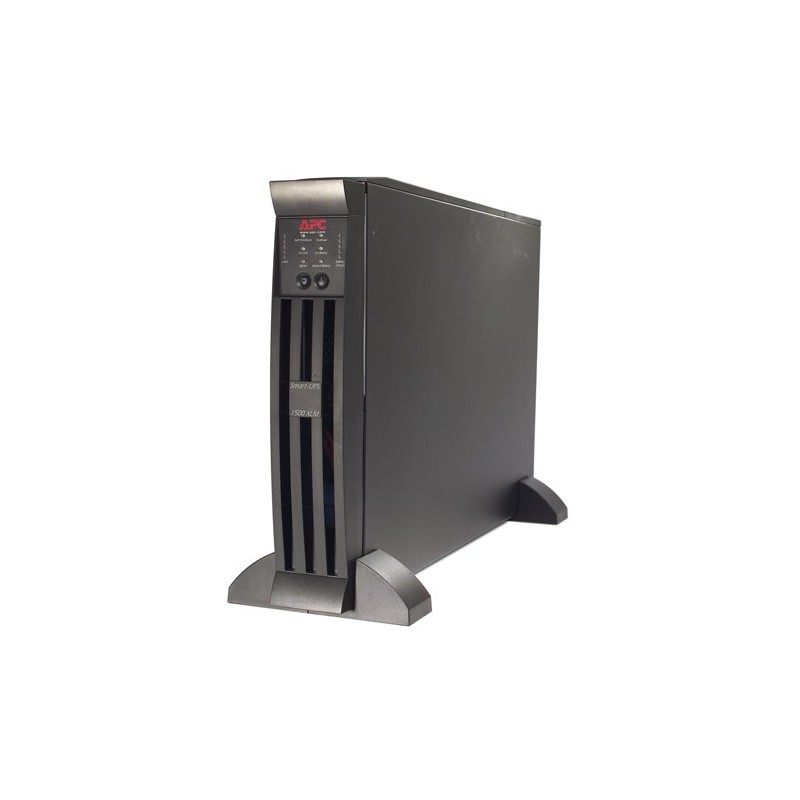

APC SUM1500RMXLI2U Smart-UPS XL Modular 1500VA 230V Rackmount/Tower
  • APC SUM1500RMXLI2U Smart-UPS XL Modular 1500VA 230V Rackmount/Tower
  • APC SUM1500RMXLI2U Smart-UPS XL Modular 1500VA 230V Rackmount/Tower

Please Note, this product is not for consumer use in the European Union.

APC Smart-UPS XL, 1500VA/1425W, Input 230V/Output 230V, Interface Port DB-9 RS-232, RJ-45 10/100 Base-T, USB, Extended runtime model, Rack Height 2 U


Includes: CD with software, Installation Guide, Rack Mounting Brackets, Rack Mounting support rails, Smart UPS signalling RS-232 cable, USB cable, User Manual, Web/SNMP Management Card



Features: Adjustable voltage-transfer points, Automatic internal bypass,

Automatic self-test, Boost and Trim Automatic Voltage Regulation (AVR),

Cold-start capable, Disconnected battery notification, Global safety approvals, Hot-swappable batteries, LED status indicators, Modular design,

Network manageable, Rack/Tower Convertible, Safety-agency approved,

Scalable runtime, Serial Connectivity, SmartSlot, Temperature-compensated battery charging, USB Connectivity, User-replaceable batteries,

User-replaceable power modules.

Battery typeVRLA
Cable length3 m
CertificationC-tick,CE,EN 50091-2,EN 55022 Class A,EN 61000-3-2,GOST
Colour of productBlack
Dimensions (WxDxH)600 x 980 x 250 mm
Emergency Power Off (EPO)Yes
I/O portsAP9619
Input connection typeIEC-320 C14
InterfaceDB-9 RS-232, RJ-45 10/100 Base-T, USB
Networking featuresYes
Nominal input voltage230 V
Nominal output voltage230 V
Number of output IEC jumpers2
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output connections(9) IEC 320 C13
Output power1425 W
Output power capacity (VA)1500 VA
Output voltage note220: 230 / 240
Power supply input frequency50 - 60 Hz
Replacement battery cartridgeRBC43
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-20 - 45 °C
Storage temperature range (T-T)-20 - 45 °C
Surge energy rating490 J
Typical backup time at full load11.9 min
Typical backup time at half load28.3 min
Weight47000 g
Output power capacity1500 VA
Audible alarm(s)Yes
