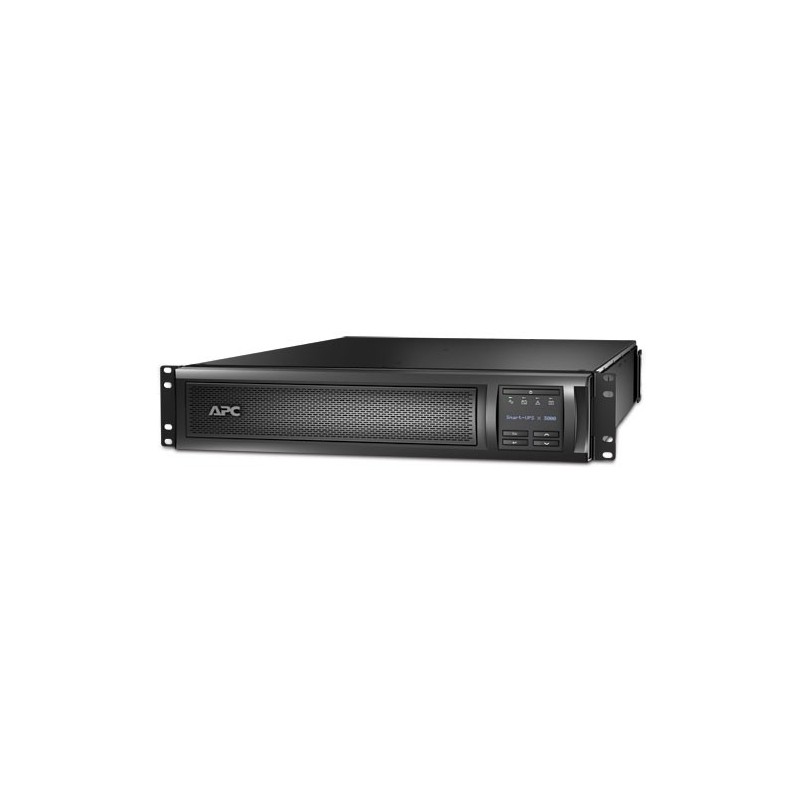

APC SMX3000RMHV2U Smart-UPS X 3000VA Rack/Tower LCD 200-240V

More Info
Details

Please Note, this product is not for consumer use in the European Union.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery.

Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.

Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.

Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.

Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.

Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.

Disconnected battery notification

Warns when a battery is not available to provide backup power.

Network manageable

Provides remote management of the UPS over the network.

Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.

LED status indicators

Quickly understand unit and power status with visual indicators.

Serial Connectivity

Provides management of the UPS via a serial port.

USB connectivity

Provides management of the UPS via a USB port (not available on all models).

Disconnected battery notification

Warns when a battery is not available to provide backup power.

AC outlet types	C13 coupler,C19 coupler
AC outlets quantity	9 AC outlet(s)
Auto-restart	Yes
Automatic battery test	Yes
Automatic Voltage Regulation (AVR)	Yes
Battery capacity	738 VAh
Battery life (max)	5 year(s)
Battery recharge time	3 h
Battery replacement alarms	LED
Battery technology	Sealed Lead Acid (VRLA)
Battery type	APCRBC117
Cable length	1.83 m
Cables included	RS-232,USB cable
Certification	CE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
Colour of product	Black
Crest factor	3:1
Depth	667 mm
Efficiency	98.5 %
Emergency Power Off (EPO)	Yes
Form factor	Rackmount/Tower
Height	85 mm
Hot-swap battery	Yes
Input connections	IEC-320 C20, Schuko CEE 7 / EU1-16P, BS1363A
Interface	SmartSlot
LED indicators	Yes
Manual	Yes
Noise level	55 dB
Nominal input voltage	230 V
Nominal output voltage	230 V
Non-operating altitude	0 - 15000 m
Number of output IEC jumpers	2
Operating altitude	0 - 3000 m
Operating relative humidity (H-H)	0 - 95 %
Operating relative humidity range	0 - 95 %
Operating temperature (T-T)	0 - 40 °C
Operating temperature range (T-T)	0 - 40 °C
Output frequency regulation	50/60 Hz
Output operation voltage (max)	240 V
Output operation voltage (min)	208 V
Output power	2700 W
Output power capacity (VA)	3000 VA
Output voltage THD	5 %
Package depth	869 mm
Package dimensions (WxDxH)	596 x 869 x 243 mm
Package height	243 mm
Package weight	45360 g
Package width	596 mm
Power plug	C20 coupler
Power supply input frequency	50/60 Hz
Quantity per pallet	8 pc(s)
Quick installation guide	Yes
Rack capacity	2U
Rack mount kit	Yes
Replacement battery cartridge	APCRBC117
RoHS compliance	Yes
Source data-sheet	Icecat.biz
Storage relative humidity (H-H)	0 - 95 %
Storage relative humidity range	0 - 95 %
Storage temperature (T-T)	-15 - 45 °C
Storage temperature range (T-T)	-15 - 45 °C
Surge energy rating	645 J
Surge protection	Yes
Typical backup time at full load	6.3 min
Typical backup time at half load	18 min
Waveform	Sine
Weight	37320 g
Width	432 mm
Output power capacity	3000 VA
UPS topology	Line-Interactive
Audible alarm(s)	Yes
Hold time (min)	2 ms
Hold time (max)	10 ms
Software CD	Yes
SmartSlot	Yes
