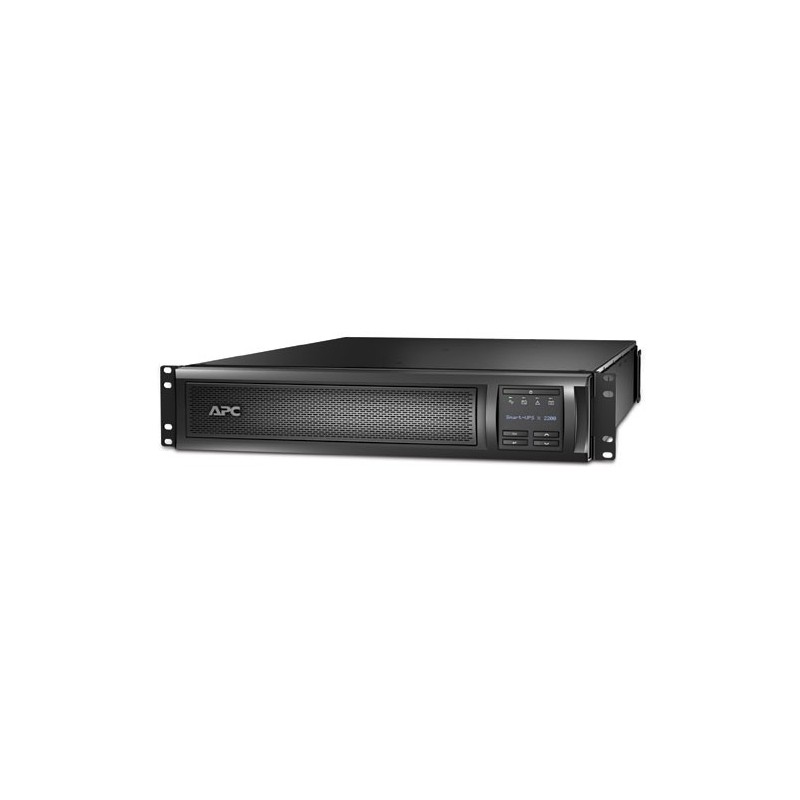

APC SMX2200RMHV2U Smart-UPS X 2200VA Rack/Tower LCD 200-240V
  • APC SMX2200RMHV2U Smart-UPS X 2200VA Rack/Tower LCD 200-240V
  • APC SMX2200RMHV2U Smart-UPS X 2200VA Rack/Tower LCD 200-240V
  • APC SMX2200RMHV2U Smart-UPS X 2200VA Rack/Tower LCD 200-240V
  • APC SMX2200RMHV2U Smart-UPS X 2200VA Rack/Tower LCD 200-240V

Please Note, this product is not for consumer use in the European Union.

Boost and Trim Automatic Voltage Regulation (AVR)

Gives higher application availability by correcting low and high voltage conditions without using the battery.



Intelligent battery management

Maximizes battery performance, life, and reliability through intelligent, precision charging.



Power conditioning

Protects connected loads from surges, spikes, lightning, and other power disturbances.



Temperature-compensated battery charging

Prolongs battery life by regulating the charge voltage according to battery temperature.



Automatic restart of loads after UPS shutdown

Automatically starts up the connected equipment upon the return of utility power.



Automatic self-test

Periodic battery self-test ensures early detection of a battery that needs to be replaced.



Disconnected battery notification

Warns when a battery is not available to provide backup power.



Network manageable

Provides remote management of the UPS over the network.



Audible alarms

Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition.



LED status indicators

Quickly understand unit and power status with visual indicators.



Serial Connectivity

Provides management of the UPS via a serial port.



USB connectivity

Provides management of the UPS via a USB port (not available on all models).



Disconnected battery notification

Warns when a battery is not available to provide backup power.
AC outlet typesC13 coupler,C19 coupler
AC outlets quantity9 AC outlet(s)
Auto-restartYes
Automatic battery testYes
Automatic Voltage Regulation (AVR)Yes
Battery capacity702 VAh
Battery life (max)5 year(s)
Battery recharge time3 h
Battery replacement alarmsLED
Battery technologySealed Lead Acid (VRLA)
Battery typeAPCRBC117
Cable length1.83 m
Cables includedRS-232,USB cable
CertificationCE, CSA, EAC, EN/IEC 62040-1, EN/IEC 62040-2, FCC Part 15 Class A, IEC 60950, IRAM, RCM, UL 1778, VDE, REACH, PEP, EOLI
Colour of productBlack
Depth667 mm
Efficiency98.1 %
Emergency Power Off (EPO)Yes
Form factorRackmount/Tower
Height85 mm
Hot-swap batteryYes
Input connectionsIEC-320 C20, Schuko CEE 7 / EU1-16P, BS1363A
InterfaceSmartSlot, USB
LED indicatorsYes
ManualYes
Noise level55 dB
Nominal input voltage230 V
Nominal output voltage230 V
Non-operating altitude0 - 15000 m
Number of output IEC jumpers2
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 95 %
Operating relative humidity range0 - 95 %
Operating temperature (T-T)0 - 40 °C
Operating temperature range (T-T)0 - 40 °C
Output frequency regulation50/60 Hz
Output operation voltage (max)240 V
Output operation voltage (min)208 V
Output power1980 W
Output power capacity (VA)2200 VA
Output voltage THD5 %
Package depth869 mm
Package dimensions (WxDxH)596 x 869 x 243 mm
Package height243 mm
Package weight45360 g
Package width596 mm
Power plugC20 coupler
Power supply input frequency50/60 Hz
Quantity per pallet8 pc(s)
Rack capacity2U
Rack mount kitYes
Rack mountingYes
Replacement battery cartridgeSMX2200R2HVNC
Response time4 ms
RoHS complianceYes
Source data-sheetIcecat.biz
Storage relative humidity (H-H)0 - 95 %
Storage relative humidity range0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Storage temperature range (T-T)-15 - 45 °C
Surge energy rating645 J
Surge protectionYes
Typical backup time at full load9.8 min
Typical backup time at half load25.3 min
USB portYes
WaveformSine
Weight37320 g
Width432 mm
Output power capacity2200 VA
UPS topologyLine-Interactive
Audible alarm(s)Yes
Hold time (min)2 ms
Hold time (max)10 ms
Software CDYes
SmartSlotYes
