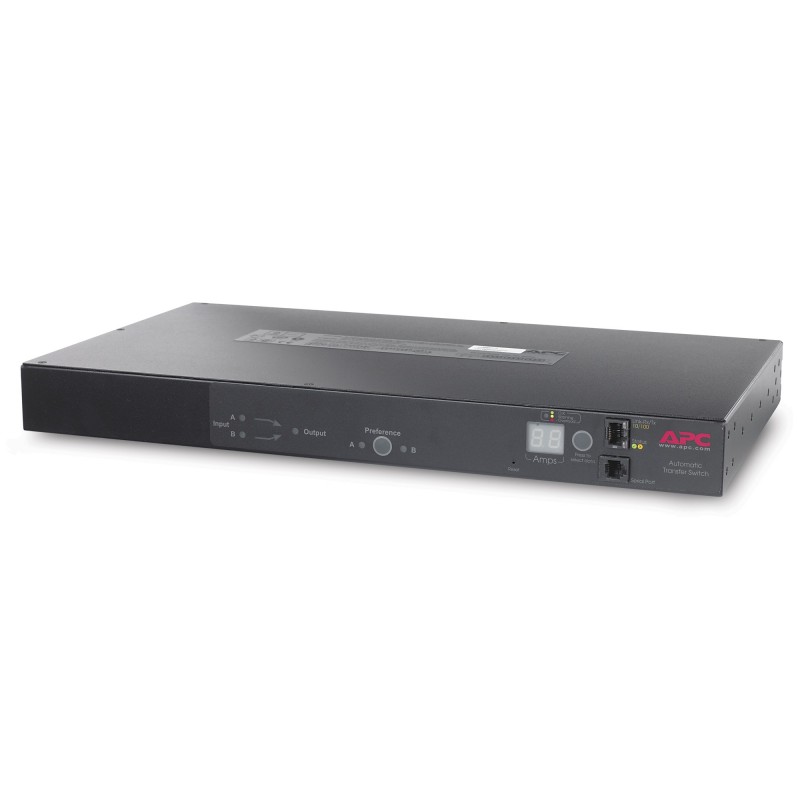

APC Rack Automatic Transfer Switch , Input: 230V , Input Connections: IEC-320 C14 , Output Connections: IEC 320 C13.
Includes: Documentation CD, Rack Mounting brackets, RS-232 configuration cable, Warranty card.
Includes: Documentation CD, Rack Mounting brackets, RS-232 configuration cable, Warranty card.
| Certification | EN 55022 Class A,FCC Part 15 Class A |
| Colour of product | Black |
| Dimensions (WxDxH) | 432 x 229 x 44 mm |
| Input connection type | IEC-320 C14 |
| Input frequency | 47/63 Hz |
| Maximum input current per phase | 10 A |
| Maximum total current draw per phase | 10 A |
| Nominal input voltage | 230 V |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating relative humidity range | 5 - 95 % |
| Operating temperature (T-T) | -5 - 45 °C |
| Operating temperature range (T-T) | -5 - 45 °C |
| Output connections | (12) IEC 320 C13 |
| Package dimensions (WxDxH) | 600 x 349 x 114 mm |
| Package weight | 5700 g |
| Rack mounting | Yes |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage relative humidity range | 5 - 95 % |
| Storage temperature (T-T) | -25 - 65 °C |
| Storage temperature range (T-T) | -25 - 65 °C |
| Weight | 3930 g |
