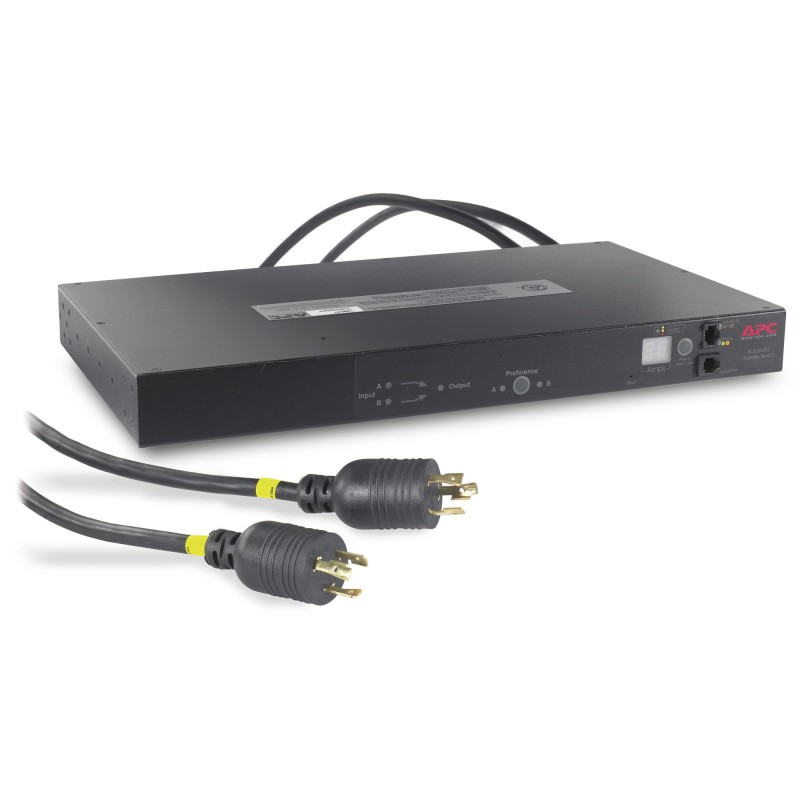

APC Rack ATS AP7752
  • APC Rack ATS AP7752
  • APC Rack ATS AP7752
  • APC Rack ATS AP7752
  • APC Rack ATS AP7752

Agility
Wide range of input and output connections
Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Availability
Remote Management Capabilities
Full-featured network management interfaces that provide standards-based management via Web, SNMP, and Telnet. Allows users to access, configure, and manage units from remote locations to save valuable time. Associated with this feature is the ability to quickly and easily upgrade the firmware via network download to installed units for future product enhancements.

Dual Input Power Sources
Supplies redundant AC power to connected equipment. Two AC lines power the unit and if the primary AC power fails, the unit will automatically switch to the alternative power source.

Information Displays
Indicates the status of the AC sources powering the units, as well as indicates which source is set as the primary source and which source is currently supplying power to the load. This provides a visual depiction of the power flow from the input to the load. This allows the user to quickly glance at the power flow and status of the input sources without connecting to the unit.

Cable length2.44 m
CertificationEN 55022 Class A,FCC Part 15 Class A RoHS 7b Exemption
Dimensions (WxDxH)432 x 229 x 44 mm
Input connection typeNEMA L5-20P
Input frequency47/63 Hz
Maximum input current per phase20 A
Maximum total current draw per phase20 A
Operating relative humidity range5 - 95 %
Operating temperature range (T-T)-5 - 45 °C
Output connections10x NEMA 5-20R
Package dimensions (WxDxH)600 x 349 x 114 mm
Package weight6.75 kg
Storage relative humidity range5 - 95 %
Storage temperature range (T-T)-25 - 65 °C

Similar products

  • APC RACK ATS, 230V, 10A, C14 IN, (12) C13 OUT
    APC RACK ATS, 230V, 10A, C14 IN, (12) C13 OUT

APC Rack ATS AP7752

RACK ATS, 120V, 20A, L5-20 IN, (10) 5-20R OUT

AP7752

Out of Stock

£7,682.04
£6,401.70 Ex VAT.
