AC outlets quantity | 24 AC outlet(s) |
Cable length | 3 m |
Certification | EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI Class A, VDE |
Colour of product | Black |
Dimensions (WxDxH) | 56 x 51 x 1829 mm |
Input frequency | 50/60 Hz |
Maximum input current per phase | 16 A |
Maximum total current draw per phase | 16 A |
Nominal input voltage | 200-230 V |
Nominal output voltage | 230 V |
Non-operating altitude | 0 - 15000 m |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 5 - 95 % |
Operating relative humidity range | 5 - 95 % |
Operating temperature (T-T) | -5 - 45 °C |
Operating temperature range (T-T) | -5 - 45 °C |
Package dimensions (WxDxH) | 162 x 117 x 2038 mm |
Package weight | 9050 g |
PDU types | Metered |
Rack mounting | 0U |
RoHS compliance | Yes |
Storage relative humidity (H-H) | 5 - 95 % |
Storage relative humidity range | 5 - 95 % |
Storage temperature (T-T) | -25 - 65 °C |
Storage temperature range (T-T) | -25 - 65 °C |
Weight | 6770 g |

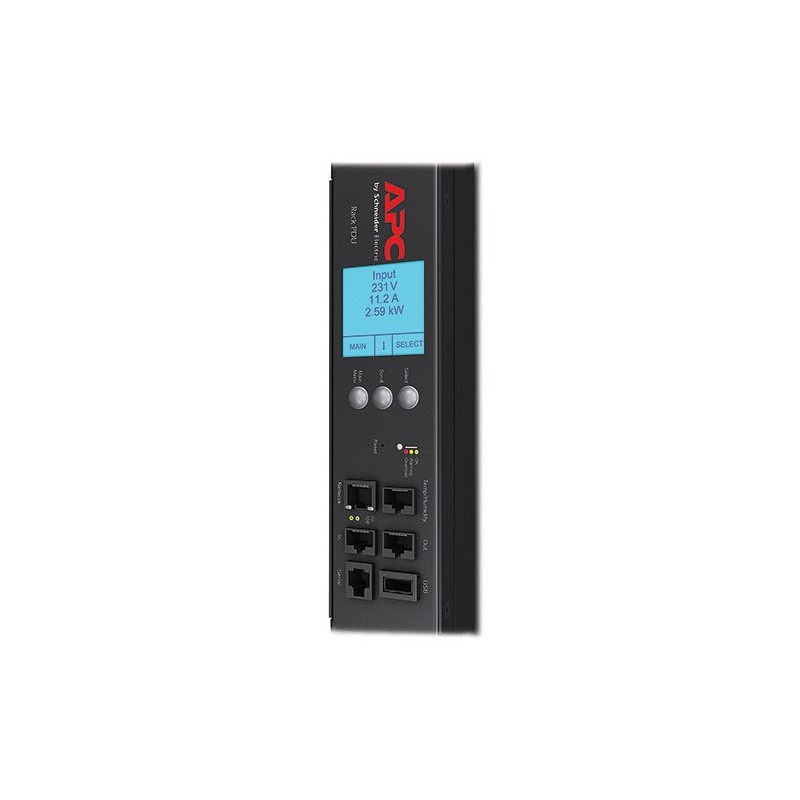

Rack PDU 2G, Metered, ZeroU, 16A, 230V, (21) C13 & (3) C19
AP8659EU3
Out of Stock
