Gigabit USB Media Converter
The Allied Telesis UMC2000/SC Gigabit mini media converter is small and flexible, with a multi-mode SC fiber connector to convert USB (-A or -C) to 1000SX/SC. It is also TAA compliant.
The Allied Telesis UMC2000/SC Gigabit mini media converter is small and flexible, with a multi-mode SC fiber connector to convert USB (-A or -C) to 1000SX/SC. It is also TAA compliant.
| Certification | FCC Class A\nEN55022\nEB55032\nCISPR 22 Class A\nC-TICK\nVCCI |
| Colour of product | Silver |
| Connectivity technology | Wired |
| Converter input interface | 100Base-TX |
| Converter output interface | 100Base-SX |
| Data transfer rate | 100 Mbit/s |
| Data transfer rate (max) | 100 Mbit/s |
| Depth | 101.6 mm |
| Ethernet interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Fiber ethernet cabling technology | 100Base-SX |
| Fiber mode structure | Multi-mode |
| Fiber optic connector | SC |
| Height | 21.8 mm |
| Input voltage | 5 V |
| Internal | N |
| Jumbo frames support | Y |
| LED indicators | Activity,Link |
| Maximum transfer distance | 2000 m |
| Networking standards | IEEE 802.1Q |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Rx power (min) | 32 dBmW |
| Safety | UL60950-1, EN60950-1 |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -30 - 70 °C |
| Supported network protocols | Pv4 IP/ TCP/UDP/ICMP/ IGMP & IPv6 TCP/UDP/ICMPv6 |
| Tx power (max) | 14 dBmW |
| Tx power (min) | -20 dBmW |
| VLAN support | Y |
| Wavelength | 1310 nm |
| Weight | 170 g |
| Width | 54.9 mm |

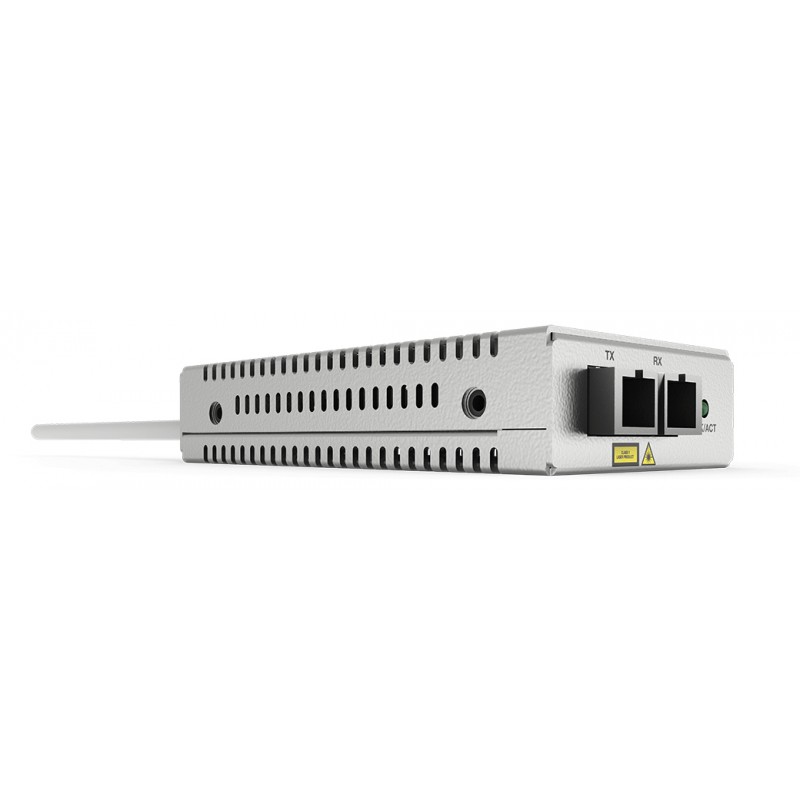

Allied Telesis UMC200/SC
100SX/SC Fast Ethernet, SC, 1310 nm, 62.5/125, max. 2 km, LED
AT-UMC200/SC-901
Out of Stock
£235.98
£196.65 Ex VAT.
