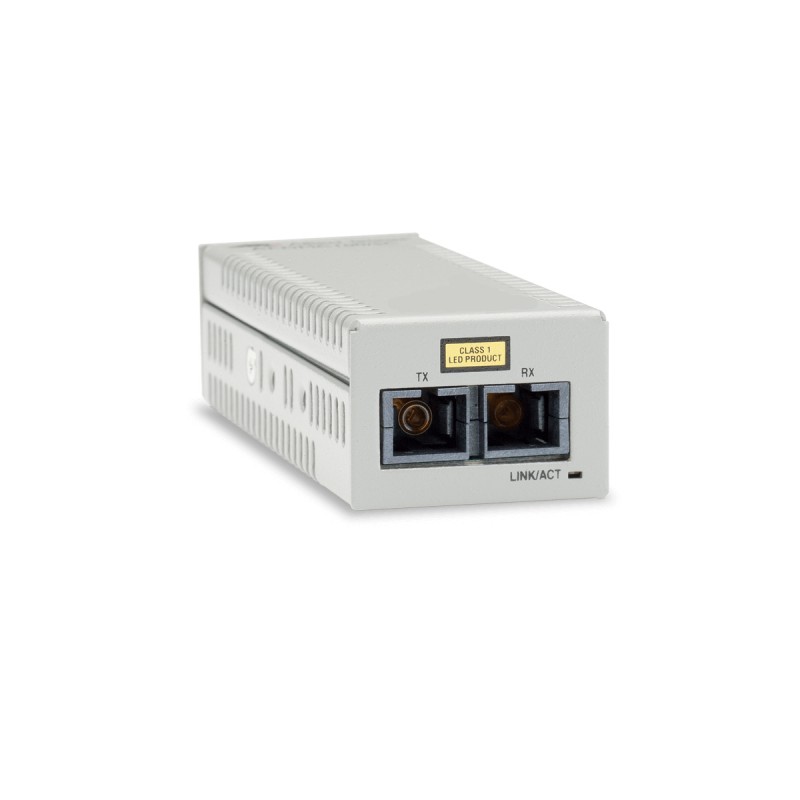

Allied Telesis AT-DMC100/SC-30
  • Allied Telesis AT-DMC100/SC-30
  • Allied Telesis AT-DMC100/SC-30
Fast Ethernet to Fiber Desktop Media Converter with USB power

This desktop media converter features 100TX to 100FX conversion with multi-mode SC fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
Auto MDI/MDI-XY
Colour of productGrey
Connectivity technologyWired
Converter input interface100Base-TX
Converter output interface100Base-FX
Data transfer rate100 Mbit/s
Data transfer rate (max)100 Mbit/s
Depth91.4 mm
Duplex systemFull,Half
Ethernet interface typeFast Ethernet
Fiber cable diameters supported50/125, 62.5/125 µm
Fiber mode structureMulti-mode
Fiber optic connectorSC
Height21.6 mm
InternalN
LED indicatorsY
Maximum transfer distance2000 m
Networking standardsIEEE 802.1Q
Operating altitude0 - 3048 m
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 40 °C
Power consumption (typical)1.5 W
Rx power (max)-34 dBmW
Rx power (min)-32 dBmW
Storage relative humidity (H-H)5 - 95 %
Storage temperature (T-T)-15 - 65 °C
Tx power (max)-14 dBmW
Tx power (min)-22.5 dBmW
VLAN supportY
Wavelength1310 nm
Weight113 g
Width31.8 mm
Packet forwarding rate (1 Gbps)1488000 pps
Packet forwarding rate (100 Mbps)148800 pps
Packet forwarding rate (10 Mbps)14880 pps

AT-DMC100SC-30.pdf

Allied Telesis AT-DMC100/SC-30 Data Sheet

Download (283.84k)

Allied Telesis AT-DMC100/SC-30

Desktop USB-Powered Media Converter, 100TX to 100FX

AT-DMC100/SC-30

Out of Stock

£223.71
£186.43 Ex VAT.
