This desktop media converter features 100TX to 100FX conversion with multi-mode ST fiber connector supporting a distance up to 2km. At just 1.25 inches wide × 3.6 inches deep × 0.85 inches high, this media converter can easily fit into the palm of a hand.
| Auto MDI/MDI-X | Y |
| Colour of product | Grey |
| Connectivity technology | Wired |
| Converter input interface | 100Base-TX |
| Converter output interface | 100Base-FX |
| Data transfer rate | 100 Mbit/s |
| Data transfer rate (max) | 100 Mbit/s |
| Depth | 91.4 mm |
| Duplex system | Full,Half |
| Ethernet interface type | Fast Ethernet |
| Fiber cable diameters supported | 50/125, 62.5/125 µm |
| Fiber mode structure | Multi-mode |
| Fiber optic connector | ST |
| Height | 21.6 mm |
| Internal | Y |
| LED indicators | Y |
| Maximum transfer distance | 2000 m |
| Networking standards | IEEE 802.1Q |
| Operating altitude | 0 - 3048 m |
| Operating relative humidity (H-H) | 5 - 95 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Power consumption (typical) | 1.5 W |
| Rx power (min) | -32 dBmW |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -15 - 65 °C |
| Tx power (max) | -14 dBmW |
| Tx power (min) | -22.5 dBmW |
| VLAN support | Y |
| Wavelength | 1310 nm |
| Weight | 113 g |
| Width | 31.8 mm |
| Packet forwarding rate (1 Gbps) | 1488000 pps |
| Packet forwarding rate (100 Mbps) | 148800 pps |
| Packet forwarding rate (10 Mbps) | 14880 pps |

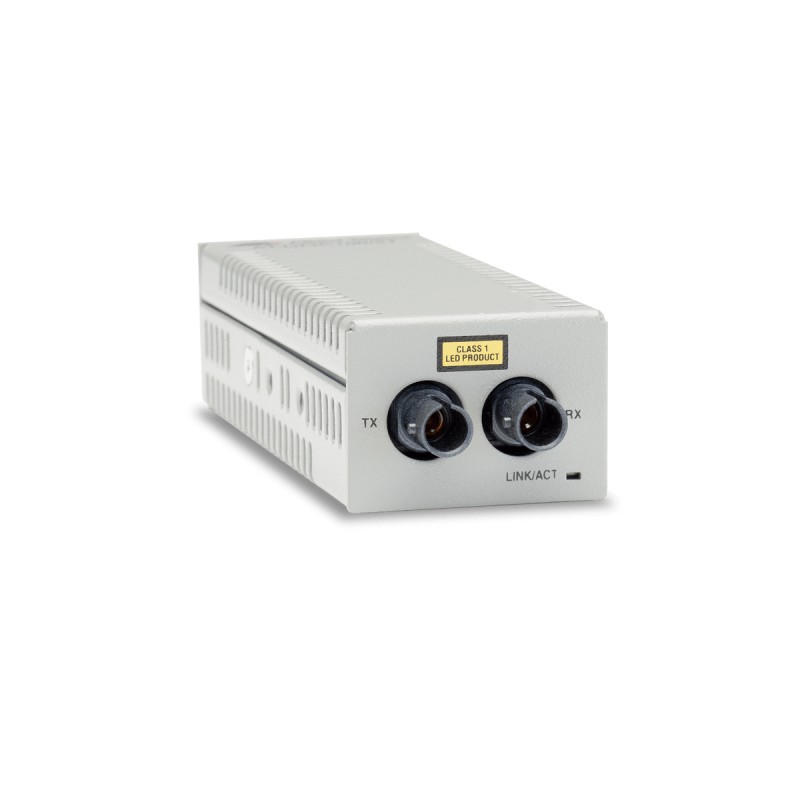

Allied Telesis AT-DMC100/ST-30
Fast Ethernet to Fiber Desktop Media Converter with USB power, 100TX to 100FX, ST fiber connector
AT-DMC100/ST-30
In Stock
£136.47
£113.72 Ex VAT.
