Certification | FCC Part 15 (Class B), CE EMC (Class B), C-Tick (Class B), BSMI, LVD (EN60950-1), BSMI |
Connectivity technology | Wired |
Content filtering | 1 |
Dimensions (WxDxH) | 272 x 187 x 36 mm |
Ethernet LAN (RJ-45) ports | 4 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Firewall throughput | 2000 Mbit/s |
Form factor | Desktop |
Heat dissipation | 45.38 BTU/h |
Input current | 2.5 A |
Mean time between failures (MTBF) | 529688.2 h |
Number of VLANs | 16 |
Operating relative humidity (H-H) | 10 - 90 % |
Operating temperature (T-T) | 0 - 40 °C |
Package depth | 247 mm |
Package height | 73 mm |
Package weight | 2420 g |
Package width | 427 mm |
Power consumption (max) | 13.3 W |
Rack mounting | Yes |
Storage relative humidity (H-H) | 10 - 90 % |
Storage temperature (T-T) | -30 - 70 °C |
VPN throughput | 500 Mbit/s |
WAN connection | Ethernet (RJ-45) |
Weight | 1400 g |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 2 |
SFP module slots quantity | 1 |
Active TCP connections (max) | 600000 |
Built-in fan | N |

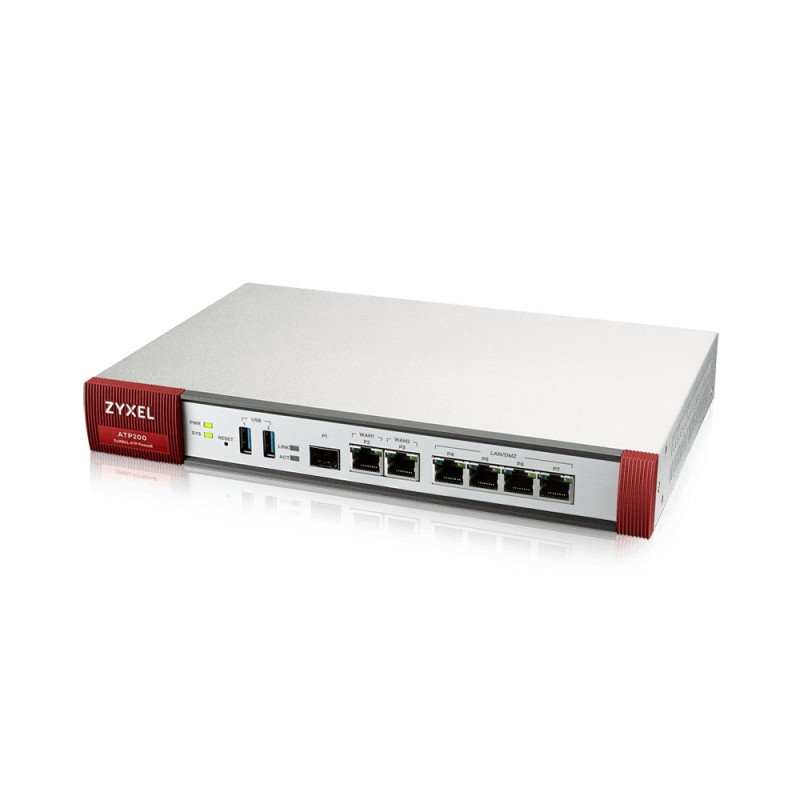

2000 Mbps, 600000 TCP, 10/100/1000 Mbps, 4x Ethernet, 2x WAN, SFP, 2x USB 3.0, DB9, 272x187x36 mm
ATP200-EU0102F
In Stock
