Backup function | Y |
Chassis type | Desktop |
Colour of product | Black |
CPU configuration (max) | 1 |
Depth | 232 mm |
Device class | Home & Home Office |
Embedded options available | Y |
Enhanced Intel SpeedStep Technology | Y |
Ethernet LAN | Y |
Ethernet LAN (RJ-45) ports | 2 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Execute Disable Bit | Y |
Height | 192 mm |
Hot-swap drive bays | Y |
Idle States | Y |
Installed storage drive type | HDD |
Intel 64 | Y |
Intel Enhanced Halt State | Y |
Intel Rapid Storage Technology | N |
Intel Smart Connect Technology | N |
Intel Stable Image Platform Program (SIPP) | N |
Intel Trusted Execution Technology | N |
Intel Virtualization Technology for Directed I/O (VT-d) | N |
Intel VT-x with Extended Page Tables (EPT) | Y |
L2 cache | 2 MB |
Maximum number of PCI Express lanes | 4 |
Maximum supported storage capacity | 40 TB |
Number of execution units | 16 |
Number of storage drives installed | 4 |
Number of storage drives supported | 4 |
On-board graphics adapter model | Intel HD Graphics 405 |
On/off switch | Y |
Operating temperature (T-T) | 0 - 35 °C |
Package type | box |
PCI Express configurations | 1x2+2x1,1x4,2x2,4x1 |
PCI Express slots version | 2.0 |
Processor boost frequency | 2.56 GHz |
Processor cache | 2 MB |
Processor code | SSSR2KL |
Processor codename | Braswell |
Processor cores | 4 |
Processor family | Intel Pentium |
Processor frequency | 1.6 GHz |
Processor lithography | 14 nm |
Processor model | N3710 |
Processor operating modes | 64-bit |
Processor socket | BGA 1170 |
Processor threads | 4 |
Quick installation guide | Y |
Quick start guide | Y |
Stepping | D1 |
Storage drive capacity | 10000 GB |
Storage drive size | 3.5 " |
Storage drives installed | Y |
Storage temperature (T-T) | -40 - 70 °C |
Supported storage drive types | HDD |
System bus rate | 2.5 GT/s |
Thermal Design Power (TDP) | 6 W |
Thermal Monitoring Technologies | Y |
Tjunction | 90 °C |
Total installed storage capacity | 40000 GB |
Type | NAS |
UART | Y |
USB port | Y |
Wi-Fi | No |
Width | 170 mm |
Processor cache type | L2 |
Maximum internal memory supported by processor | 8 GB |
Memory types supported by processor | DDR3L-SDRAM |
Memory channels supported by processor | Dual |
ECC supported by processor | N |
Intel Virtualization Technology (VT-x) | Y |
Intel Clear Video Technology | Y |
Processor package size | 25 x 27 mm |
On-board graphics adapter base frequency | 400 MHz |
Maximum on-board graphics adapter memory | 8 GB |
Processor series | Intel Pentium N3000 series for Mobile |
On-board graphics adapter burst frequency | 700 MHz |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 3 |
Conflict Free processor | Y |
Scenario Design Power (SDP) | 4 W |
Integrated 4G WiMAX | N |
Intel Secure Boot | Y |
Number of displays supported (on-board graphics) | 3 |
Intel® Wireless Display (Intel® WiDi) | Y |
Intel® Insider™ | N |
Intel® Clear Video HD Technology (Intel® CVT HD) | Y |
Intel® AES New Instructions (Intel® AES-NI) | Y |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Y |
Intel® Hyper Threading Technology (Intel® HT Technology) | N |
Intel® Identity Protection Technology (Intel® IPT) | Y |
Intel® Anti-Theft Technology (Intel® AT) | N |
Intel® Secure Key | Y |
Intel® Small Business Advantage (Intel® SBA) | N |
Intel® OS Guard | N |
Intel® Turbo Boost Technology | N |
Intel® Quick Sync Video Technology | Y |
Intel® High Definition Audio (Intel® HD Audio) | Y |
Intel® Smart Response Technology | N |
Processor ARK ID | 91830 |
Intel® InTru™ 3D Technology | N |
RAM capacity | 4 GB |

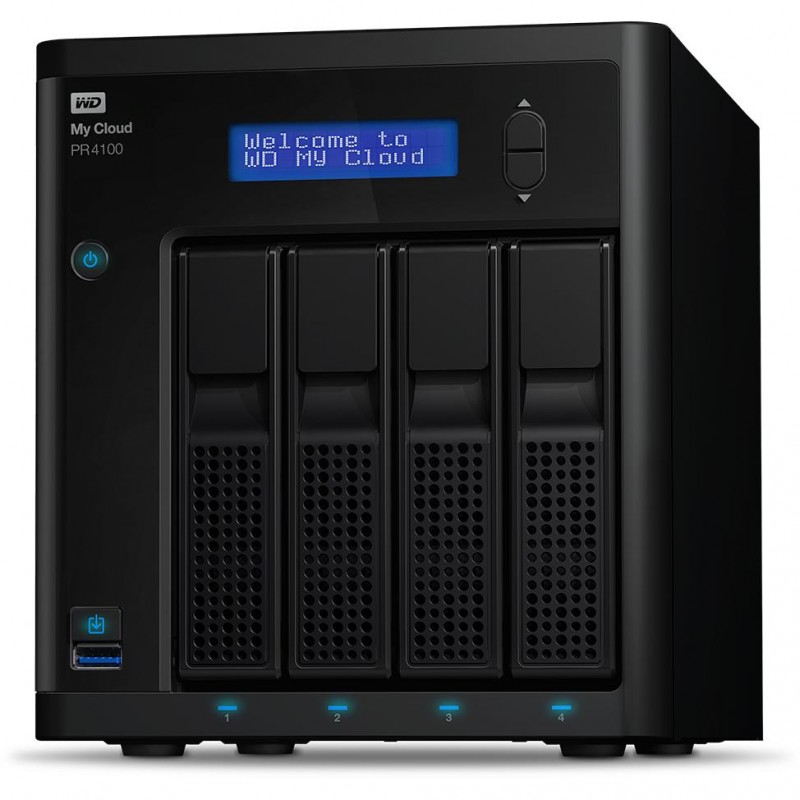

Intel Pentium N3710, 4GB RAM, 40 TB, 8.89 cm (3.5 ") , Gigabit Ethernet x 2, 232 x 170 x 192 mm
WDBNFA0400KBK-EESN
Out of Stock
