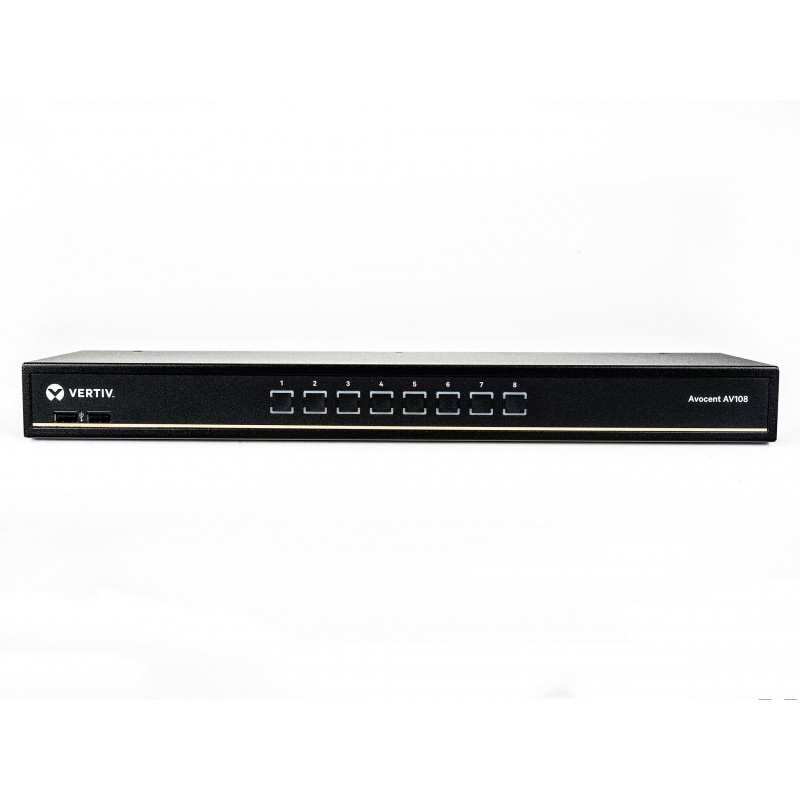

Avocent AV108 KVM basic switch offers simplified local access, management and control of up to 8 targets from a single console. This single user, smaller form factor KVM switch is designed specifically for IT rooms, small Data Centers and Branch Offices.
- Single-user, small 0U/1U or desktop form factor KVM switch allows local user to control up to 4 computers from single, keyboard, and mouse
- Supports both VGA and DisplayPort (DP) targets with a resolution of up to 2048 x 1536
- Switch between targets with the simple on-screen display (OSD), intuitive touch buttons, hot-key operation and scan mode
- Dedicated USB port for firmware upgrades
- Consolidated Server Management provides simplified local access, management and control of server resources from a single console
- Designed specifically for IT Rooms, small Data Centers and Branch Offices
- Cost-efficient solution to streamline access and control to server resources and increase speed to remediation and operational efficiencies
- Single-user, small 0U/1U or desktop form factor KVM switch allows local user to control up to 4 computers from single, keyboard, and mouse
- Supports both VGA and DisplayPort (DP) targets with a resolution of up to 2048 x 1536
- Switch between targets with the simple on-screen display (OSD), intuitive touch buttons, hot-key operation and scan mode
- Dedicated USB port for firmware upgrades
- Consolidated Server Management provides simplified local access, management and control of server resources from a single console
- Designed specifically for IT Rooms, small Data Centers and Branch Offices
- Cost-efficient solution to streamline access and control to server resources and increase speed to remediation and operational efficiencies
| AC input frequency | 50/60 Hz |
| AC input voltage | 100 - 240 V |
| Audio connections | N |
| Built-in display | N |
| Cable lock slot | N |
| Cables included | AC,VGA |
| Certification | UL, FCC Class A, cUL, ICES Class A, CE, EAC, VCCI Class A, KCC Class A, RCM, BSMI |
| Console port | VGA |
| Console ports | USB A,VGA (D-Sub) |
| Console USB ports quantity | 3 |
| DC-in jack | N |
| Depth | 120.7 mm |
| Ethernet LAN | N |
| Firmware upgradeable | Y |
| Height | 43.7 mm |
| Keyboard port type | USB |
| LED indicators | Y |
| Material | Metal |
| Maximum resolution | 2048 x 1536 pixels |
| Mouse port type | USB |
| Number of computers controlled | 8 |
| Number of users | 1 user(s) |
| On Screen Display (OSD) | Y |
| Operating relative humidity (H-H) | 20 - 85 % |
| Operating temperature (T-T) | 0 - 50 °C |
| Package type | box |
| Power consumption (typical) | 10 W |
| Power source | AC |
| Push button | Y |
| Quick installation guide | Y |
| Rack capacity | 1U |
| Rack mount kit | Y |
| Rack mounting | Yes |
| Storage relative humidity (H-H) | 5 - 95 % |
| Storage temperature (T-T) | -30 - 70 °C |
| USB 2.0 ports quantity | 4 |
| USB connector type | USB Type-A |
| VGA (D-Sub) ports quantity | 1 |
| Video port type | VGA |
| Weight | 1632 g |
| Width | 432 mm |
| Display connection | Y |
| USB hub | N |
| Cascadable | Y |
| Hot keys | Y |
| Display switch button | Y |
| Product colour | Black |
AV108BND8-400.pdf
Vertiv 1x8 KVM switch with USB, w/OSD, push (touch) button switching, keystroke switching, cascade support, internal power suppl Data Sheet
