Vertiv HMXAMGR24-201
  • Vertiv HMXAMGR24-201
  • Vertiv HMXAMGR24-201
On screen display (OSD) at each user station

Users log in and choose channel connections from an intuitive OSD similar to that of a Digital TV. Users can also use Presets to change channels for multiple screens across multiple receivers.



Remote OSD

The remote OSD allows the user to “push” video and control to another station or to a video wall or projector.



Favorites and hotkey switching

Each user can select their favorite channels within the OSD and allocate a hotkey for fast switching between channels.



Choice of connection modes

Administrators can choose to give users the ability to connect in three modes: View only, Shared or Exclusive. Each permitted mode is then made available within the OSD.



Fast video and USB switching

The HMX Manager provides extremely fast switching time to ensure a quality user experience.



Easy centralized management

Accessed via a web browser, the dashboard gives a real time over-view of system connections and users.



System backups

Backups of the database can be saved internally, externally or emailed automatically. Automatic updates can be scheduled on an hourly, daily or weekly basis.
AC input frequency50/60 Hz
AC input voltage100-240 V
Audio connectionsYes
Built-in displayNo
CertificationCE, FCC
Colour of productBlack
DC-in jackYes
Depth230 mm
DVI-I ports quantity3
Ethernet LANYes
Ethernet LAN (RJ-45) ports1
HDMI ports quantity1
Height44 mm
Input current1.5 A
Keyboard port typeUSB, PS/2
LED indicatorsPower
Mouse port typeUSB, PS/2
Number of computers controlled24
Operating temperature (T-T)0 - 40 °C
Output voltage12 V
Power consumption (typical)60 W
PS/2 ports quantity2
Quick installation guideYes
Rack mounting1U
USB 2.0 ports quantity2
VGA (D-Sub) ports quantity1
Video port typeHDMI/DVI-I
Weight2750 g
Width432 mm
USB 3.0 (3.1 Gen 1) Type-A ports quantity2

HMXAMGR24-201.pdf

Vertiv HMXAMGR24-201 Data Sheet

Download (610.86k)

Similar products

  • Vertiv SC840D-201
    Vertiv SC840D-201
  • Vertiv SVKM120
    Vertiv SVKM120
  • Vertiv AV 3216
    Vertiv AV 3216
  • Vertiv MXT5110
    Vertiv MXT5110

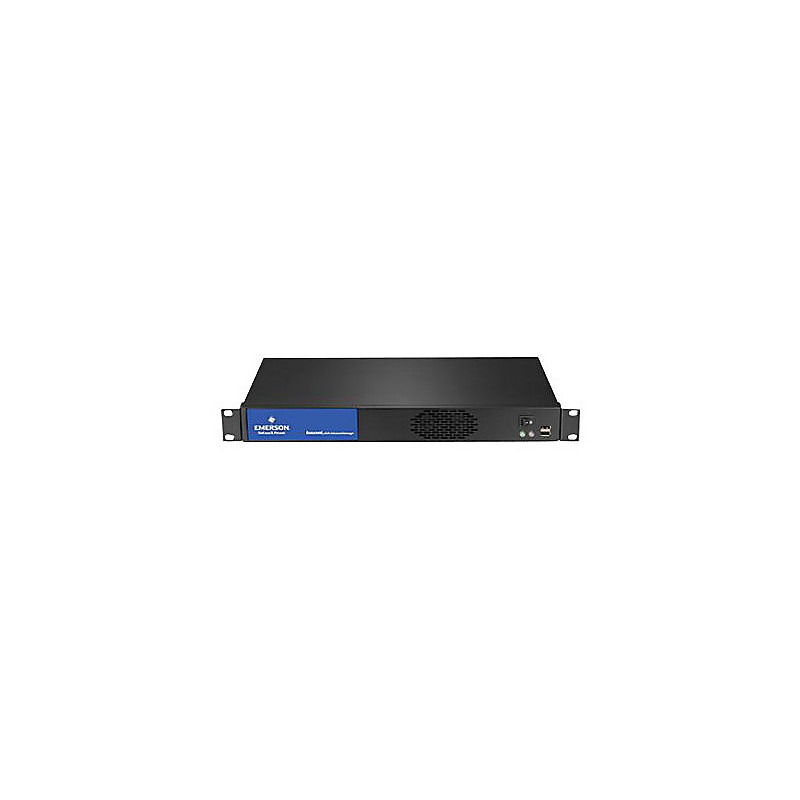

Vertiv HMXAMGR24-201

HMX Advanced Manager, 48.26 cm (19 ") , 1U, 100-240VAC, 50/60Hz, 60W, (country-specific code 201)

HMXAMGR24-201

Out of Stock

£3,062.51
£2,552.09 Ex VAT.
