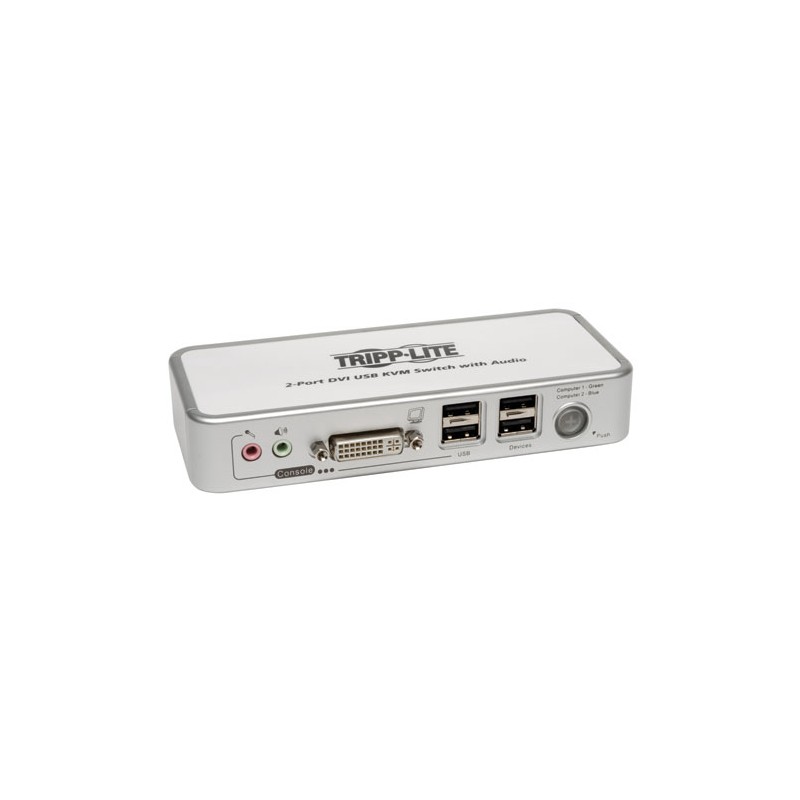

The B004-DUA2-K-R is a 2-Port DVI/USB KVM Switch with audio and USB 2.0 peripheral sharing. It allows you to access, control, boot and reboot two computers from a single USB keyboard, USB mouse, and monitor. Switching between connected computers is quick and simple using keyboard hotkeys or pushbuttons. An independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.



The B004-DUA2-K-R uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor. Whichever you use, full time DDC support provides the necessary EDID information required for optimal video performance on Windows 7 and other operating systems. Compatible with all major operating systems.



● Fast, easy switching via keyboard hotkeys or pushbuttons

● Plug-and-play setup - no software required

● Hot-swap capability allows easy addition or removal of computers without powering down the switch or other computers

● Speaker and microphone connections allow for the sharing of audio components between systems

● Independent audio/mic and USB peripheral switching function allows for an uninterrupted experience. A computer can be printing on a printer connected to one of the USB 2.0 peripheral ports, while you listen to audio from and access another computer; all at the same time.

● Supports 2-Channel Stereo Audio

● Features two USB 2.0 ports for the sharing of USB peripherals (e.g. flash drives, printers, etc.) between the connected computers

● Uses DVI-I technology, allowing for the transmission of a digital (up to 1920 x 1200) or analog (up to 2048 x 1536) signal. A DVI to VGA adapter, such as Tripp Lite's P126-000, is required for conversion to an analog monitor.

● To connect to a HDMI monitor, a DVI to HDMI adapter such as Tripp Lite's P132-000 is required (Audio is not supported when converting from DVI to HDMI).

● Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems

● Supports Microsoft® IntelliMouse® and the scrolling wheel on most mice

● (x2) 1.22 m USB cables and (x2) 1.22 m DVI + Audio KVM cable kits included

● Compatible with all major operating systems





● Control 2 computers with a single DVI monitor, USB keyboard and USB mouse



● Switch ports via keyboard hotkeys or pushbuttons



● Allows for the sharing of audio components between systems; listen to music from one computer while accessing another



● Features two USB 2.0 ports for the sharing of USB peripherals between the connected computers



● (x2) 1.22 m USB cables and (x2) 1.22 m DVI + Audio KVM cable kits included



● Full time DDC support provides the necessary EDID information for optimal video performance on Windows 7 and other operating systems



● Compatible with all major operating systems



System Requirements



● KVM Console: A DVI monitor, USB keyboard, and USB mouse

● Computers: DVI-I port (P118-000 DVI-I to DVI-D Adapter is required for computers with DVI-D ports), and USB Port

● Audio (Optional): A microphone and speakers with 3.5mm Mini-Stereo connectors and a computer with 3.5mm Mini-Stereo ports

● Compatible with all major operating systems



Package Includes





● B004-DUA2-K-R

● (x2) 4 ft. DVI-I + 3.5mm Audio Cable kits

● (x2) 4 ft. USB A-B Device Cables

● Owner's Manual

● External Power Supply with NEMA 1-15P Plug (Input: 100-240V, 50/60Hz, 0.4A Output: 5V, 2A)
