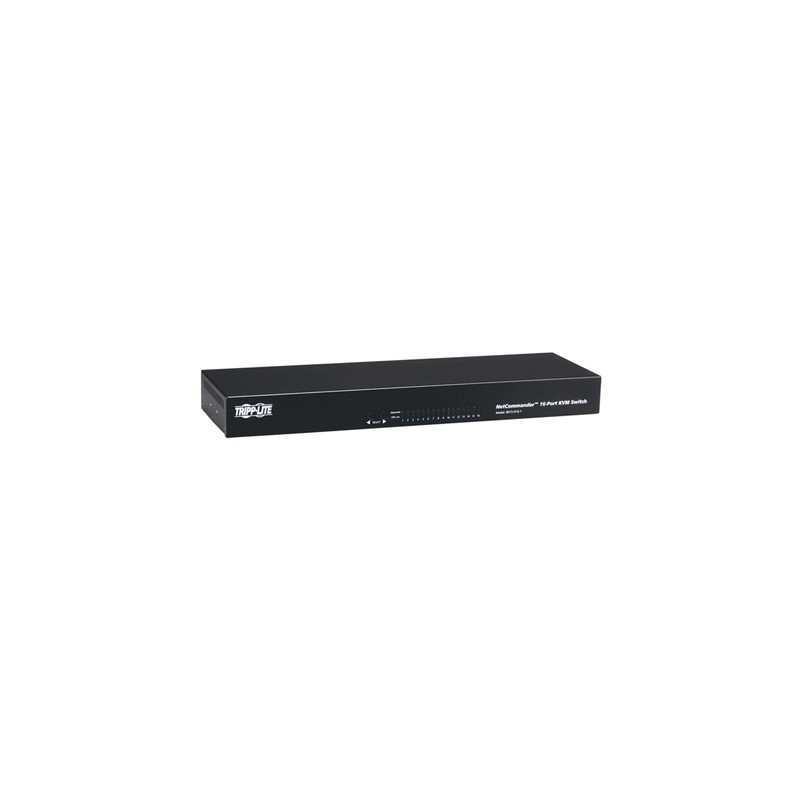

Tripp Lite's 16-Port NetCommander 1U Rackmount Cat5 KVM Switch, is the next generation of our cost-effective, feature rich, KVM switches. It's sleek, 1U design and compact size, features RJ45 connection ports that utilize inexpensive Cat5 patch cables, reducing the amount of cable clutter normally found with traditional KVM cabling. Easily switch between CPU's with Push Buttons, Hot-Key commands, or built-in On Screen Display (OSD) menu function. Cascadability allows connection to up to 256 computers. Compatible with PS/2 and USB computers, VGA, SVGA, or XGA monitors, as well as all major operating systems.Constructed of heavy-duty steel housing.



● Expandable - Cascade a second level of KVM switches to control up to 256 servers from a single station

● Extend distance between computer and switch up to 30.5 m

● Rack mountable sleek, 1U space saving KVM switches

● Innovative CAT5 technology eliminate cable clutter at the rack

● Multi-layer security protects your corporate data

● Easy server management choice of On Screen Display, Hot-key,or push button control

● Multi-platform - PS/2, SUN, and USB support

● To convert DisplayPort or HDMI computers to VGA, use Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

● Easily add IP functionality with Tripp Lite Model B051-000

● Add Tripp Lite Model B021-000-17 for space saving, in-the-rack, LCD, Keyboard and Mouse.

● Compact Size: 17"W x 5"D x 1.75"H

● Video Resolution: 1600x1200@75Hz

● Internal Power Supply

● Compatible with all major operating systems

● Constructed of heavy-duty steel housing



● 16 RJ45 Ports utilize inexpensive Cat5 patch cables

● Expandable - Cascade a second level of KVM switches to control up to 256 servers from a single station

● 3 ways to switch between servers - Push buttons, Hot-Keys, On Screen Display menu

● Supports PS2 and USB CPUs

● 1U Rackmountable - includes mounting hardware

● Compatible with all major operating systems



System Requirements



● Computers: The Tripp Lite B078-101-USB-1 or B078-101-PS2 Server Interface Module must be used to connect a computer/server

● For computers with Displayport or HDMI, change to VGA using Tripp Lite adapters P134-06N-VGA-V2 or P131-06N. Maximum video resolutions using adapters may vary.

● Compatible with all major operating systems



Package Includes



● 16-Port NetCommander 1U Rackmount Cat5 KVM Switch

● 6-ft Power Cord

● 6-ft Serial Cable

● Rackmount Bracket kit
