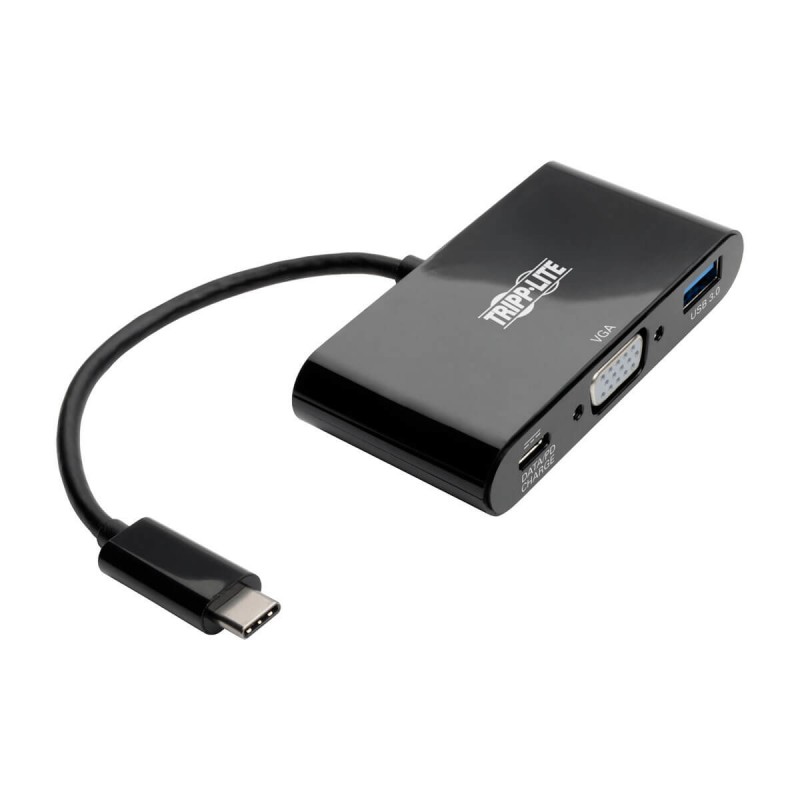

USB 3.1 Type-C Mini Dock Connects to Your Device’s USB-C or Thunderbolt 3 Port



This USB 3.1 to VGA adapter helps you transmit video from your tablet, laptop, Chromebook, MacBook, smartphone or PC to a DVI-enabled television, monitor or projector. It’s ideal for transmitting 1080p video to a large display, adding a thumb drive or other USB peripheral, and powering and charging a PD Charging-compliant mobile device—all at the same time.



Supports USB DisplayPort Alternate Mode for Transmitting Video Signals



With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.



Transmits Crystal-Clear 1080p Video to a VGA Display



To send high-definition video to a VGA television, projector or monitor, connect the VGA port to the display using a VGA cable (sold separately). The VGA port supports HD video resolutions up to 1920 x 1080 (1080p) at 60 Hz.



Connects Keyboards, Thumb Drives and Other USB Peripherals



The USB-A port accepts USB peripherals, such as a flash drive, mouse, keyboard or printer, and supports fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps. It is also backward compatible with previous USB generations, so you can continue using older peripherals while getting high-speed performance from new devices.



Charges the Connected Laptop, Smartphone or Other Device



The USB-C Power Delivery (PD) port provides power and charging to the PD Charging-compliant device (such as a MacBook, Chromebook or Android smartphone) the USB-C mini dock is connected to. Connect the device’s AC wall charger to the USB-C PD port, which supports power input up to 60W. This USB-C port is also capable of data transfer.



Built-In USB-C Cable Connects in Either Direction



Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.



Ready to Use Right Out of the Package



The plug-and-play Thunderbolt 3 and USB to VGA cord requires no software, drivers or external power. It’s about the size of a credit card, making it easy to carry in a pocket, briefcase or laptop bag for connecting on the go.



3-Year Warranty and Environmentally Responsible Design



The U444-06N-VUB-C comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.



● Transmits video signals from sources supporting USB DisplayPort Alt Mode

● Delivers HD picture quality at resolutions up to 1920 x 1080 (1080p) @ 60 Hz

● Supports USB 3.1 Gen 1 speeds up to 5 Gbps to ensure fast data transfers

● Reversible USB-C plug connects in either direction for immediate no-fuss use

● Easy installation with plug-and-play operation—no software required



System Requirements



● Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode

● Display device with VGA input (VGA port)



Package Includes



● U444-06N-VUB-C USB-C to VGA Adapter w/USB-A Hub and PD Charging - USB 3.1, Thunderbolt 3, 1080p, Black

● Owner’s manual
