USB-C Dock Turns Your Device’s USB-C or Thunderbolt 3 Port into a Multiport Workstation



The U442-DOCK13-S expands the potential of your tablet, laptop, Chromebook, MacBook, smartphone or PC’s USB-C or Thunderbolt 3 port. It’s ideal for connecting to a wired Gigabit Ethernet network, transmitting digital audio and video to a large display, adding a thumb drive or other USB peripheral and more—all at the same time.



Supports USB DisplayPort Alternate Mode for Transmitting Audio/Video Signals



With a source device that also supports USB DisplayPort Alt Mode, you can extend video from your primary display to another, duplicate the same video on both displays, or change the second display to your primary.



Transmits Crystal-Clear 4K Video and Digital Audio



To send digital audio and Ultra High Definition video to a 4K-ready HDMI television, projector or monitor, connect the corresponding port to the display using an HDMI cable (sold separately). The HDMI port supports UHD video resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz. A DVI display may also be connected using an HDMI to DVI adapter (adapters sold separately).



Accesses a Wired Gigabit Ethernet Network



The RJ45 port offers access to a Gigabit Ethernet network when no Wi-Fi is available or when a wired connection offers faster speeds. Connect using a UTP cable (sold separately), and enjoy true 10/100/1000 Mbps Ethernet speeds for fast data transfers.



Connects Keyboards, Thumb Drives and Other USB Peripherals



The USB-A and USB-C hub ports accept up to two USB peripherals, such as flash drives, mice, keyboards and printers. They support fast USB 3.1 Gen 1 data transfer rates up to 5 Gbps and are backward compatible with USB 2.0 and USB 1.1 devices.



Built-In USB-C Cable Connects in Either Direction



Connect the reversible USB-C plug to your source device’s USB-C or Thunderbolt 3 port. The fumble-free USB-C plug connects in either direction to ensure fast, easy connection every time.



Ready to Use Right Out of the Package



The plug-and-play USB Type-C dock requires no software, drivers or external power. The compact unit fits easily into a pocket, briefcase or laptop bag for connecting on the go. It automatically resumes operation from hibernation and suspend modes. If additional power is required, the 5V DC power jack is compatible with power supplies equipped with a 3.5 x 1.35 x 9.5 millimeter output plug, a positive tip and a negative sleeve.



3-Year Warranty and Environmentally Responsible Design



The U442-DOCK13-S comes with a 3-year warranty. It’s manufactured in compliance with strict RoHS specifications, reflecting Tripp Lite’s commitment to environmental responsibility.



● Transmits audio/video signals from sources supporting USB DisplayPort Alt Mode

● Delivers UHD picture quality at resolutions up to 3840 x 2160 (4K x 2K) @ 30 Hz

● USB-A/USB-C ports transfer data from thumb drives or printers at speeds up to 5 Gbps

● Connects you to a wired Ethernet network when no Wi-Fi is available

● Easy installation with plug-and-play operation—no software required



System Requirements



● Source device with USB-C or Thunderbolt 3 port that supports USB DisplayPort Alternate Mode

● Display device with DVI* or HDMI input

● Not for use with Thunderbolt monitors

*Requires adapter (sold separately)



Package Includes

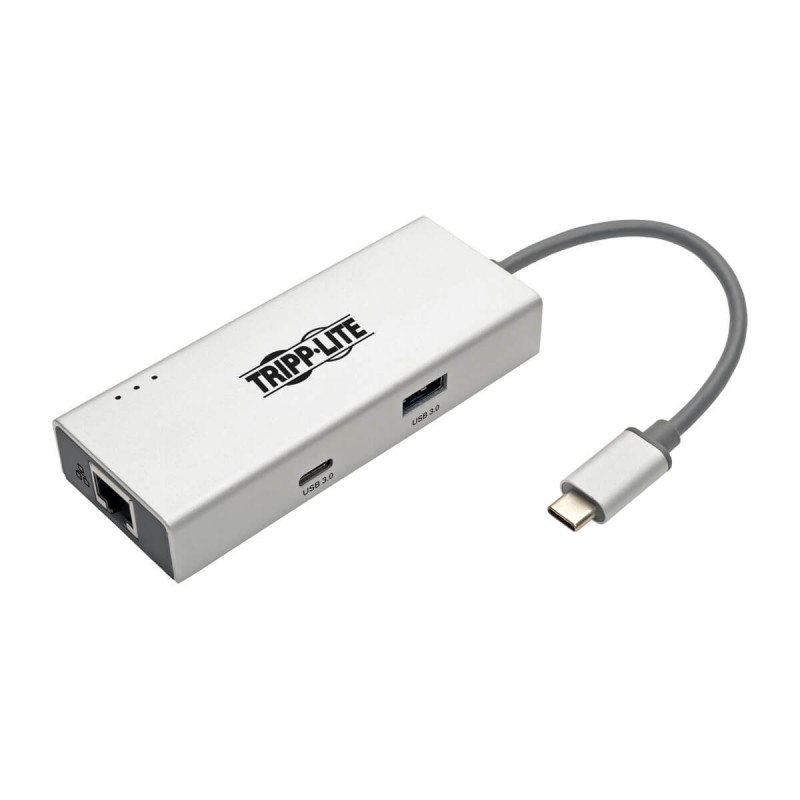

● U442-DOCK13-S USB-C Docking Station, 4K, HDMI, Thunderbolt 3, Gb Ethernet– 30 Hz, Silver

● Owner’s manual
