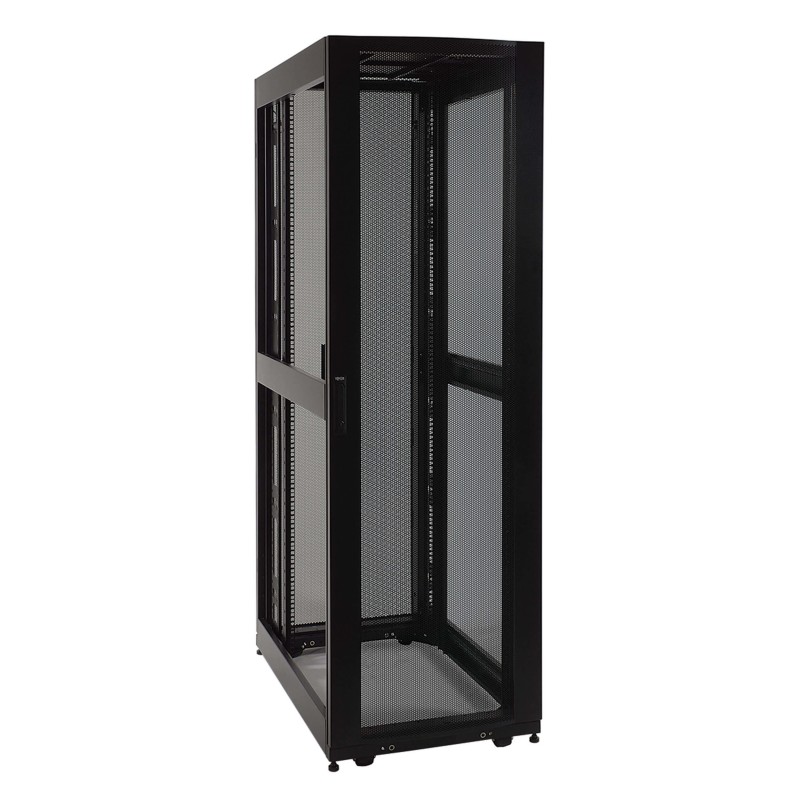

Standard-Depth 47U Server Cabinet Accommodates 19 in. Rack Equipment

This SmartRack® 47U rack enclosure is designed for network wiring closets, retail locations, classrooms, back offices and other areas with essential rack-mount IT equipment. Constructed from heavy-duty steel with a durable black powder-coated finish, the SRX47UBEXP has a maximum stationary load capacity of 1360 kilograms and a maximum rolling load capacity of 1020 kilograms.



Keeps Important Equipment Secure

The reversible front door and split rear doors lock securely to help prevent damage, tampering or theft. The doors and top panel are designed for quick release, making it easy to access connected equipment and cabling with little effort. Convenient top access ports and an open bottom allow easy cable routing through the cabinet. The vented doors allow generous airflow from front to rear to keep your equipment cool and functioning at their peak.



Easy Enclosure and Equipment Installation

This 47U server rack comes fully assembled for quick and easy deployment with pre-installed casters that let you maneuver it over a level, smooth, stable surface and through a standard two-meter doorway into position, where it can be stabilized by adjusting the levelers. Four mounting rails adjust in 6.35-millimeter increments to accommodate equipment up to 850 millimeters deep. Toolless 0U mounting rails allow quick installation of up to four compatible PDUs and vertical cable managers.



Designed for Baying Multiple Enclosures in a Row

This expansion model comes without side panels for baying with other rack cabinets in a row. Integrated baying tabs make it easy to combine multiple units. This rack is also compatible with hot aisle/cold aisle configurations. Center-to-center width can be set at 600 millimeters to match standard data-center floor tiles.



Meets Payment Card Industry Standards

The SRX47UBEXP provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance. This is essential for companies that process, store and/or transmit credit card information.



Typical Application

● Store and organize rack-mount equipment in a network closet, data center or other area where you need components to be secure



● 47U rack constructed from powder-coated steel that stands up to tough environments

● Front and split rear doors lock securely to help prevent damage, tampering or theft

● Ships fully assembled for quick deployment on pre-installed casters

● Comes without side panels for easy baying with multiple rack cabinets in a row

● Mounting rails accept standard rack equipment up to 850 mm deep



Package Includes

● SRX47UBEXP 47U Server Rack

● (2) Keys

● (50) M6 screws

● (50) M6 washers

● (50) M6 cage nuts

● Owner's manual
