Tripp Lite SmartRack 6U Wall-Mount Standard-Depth Rack Enclosure Cabinet, White
  • Tripp Lite SmartRack 6U Wall-Mount Standard-Depth Rack Enclosure Cabinet, White
  • Tripp Lite SmartRack 6U Wall-Mount Standard-Depth Rack Enclosure Cabinet, White
  • Tripp Lite SmartRack 6U Wall-Mount Standard-Depth Rack Enclosure Cabinet, White
  • Tripp Lite SmartRack 6U Wall-Mount Standard-Depth Rack Enclosure Cabinet, White
  • Tripp Lite SmartRack 6U Wall-Mount Standard-Depth Rack Enclosure Cabinet, White

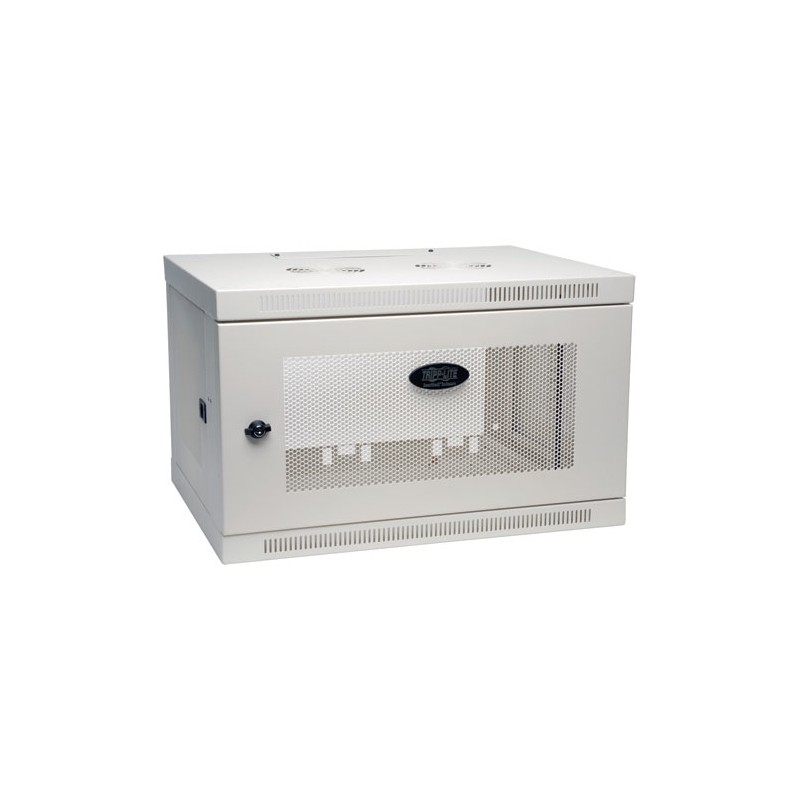

The SRW6UW is a white 6U Wall-Mount Rack Enclosure Cabinet designed to integrate wall-mounting, easy equipment access, and cable management in IT network applications with limited floor space. Ventilated front door and side panels allow generous airflow to keep equipment operating safely. Adjustable front mounting rails have both square mounting holes (default position) and tapped holes to accommodate up to 6U of standard 19" rackmount equipment. Supports up to 200 lbs of equipment. A sturdy wall-mount bracket allows the cabinet to quickly be hung on the wall. The SRW6UW comes with a 5-year product warranty.

- 6U wall-mounted enclosure in white

- Ideal for VoIP wiring closets and education venues that require security

- Adjustable mounting depths up to 17" by 2 front vertical rackmount rails

- Dual threaded rails

- Ventilated front door and side panels for increased airflow

- Locking, reversible front door

- Locking, removable side panels

- Fully assembled for quick installation

- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance
CertificationEIA-310-E, RoHS
Colour of productWhite
Depth444.5 mm
Form factor6U
Height368.3 mm
ManualYes
Package depth520.7 mm
Package height444.5 mm
Package weight14514 g
Package width673.1 mm
TypeWall mounted rack
Wall mounting kitYes
Weight13154 g
Width596.9 mm
Maximum weight capacity90.7 kg

SRW6UW.pdf

Tripp Lite SmartRack 6U Wall-Mount Standard-Depth Rack Enclosure Cabinet, White Data Sheet

Download (523.18k)
