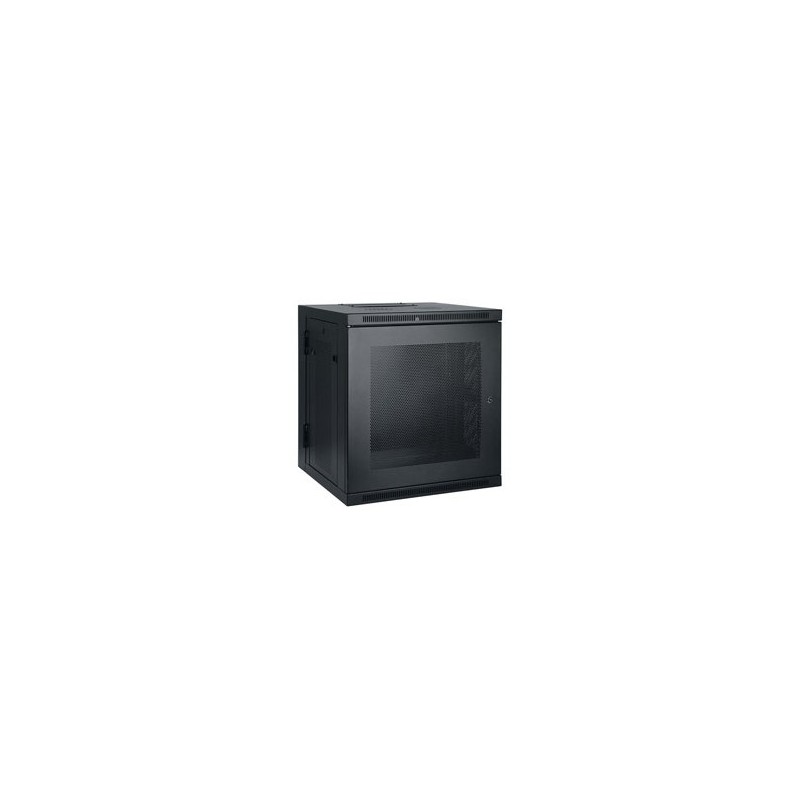

The SRW12US SmartRack 12U Low-Profile Switch-Depth Wall-Mount Rack Enclosure Cabinet is designed to house EIA-standard 19-inch rack equipment in network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way. Constructed from heavy-duty steel with a durable black powder-coated finish, the cabinet has a maximum load capacity of 90 kgs (200 lbs)



The cabinet swings away from the wall on a sturdy hinge, allowing easy back-door access to equipment and cabling during installation and maintenance. The doors and side panels lock securely to help prevent damage, tampering or theft. The front, top, bottom and removable side panels are vented, which allows air to flow freely and keep equipment cool. The reversible doors can open left or right by rotating the cabinet 180° before mounting. Convenient top and bottom ports allow easy cable routing.



The SRW12US comes fully assembled and ready to mount to the wall, or use Tripp Lite’s optional SRCASTER rolling caster kit to make it a mobile rack. Square and threaded mounting holes and numbered rack spaces make equipment installation easy. The vertical mounting rails adjust in 7/8-inch increments to accommodate equipment up to 20.5 inches deep, such as network switches and patch panels.



Saves Valuable Workspace



● Perfect for network wiring closets, retail locations, classrooms, back offices and other areas with limited floor space where you need equipment to be secure, organized and out of the way

● Houses EIA-standard 19 in. rack equipment in 12U of space

● Maximum load capacity of 90 kgs (200 lbs)



Hinged Cabinet for Convenient Access



● Swings away from the wall to allow easy back-door access to equipment and cabling during installation and maintenance

● Rotate cabinet 180° before mounting to open reversible doors left or right



Keeps Important Equipment Secure



● Side panels and doors lock securely to help prevent damage, tampering or theft

● Vented panels allow generous airflow that keeps equipment cool

● Convenient ports with removable covers allow cable routing through top and bottom



Easy Enclosure and Equipment Installation



● Ships fully assembled for quick installation

● Mounts to wall or rolls on floor with Tripp Lite’s optional SRCASTER caster kit

● Wall-mounting holes spaced 16 in. apart for standard wall stud placement

● Vertical mounting rails adjust in 7/8 in. increments to accommodate equipment up to 20.5 in. deep, such as network switches and patch panels

● Rails adjust easily—unscrew them, slide them to desired depth, and screw them back in

● Rails support square-hole or threaded-hole mounting

● Rack spaces numbered for easy reference



Meets Payment Card Industry Standards



● Provides physical equipment and media security required for PCI DSS (Payment Card Industry Data Security Standard) compliance
