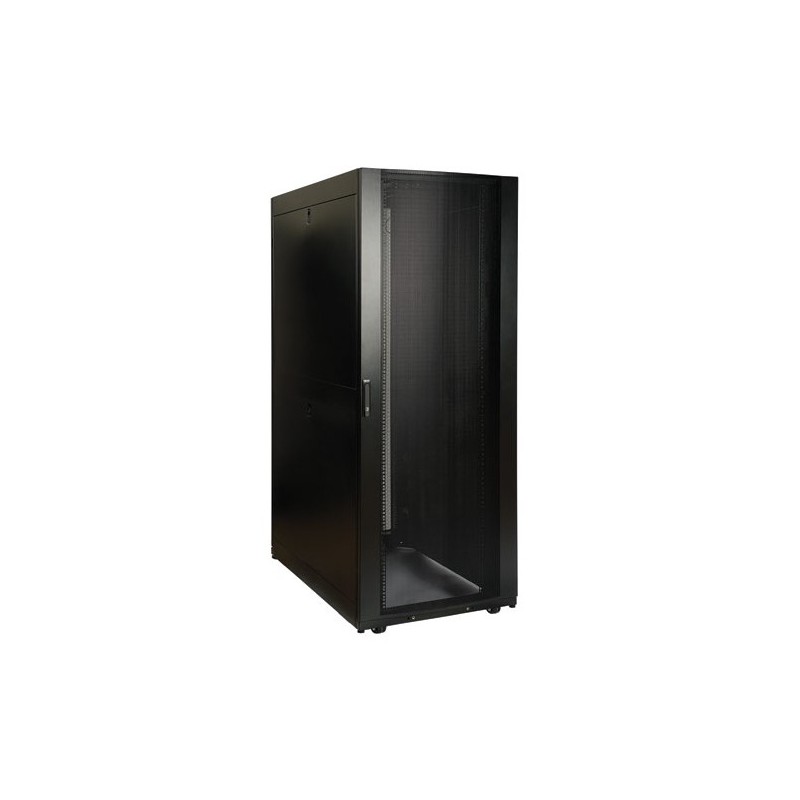

A DEEP and WIDE version of our standard 42U SmartRack. This enclosure is 1200mm deep (48") compared to the standard 1070mm deep (42"). This extra depth allows for high density equipment installations. It allows extra space for moving the cable management back as well as providing space for mounted equipment that has hot-swap, removable power supplies out the back of the enclosure. It is also 750mm wide (30") compared to the standard 600mm wide (24"). This extra width allows for high density equipment installations. It allows cable management and PDU mounting off to the sides of the rack in order to keep these items out of the airflow for proper cooling. All features from the standard SmartRacks carry over to these wide racks to allow cross usage of accessories.

- 48" (1200mm) depth for extra space need for mounting deep equipment

- 30" (750mm) width for optimizing airflow through cabinet

- Ships fully assembled

- 1360 kgs (3000 lbs) stationary / 1020 kgs (2250 lbs) rolling load capacity

- Locking, removable, reversible front and rear doors; Locking, removable side panels keyed alike with doors

- Pre-installed casters and leveling feet; Rolls through standard 2.13 m (7-ft.) doorway

- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance



- SR42UBDPWD Rack Enclosure

- (4) Side panels

- (4) Side panel locks

- (2) Door & side panel keys

- (50) M6 screws

- (50) M6 cage nuts

- (50) M6 washers

- (1) Allen Wrench

- Owner's Manual



- Ships fully assembled for rapid deployment and roll into place on heavy-duty pre-installed casters.

- Front and rear sets of equipment mounting rails adjust in 1/4" increments. Adjustment is quick and convenient. The easy-view depth index ensures consistent rail placement without requiring time-consuming measurements.

- Toolless accessory mounting rails (2 rails per enclosure) include slots for quick installation of compatible PDUs and vertical cable managers. Mounting slots are arranged in an industry-standard pattern compatible with a wide variety of accessories. Each rail can accommodate two vertical PDUs or cable managers side-by-side (four items per enclosure).

- Enclosure includes mounting hardware of 50 pieces of M6 cage nuts and 50 pieces of M6 screws

- Textured powder coat finish for tough resistance to environmental concerns such as deployment in warehouses.

- Massive front to rear ventilation capacity. 65+% open space in door perforation pattern meets or exceeds server manufacturer requirements.

- Maximum usable internal depth of 42 inches/1070mm (front to rear rail).

- Weight ratings of 1360 kgs (3000 lbs) stationary and 1020 kgs (2250 lbs) rolling.

- Front door is locking, reversible and removable.

- Rear doors are locking and reversible. Split rear door design reduces clearance requirements for service entry allowing the enclosure to be placed closer to a wall.

- Locking removable side panels are 'half size' to make them smaller and lighter improving ease of installation and servicing. Two side panels per side (4 panels total). Side panels are keyed alike to the front and rear doors.

- Built in baying tabs allow enclosures to be combined securely in rows. Center-to-center width can be set at 750mm or 30".

- Casters are pre-installed and support a rolling load capacity of 1020 kgs (2250 lbs), allowing the enclosures to be pre-configured and rolled to the final installation location. Casters are removable.

- Leveling feet extend to allow enclosure to be positioned on uneven floors. Levelers are removable.

- Compact design allows the enclosure to roll through standard height commercial doorways.

- Convenient grounding system. All components are grounded to the enclosure frame which includes multiple connections for facility ground. Front and rear doors include quick-release ground wires.

- Open bottom for cable access.

- Top panel has generous cable access holes. Panel can be removed toollessly in seconds without having to disconnect cables first.

- Included stabilizing brackets are used for shipment and can be reattached at the bottom of the enclosure frame on the inside or outside of the rack.

- Meets all enclosure requirements towards PCI DSS (Payment Card Industry Data Security Standard) Compliance

- Compatibility with airflow optimization accessories as well as cable management accessories.
