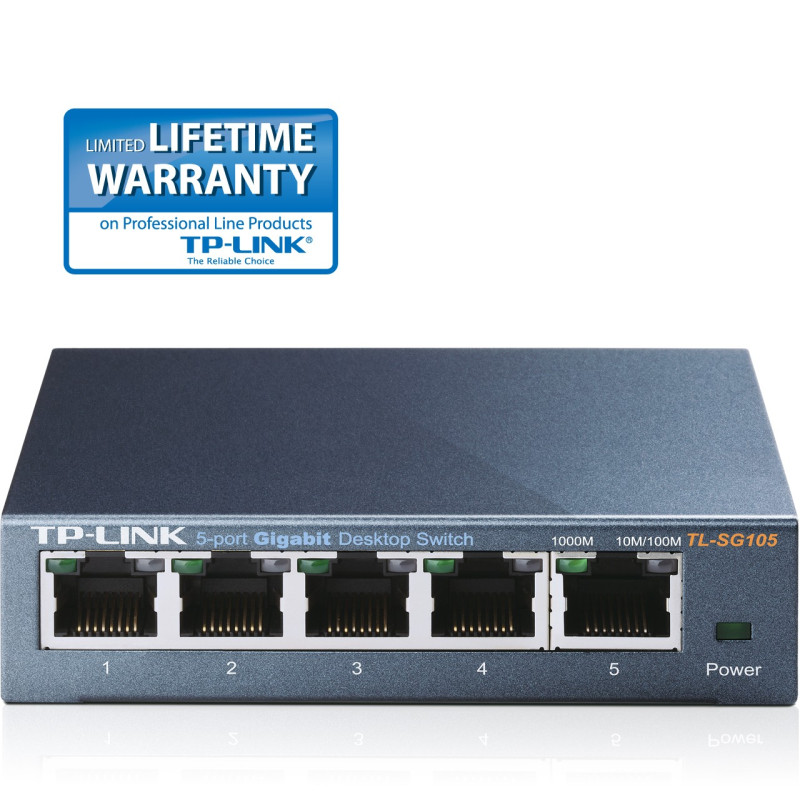

TP-Link TL-SG105 5-Port Gigabit Desktop Switch
  • TP-Link TL-SG105 5-Port Gigabit Desktop Switch
  • TP-Link TL-SG105 5-Port Gigabit Desktop Switch
  • TP-Link TL-SG105 5-Port Gigabit Desktop Switch
  • TP-Link TL-SG105 5-Port Gigabit Desktop Switch
  • TP-Link TL-SG105 5-Port Gigabit Desktop Switch
What This Product Does

The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.



Gigabit Switch

Featured with 5x 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.



Go Green With Your Ethernet

You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.

- Power down Idle Ports

When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use.

- Power Budget According to Cable Length

Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
10G supportNo
AC input frequency50/60 Hz
AC input voltage100-240 V
Auto MDI/MDI-XYes
Basic switching RJ-45 Ethernet ports quantity5
CertificationCE, FCC, RoHS
Colour of productBlack
Connectivity technologyWired
DC-in jackYes
Depth98 mm
Ethernet LANYes
Ethernet LAN data rates10,100,1000 Mbit/s
Flow control supportYes
Full duplexYes
Height25 mm
IGMP snoopingYes
Jumbo frames supportYes
LED indicatorsYes
ManagementUnmanaged
ManualYes
Maximum data transfer rate2 Gbit/s
MountingDesktop
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 40 °C
PoENo
Power LEDYes
Power over Ethernet (PoE)No
Quality of Service (QoS) supportYes
RJ45 Ports Qty5
StackableNo
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Store-and-forwardYes
Supported data transfer rates10/100/1000Mbps
Switch SpeedGigabit
Switch typeUnmanaged
Switching protocolsCSMA/CD
User guideYes
Wi-FiNo
Width99.8 mm

John k - 15/11/2023

It’s a good, basic switch for non PoE use. It’s ideal for extending wired access to your router.

Michael Y - 03/12/2021

Great product and does the job perfectly.
