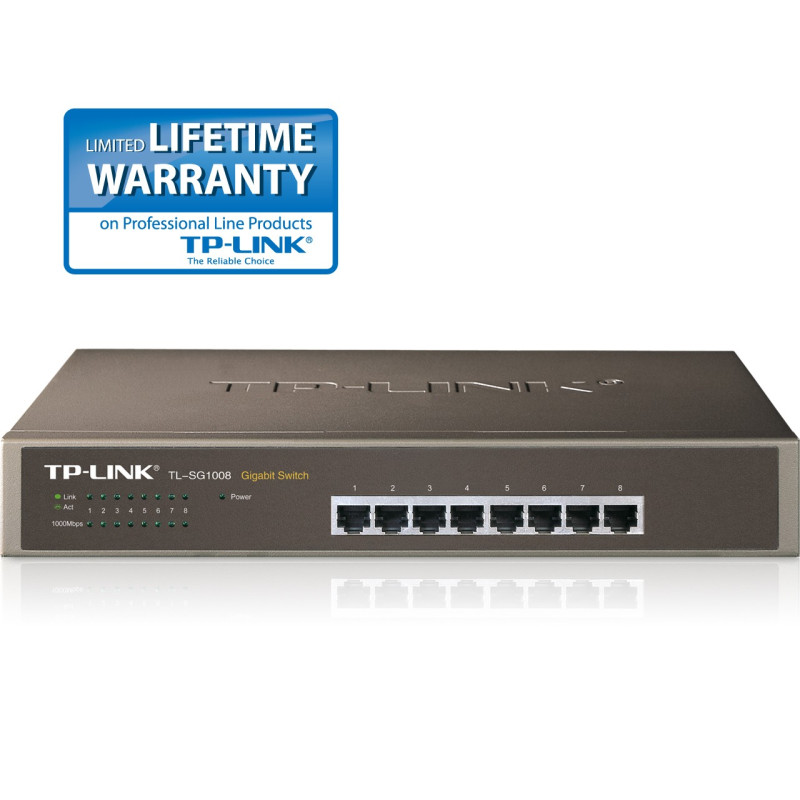

The TL-SG1008 is a high performance Smart Gigabit switch that provides an ideal solution for workgroup or department Gigabit applications. With 8 10/100/1000BASE-T Gigabit Ethernet ports with AUTO-MDIX provides full bandwidth (Maximum 2000Mbps in full duplex mode). Easy-to-view LED indicators are supported for cable installation and normal operational diagnostics. The switch can be used a desktop or in a rack-mount.
| Auto MDI/MDI-X | Yes |
| Bandwidth | 16 Gbit/s |
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Certification | FCC, CE, RoHS |
| Connectivity LEDs | Yes |
| Connectivity technology | Wired |
| Copper ethernet cabling technology | 1000BASE-T,100BASE-TX,10BASE-T |
| Dimensions (W x D x H) | 248.9 x 157.5 x 43.2 mm (9.8 x 6.2 x 1.7 ") |
| Dimensions (WxDxH) | 294 x 180 x 44 mm |
| Ethernet LAN (RJ-45) ports quantity | 8 |
| Flow control support | Yes |
| Full duplex | Yes |
| Input frequency | 50 - 60 Hz |
| Input voltage | 100 - 240 V |
| MAC address table | 8000 entries |
| Management | Unmanaged |
| Maximum data transfer rate | 1 Gbit/s |
| Mounting | Desktop |
| Networking features | Gigabit Ethernet |
| Networking standards | IEEE802.3, 802.3u, 802.3ab, 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating temperature range (T-T) | 0 - 40 °C |
| PoE | No |
| Ports quantity | 8 |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) support | No |
| RJ45 Ports Qty | 8 |
| Source data-sheet | Icecat.biz |
| Stackable | No |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage relative humidity range | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Supported data transfer rates | 10/100/1000 Mbps |
| Supported network protocols | CSMA/CD, TCP/IP |
| Switch Speed | Gigabit |
| Switch type | Unmanaged |
| Dimensions (W x D x H) (imperial) | 9.8 x 6.2 x 1.7 " |
