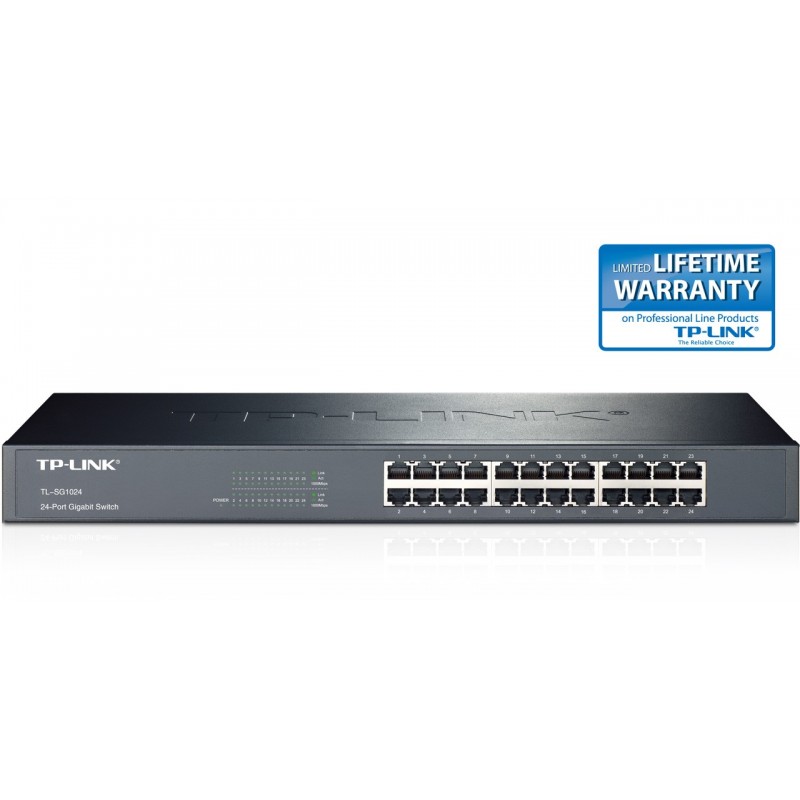

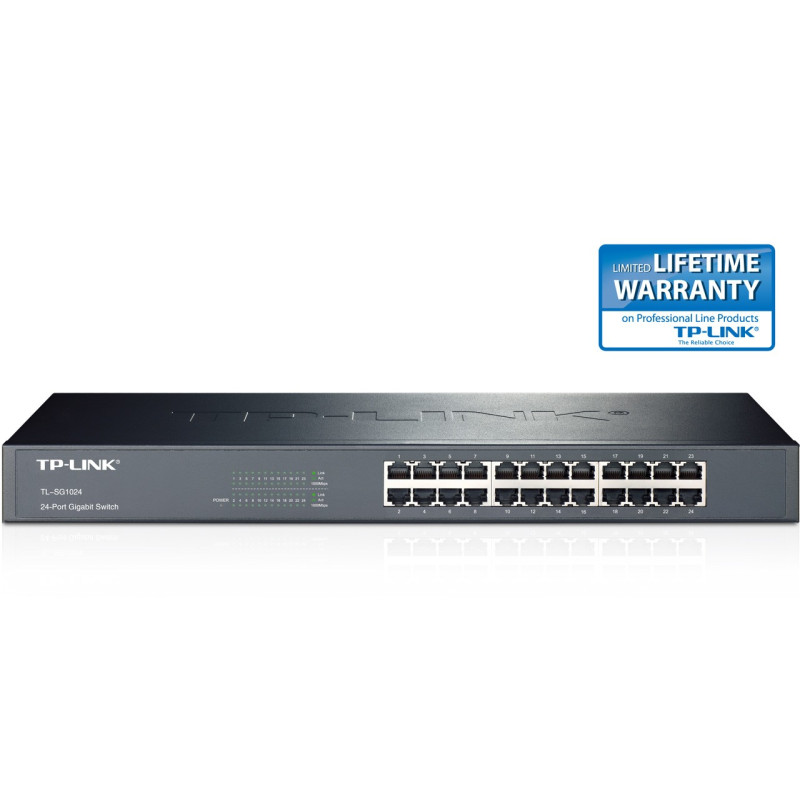

TP-LINK TL-SG1024 24-Port Gigabit Switch
  • TP-LINK TL-SG1024 24-Port Gigabit Switch
  • TP-LINK TL-SG1024 24-Port Gigabit Switch
The TL-SG1024 is specially designed for Ethernet (10Mbps), Fast Ethernet (100Mbps) and Gigabit Ethernet (1000Mbps) with seamless link. Each port supports up to 2000Mbps throughput in full duplex mode. It is the perfect choice to improve the performance of Offices and workgroup networks.
Auto MDI/MDI-XYes
Bandwidth48 Gbit/s
Basic switching RJ-45 Ethernet ports quantity24
Connectivity LEDsYes
Connectivity technologyWired
Copper ethernet cabling technology1000BASE-T,100BASE-TX,10BASE-T
Dimensions (W x D x H)439.4 x 180.3 x 43.2 mm (17.3 x 7.1 x 1.7 ")
Dimensions (WxDxH)440 x 180 x 44 mm
Ethernet LAN (RJ-45) ports quantity24
Full duplexYes
ManagementUnmanaged
Maximum data transfer rate1 Gbit/s
MountingRackmount
Networking standardsIEEE802.3, 802.3u, 802.3ab, 802.3x
Operating relative humidity (H-H)10 - 90 %
Operating relative humidity range10 - 90 %
Operating temperature (T-T)32 - 104 °F
Operating temperature range (T-T)0 - 40 °C
PoENo
Ports quantity24
RJ45 Ports Qty24
Source data-sheetIcecat.biz
StackableNo
Storage relative humidity (H-H)5 - 90 %
Storage relative humidity range5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Storage temperature range (T-T)-40 - 70 °C
Store-and-forwardYes
Supported data transfer rates10/100/1000 Mbps
Supported network protocolsCSMA/CD, TCP/IP
Switch SpeedGigabit
Switch typeUnmanaged
Dimensions (W x D x H) (imperial)17.3 x 7.1 x 1.7 "
