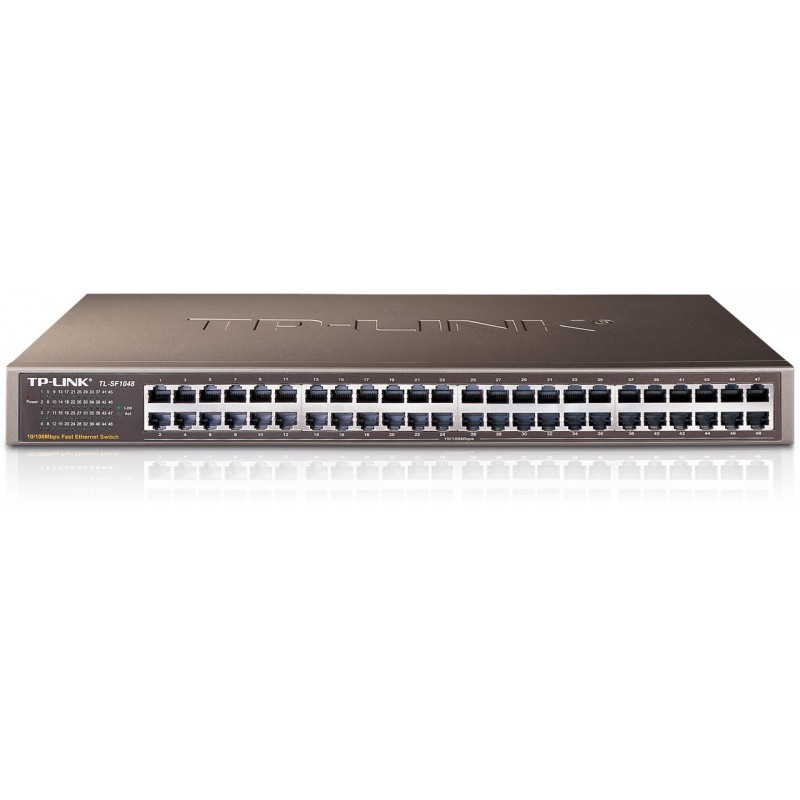

The TL-SF1048 Ethernet Switch provides 48 10/100M Auto-Negotiation RJ45 ports. All RJ45 ports support the Auto-MDI/MDIX function. Every port can works as uplink port or common port. TL-SF1048 Ethernet Switch provides a cost-effective, high performance, non-disruptive, smooth evolution into 100M solution. The Switch delivers superior performance with improving workgroup, network bandwidth, increasing network node, providing greater flexibility, installation convenience.
| 10G support | No |
| Bandwidth | 9.6 Gbit/s |
| Basic switching RJ-45 Ethernet ports quantity | 48 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Colour of product | Grey |
| Compatibility | FCC, CE |
| Connectivity LEDs | Yes |
| Copper ethernet cabling technology | 100BASE-TX,10BASE-T |
| Dimensions (W x D x H) | 439.4 x 259.1 x 43.2 mm (17.3 x 10.2 x 1.7 ") |
| Dimensions (WxDxH) | 440 x 260 x 44 mm |
| Ethernet LAN (RJ-45) ports quantity | 48 |
| MAC address table | 8000 entries |
| Management | Unmanaged |
| Maximum data transfer rate | 0.1 Gbit/s |
| Mounting | Rackmount |
| Networking standards | IEEE 802.3i,IEEE 802.3u,IEEE 802.3x |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature (T-T) | 32 - 104 °F |
| Operating temperature range (T-T) | 0 - 40 °C |
| PoE | No |
| Ports quantity | 48 |
| Power over Ethernet (PoE) | No |
| Power over Ethernet (PoE) support | No |
| Rack mounting | Yes |
| RJ45 Ports Qty | 48 |
| Size | 19 " |
| Source data-sheet | Icecat.biz |
| Stackable | No |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage relative humidity range | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Store-and-forward | Yes |
| Supported data transfer rates | 10/100 Mbps |
| Supported network protocols | CSMA/CD, TCP/IP |
| Switch Speed | 10/100 |
| Switch type | Unmanaged |
| Switching capacity | 9.6 Gbit/s |
| Dimensions (W x D x H) (imperial) | 17.3 x 10.2 x 1.7 " |
