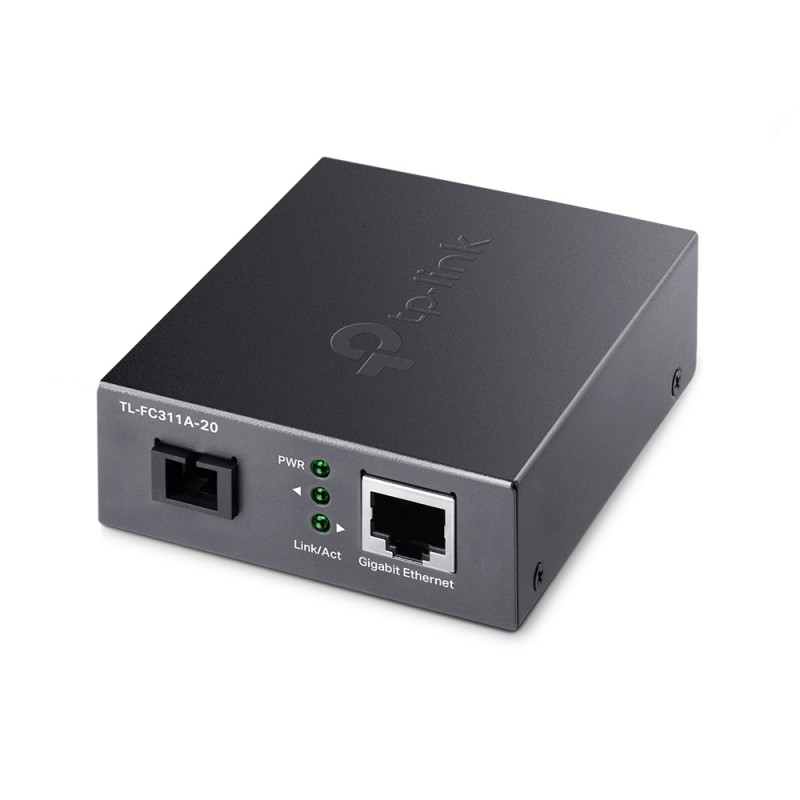

TP-LINK Gigabit WDM Media Converter
  • TP-LINK Gigabit WDM Media Converter
  • TP-LINK Gigabit WDM Media Converter
  • TP-LINK Gigabit WDM Media Converter
  • TP-LINK Gigabit WDM Media Converter
  • TP-LINK Gigabit WDM Media Converter
What This Product Does TL-FC311A-20 is a gigabit media converter, providing a gigabit RJ-45 port and a gigabit SC fiber port, which can convert between electrical and optical signals. And long-distance data transmission through optical fiber can be applied to commercial scenarios such as park security monitoring and wireless networking.How This Product Works TL-FC311A-20 adopts WDM (wavelength division multiplexing) technology, helping send and receive data at a distance of up to 20 km with only a single mode fiber, which saves half of the cable deployment cost for customers. TL-FC311A-20 transmits data at 1550 nm wavelength and receives data at 1310 nm wavelength on optical fiber. Therefore, the terminal device used in conjunction with the TL-FC311A-2 should send data at a wavelength of 1310 nm and receive data at a wavelength of 1550 nm. TP-Link another media converter TL-FC311B-20 is one of the products that can cooperate with TL-FC311A-20.- Other Features Besides, this media converter can be used as a standalone device (no rack required) or used with TP-Link's TL-FC1420 rack for auto MDI/MDI-X in TX port in which duplex mode is automatically negotiated.
AC adapter includedY
Connectivity technologyWired
Data transfer rate1000 Mbit/s
DC-in jackY
Depth73 mm
Ethernet interface typeGigabit Ethernet
Ethernet LAN (RJ-45) ports1
Ethernet LAN data rates10,100,1000 Mbit/s
Fiber mode structureSingle-mode
Fiber optic connectorSC
Fiber ports quantity1
Height27 mm
InternalN
LED indicatorsActivity,Link,Power
ManualY
Maximum data transfer rate1000 Mbit/s
Maximum transfer distance100 m
Networking standardsIEEE 802.3,IEEE 802.3ab,IEEE 802.3i,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 50 °C
Output current0.6 A
Output voltage5 V
Storage relative humidity (H-H)5 - 90 %
Storage temperature (T-T)-40 - 70 °C
Wavelength1550 nm
Width94.5 mm
Wavelength-division multiplexing (WDM)Y
Product colourBlack
Fiber cable diameters supported (core/cladding)9/125 µm

tl-fc311a-20.pdf

TP-LINK Gigabit WDM Media Converter Data Sheet

Download (76.96k)

Similar products

  • TP-LINK 14-Slot Rackmount Media Converter Chassis
    TP-LINK 14-Slot Rackmount Media Converter...
  • TP-LINK 10/100Mbps Multi-mode Media Converter
    TP-LINK 10/100Mbps Multi-mode Media Converter
  • TP-LINK 10/100Mbps Single-mode Media Converter
    TP-LINK 10/100Mbps Single-mode Media...
  • TP-LINK 10/100Mbps WDM Media Converter
    TP-LINK 10/100Mbps WDM Media Converter
  • TP-LINK 10/100Mbps WDM
    TP-LINK 10/100Mbps WDM

TP-LINK Gigabit WDM Media Converter

10/100/1000 Mbps, 9/125 μm single-mode, UTP category 5, 5e 100 m max

TL-FC311A-20

Out of Stock

£34.04
£28.37 Ex VAT.
