- Complies with IEEE 802.3ab and IEEE 802.3z
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 0.5km

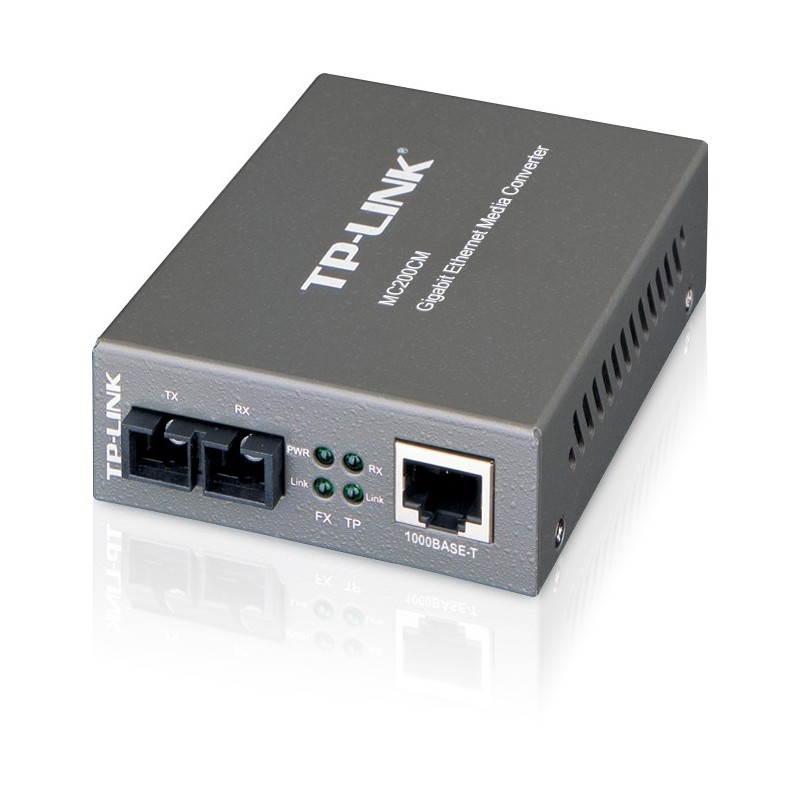

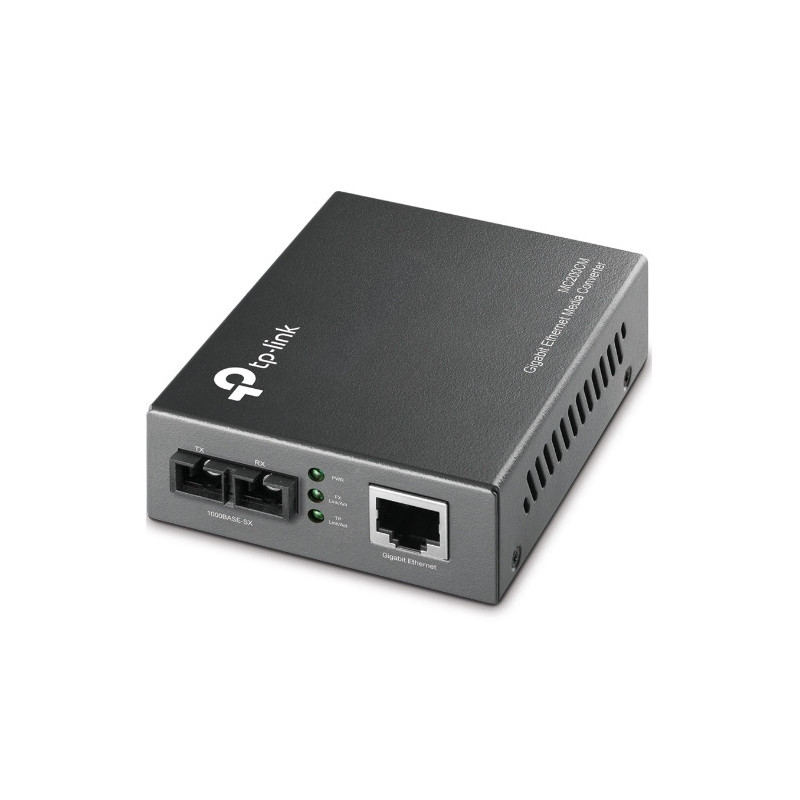

The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
- Provides switch configuration of Force /Auto transfer mode for FX port.
- Extends fiber distance up to 0.5km
The MC200CM is a media converter designed to convert 1000BASE-SX fiber to 1000Base-T copper media or vice versa. Designed under IEEE802.3ab 1000Base-T and IEEE802.3z 1000Base-SX standards, the MC200CM is designed for use with multi-mode fiber cable utilizing the SC-Type connector. The MC200CM supports shortwave (SX) laser specification at a full wire speed forwarding rate. It works at 850nm on both transmitting and receiving data.
Other features of this module include the ability to be used as a stand alone device (no chassis required) or with TP-LINK´s 19´system chassis, Auto MDI/MDI-X for TX port, and front panel status LEDs. The MC200CM will transmit at extended fiber optic distances utilizing multi-mode fiber up to 0.55 kilometers.
| Cabling technology | UTP 5e, 5 |
| Certification | FCC, CE |
| Compliance industry standards | IEEE 802.3ab, IEEE 802.3z, IEEE 802.3x |
| Connectivity technology | Wired |
| Dimensions (WxDxH) | 94.5 x 73 x 27 mm |
| Full duplex | Yes |
| I/O ports | 1x 1000M SC 1x 1000M RJ45 |
| LED indicators | Link |
| Maximum transfer distance | 550 m |
| Operating relative humidity (H-H) | 10 - 90 % |
| Operating relative humidity range | 10 - 90 % |
| Operating temperature (T-T) | 0 - 40 °C |
| Operating temperature range (T-T) | 0 - 40 °C |
| Source data-sheet | Icecat.biz |
| Storage relative humidity (H-H) | 5 - 90 % |
| Storage relative humidity range | 5 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage temperature range (T-T) | -40 - 70 °C |
| Wavelength | 850 nm |
shaun g - 03/12/2019
does what is said on the box
