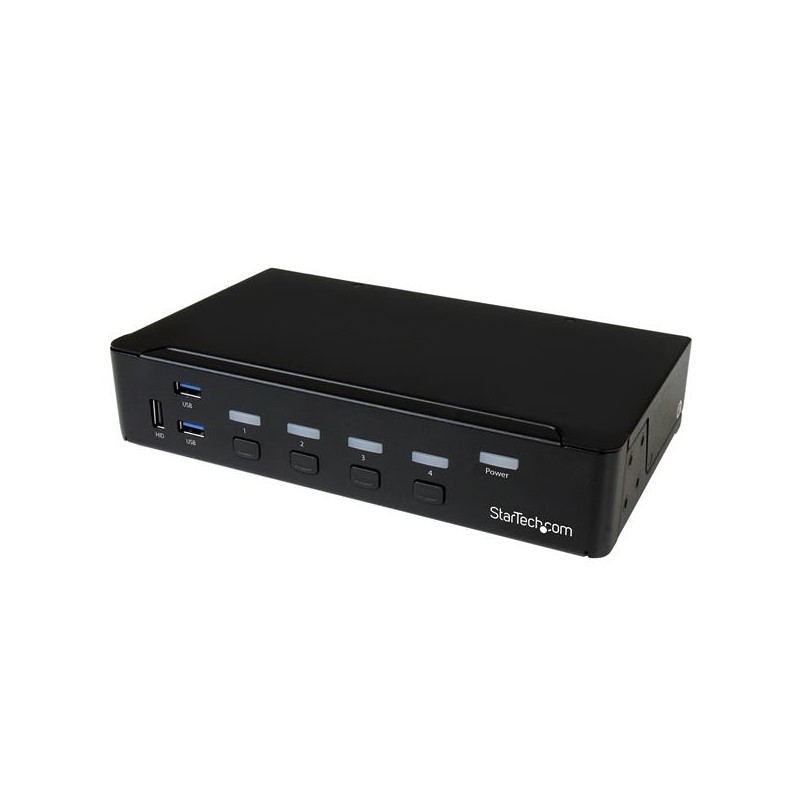

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K
  • StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K
  • StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K
  • StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K
  • StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K
  • StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K
This 4-Port USB 3.0 DisplayPort KVM switch lets you control four DisplayPort (DP) computers with a single monitor, keyboard and mouse. The KVM also features 3.5 mm audio and a built-in 3-port USB 3.0 hub.



Convenient and cost-effective USB 3.0 peripheral sharing

This KVM switch offers a built-in 3-port USB 3.0 hub that's separate from your HID keyboard and mouse, so you can share USB peripheral devices between each connected computer and avoid the expense of separate equipment. The USB 3.0 hub automatically switches your connected USB devices to the selected computer, saving you the hassle of disconnecting and reconnecting your peripherals.



With support for USB 3.0, you can achieve data transfer rates up to 5Gbps, to ensure flawless performance for your USB peripherals - great for quickly transferring data to external USB 3.0 drives.



Astonishing picture quality

Offering support for resolutions up to Ultra HD 4K at 30 Hz, this 4-port DisplayPort KVM switch has the ability to drive large DP displays with ease, making it ideal for graphical applications that require high-resolution video support.



Complete multimedia control

The KVM switch features auxiliary 3.5 mm audio ports that enable you to share independent analog audio, from each of your connected computers, with your desktop speaker set. Independent audio, along with 4K DP video, gives you full multimedia control between different computers, making this KVM perfect for creative professional applications such as video and sound design or editing.



The SV431DPU3A2 is backed by a StarTech.com 2-year warranty and free lifetime technical support.



Rackmount your KVM switch

If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
AC input voltage100-240 V
Audio connectionsYes
Audio supportYes
CertificationCE, FCC, UL, PSE
Colour of productBlack
Compatible power plug typesAU,EU,UK,US
Console ports3.5mm headphone,DisplayPort,USB A
Console USB ports quantity4
Daisy chainNo
DC-in jackYes
Depth220 mm
Ethernet LANNo
Headphone outputs4
Height43 mm
IP controlNo
Keyboard port typeUSB
LED indicatorsLink,Power
Maximum cable length10 m
Maximum resolution3840 x 2160 pixels
Mouse port typeUSB
Number of computers controlled4
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 40 °C
Output current1.5 A
Output voltage12 V
Package depth268 mm
Package height160 mm
Package weight2600 g
Package width191.5 mm
Plug and PlayYes
Plug typeType M
Quick installation guideYes
Rack mountingYes
RoHS complianceYes
Rubber feetYes
Storage temperature (T-T)-10 - 60 °C
USB connector typeUSB Type-A
Video port typeDisplayPort
Weight1062 g
Width130 mm
USB 3.0 (3.1 Gen 1) Type-A ports quantity3
Audio channels2.0
Hot keysYes

SV431DPU3A2.pdf

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K Data Sheet

Download (221.68k)

Similar products

  • StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
    StarTech.com USB VGA KVM Console Extender...
  • StarTech.com 2-port KVM Console Adapter - Laptop-to-Server
    StarTech.com 2-port KVM Console Adapter -...
  • StarTech.com 4-Port HDMI KVM Switch - USB 3.0 - 1080p
    StarTech.com 4-Port HDMI KVM Switch - USB...
  • StarTech.com SV231DPDDUA2
    StarTech.com SV231DPDDUA2

StarTech.com 4-Port DisplayPort KVM Switch - USB 3.0 - 4K

StarTech.com 4-Port DisplayPort KVM Switch - DP KVM Switch with Built-in USB 3.0 Hub for Peripherals - 4K

SV431DPU3A2

In Stock

£494.57
£412.14 Ex VAT.
