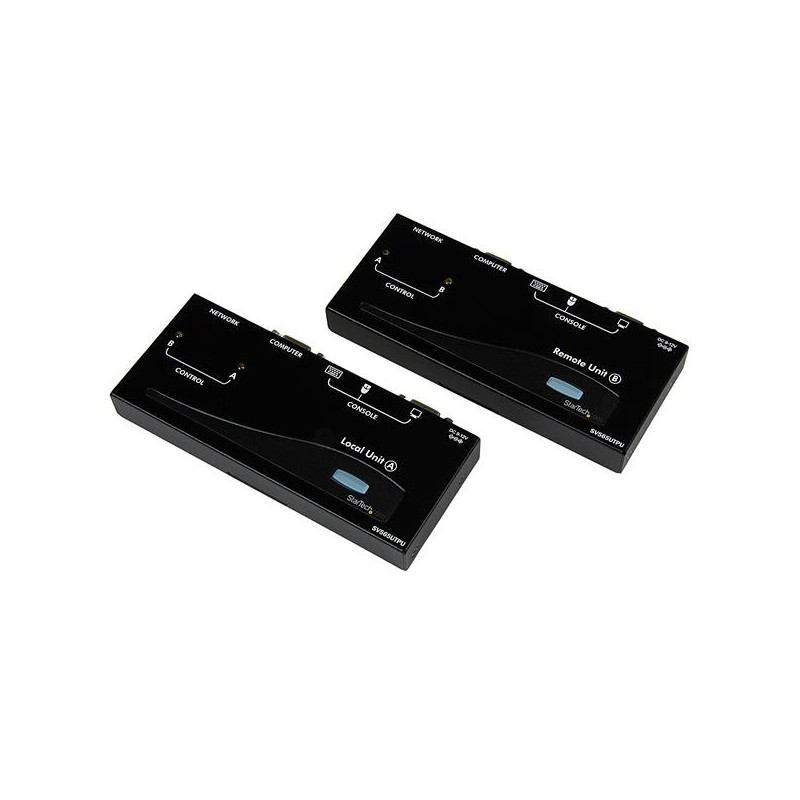

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
  • StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
  • StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
  • StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
  • StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
  • StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
  • StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft)
Operate a USB & VGA KVM or PC over 500ft as if it were right in front of you
The SV565UTPUEU USB VGA KVM Console Extender over CAT5 UTP (500 ft) lets you control a server, computer or multiple computers (connected through KVM Switch) over a standard Cat5 or Cat6 UTP network cable connection, at distances of up to 500 ft (150 m) away. PC connection cables are included with this product for a ready out of the box solution. You can use your existing keyboard, mouse, and monitor to access both the server room and your office computer, saving space and avoiding the need for a dedicated remote console by allowing you to switch between workstation view and KVM view at the remote location.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Low cost way to convert existing standard KVM units into remotely accessible hardware extending your hardware’s capabilities
- Maintain network security with long distance local access without being exposed over IP
- Broad support for newer USB keyboards, mice, and even most combo/wireless configurations
CertificationCE, FCC, RoSH
Colour of productBlack
Connectivity technologyWired
Dimensions (WxDxH)155 x 75 x 20 mm
I/O ports2 - RJ45 F, 4 - USB A F, 2 - DB15 (VGA) F
Keyboard port typeUSB
Maximum resolution1280 x 1024 pixels
Mouse port typeUSB
Package depth294 mm
Package height243 mm
Package weight170 g
Package width85 mm
Power requirements230 AC
Power supply type9 (DC)
Video port typeVGA
Weight299 g

SV565UTPUEU.pdf

StarTech.com USB VGA KVM Console Extender over CAT5 UTP (500 ft) Data Sheet

Download (196.42k)
