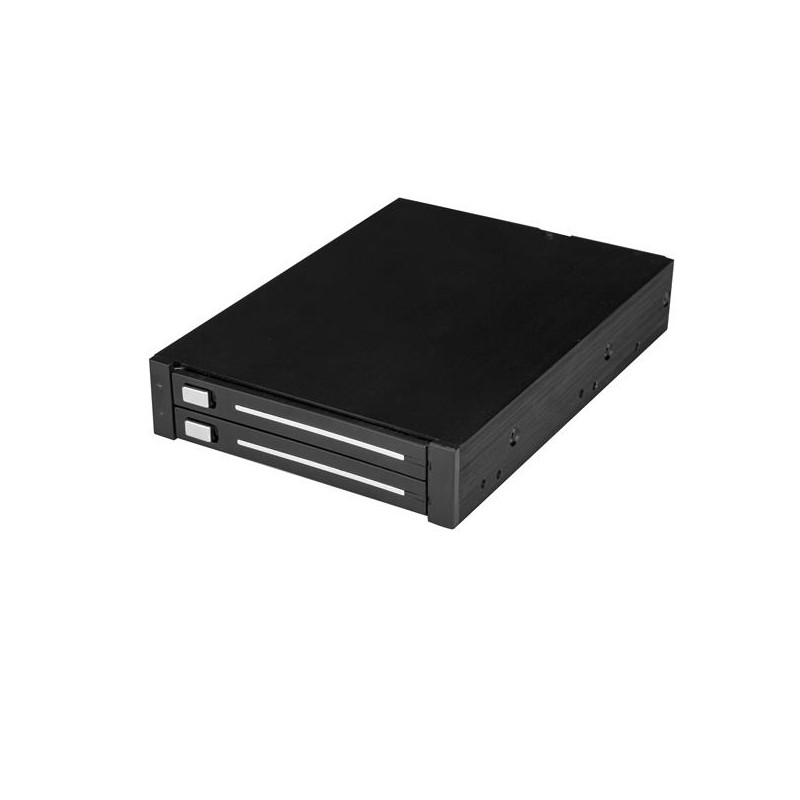

StarTech.com Dual-Bay 2.5” SATA SSD / HDD Rack for 3.5” Bay - Trayless - RAID
  • StarTech.com Dual-Bay 2.5” SATA SSD / HDD Rack for 3.5” Bay - Trayless - RAID
  • StarTech.com Dual-Bay 2.5” SATA SSD / HDD Rack for 3.5” Bay - Trayless - RAID
  • StarTech.com Dual-Bay 2.5” SATA SSD / HDD Rack for 3.5” Bay - Trayless - RAID
  • StarTech.com Dual-Bay 2.5” SATA SSD / HDD Rack for 3.5” Bay - Trayless - RAID
  • StarTech.com Dual-Bay 2.5” SATA SSD / HDD Rack for 3.5” Bay - Trayless - RAID
  • StarTech.com Dual-Bay 2.5” SATA SSD / HDD Rack for 3.5” Bay - Trayless - RAID
This HDD rack lets you install two 2.5” SATA hard drives or solid-state drives into a single 3.5” front bay. With configurable RAID support, the SATA drive rack provides an ideal data storage solution.



Increase performance and data redundancy

Configure and arrange your drives for increased drive capacity, performance, or data redundancy, with built-in RAID functionality. With multiple RAID options, such as RAID 0, RAID 1, spanning, or JBOD, you can build the data storage solution that works best for you.
Cables includedSATA
CertificationCE, FCC
Colour of productBlack
Data transfer rate6 Gbit/s
Depth140 mm
Hard drive interfaceSerial ATA,Serial ATA II,Serial ATA III
Hard drive size2.5 "
Height25 mm
Hot-swapY
Key lockN
LED indicatorsActivity,Fault,Link
ManualY
MaterialAluminium,Plastic
Number of hard drives supported2
Number of SATA connectors1
Package dimensions (WxDxH)150 x 198 x 45 mm
Package weight220 g
RoHS complianceY
Screws includedY
Size3.5 "
Supported storage drive heights5,7,9.5 mm
TypeCarrier panel
Weight220 g
Width101.2 mm

HSB225S3R.pdf

StarTech.com Dual-Bay 2.5” SATA SSD / HDD Rack for 3.5” Bay - Trayless - RAID Data Sheet

Download (134.17k)
