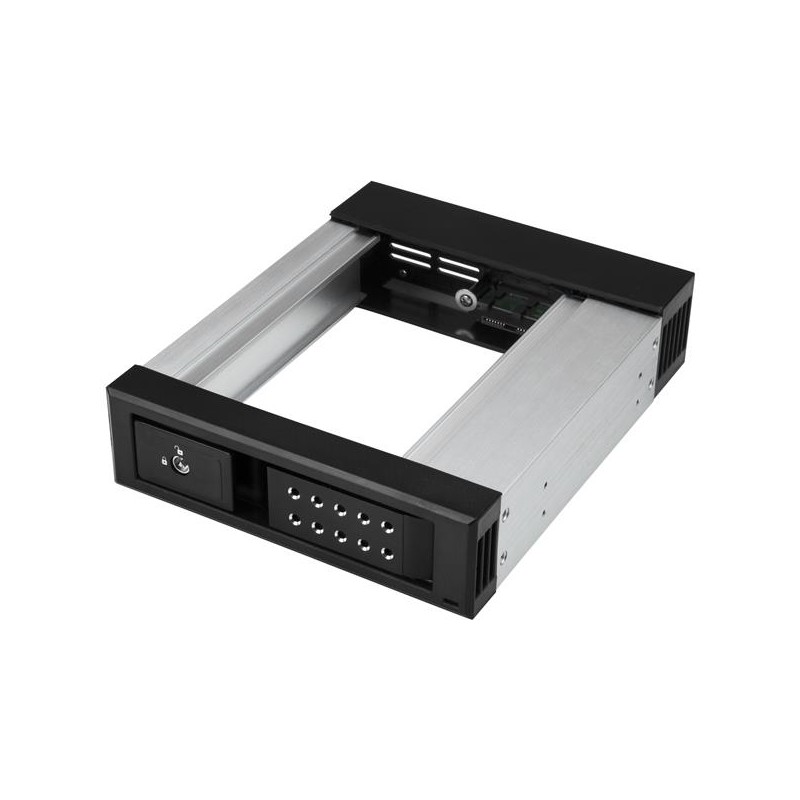

Hot-swap drives with ease, using this trayless mobile backplane for desktop PCs or servers

This removable hard drive hot-swap bay makes it easy to swap 3.5” SATA or SAS drives in and out of your server or desktop computer, using an available 5.25” front drive bay. It features a trayless design that saves you installation time and enables you to insert or remove drives as needed, creating a convenient solution for drive maintenance and interchangeability of data between multiple systems.

Hot-swap drives easily

This hot-swap bay/mobile rack is ideal for IT professionals, such as system administrators or computer operators, for quickly swapping, replacing, or transporting drives between various systems and locations. With support for both SATA and SAS 3.5” drives, it saves valuable time in environments where storage drives need to be replaced or removed regularly, such as in server rooms and data centers.

Valuable drive protection

The hot-swap bay provides a protective backplane with a durable aluminum housing that offers ventilation to ensure proper air flow and heat dissipation. To safeguard your data, you can lock the drive bay door to prevent unauthorized access to your drive.

Fast data transfers

To maximize the speed and performance of your drives, the mobile rack supports SAS I and II and SATA I, II and III, providing data transfer speeds up to 6Gbps when paired with a compatible controller.

The HSB1SATSASBA is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Hot swap drives between systems, using a 3.5” SATA or SAS drive in a 5.25” front bay
- Durable aluminum construction
- Trayless design for ease of use
Cables includedSATA
CertificationCE, FCC
Colour of productBlack
Data transfer rate6 Gbit/s
Depth179.4 mm
Hard drive interfaceSerial ATA,Serial ATA II,Serial ATA III,Serial Attached SCSI (SAS)
Hard drive size3.5 "
Height42 mm
Hot-swapY
Key lockY
LED indicatorsActivity,Power
ManualY
MaterialAluminium
Maximum hard drive capacity10000 GB
Number of hard drives supported1
Operating relative humidity (H-H)5 - 85 %
Operating temperature (T-T)0 - 50 °C
Package dimensions (WxDxH)150 x 197 x 40 mm
Package weight418 g
RoHS complianceY
Screws includedY
Size5.25 "
Storage relative humidity (H-H)5 - 95 %
TypeCarrier panel
Weight400 g
Width146 mm
Number of lock keys included2 pc(s)

HSB1SATSASBA.pdf

StarTech.com 5.25 to 3.5 Hard Drive Hot Swap Bay - For 3.5" SATA/SAS Drives - Trayless - Aluminum Data Sheet

Download (142.82k)
