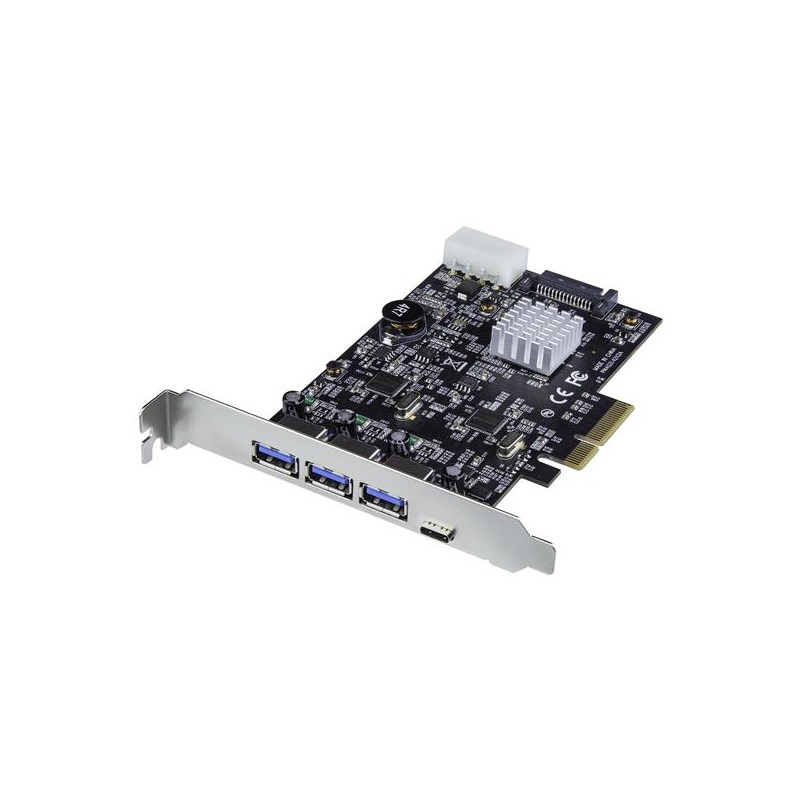

StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
  • StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
  • StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
  • StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
  • StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
  • StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
  • StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels
Add three USB-A ports and one USB-C port, via two host controllers, through a standard PCI Express slot

This USB 3.1 PCIe card lets you add three USB Type-A ports and one USB Type-C port to your computer, through a PCI Express slot. It makes it easy to upgrade your PC to the faster speed of USB 3.1 (10Gbps) so that you can access newer peripherals at twice the speed of traditional USB 3.0 (5Gbps) cards.

Faster USB performance

When multiple devices are connected, traditional single-bus USB cards share the maximum bandwidth between all ports. By employing two host controller chipsets, shared across two ports rather than four, this 4-port PCIe to USB 3.1 card dedicates up to 10Gbps for each set of two USB ports. It reduces performance bottlenecks and doubles your total available bandwidth to 20Gbps.

With higher data throughput support, the card is ideal for external hard drives, hard drive enclosures, and large external storage devices. It lets you access multiple devices simultaneously for read and write access.

Shared bandwidth

The 4-port USB 3.1 controller card adds dual independent channels to your computer and shares 10Gbps of bandwidth between two USB ports.

Each set of two ports shares a combined bandwidth of 10Gbps. If a single device is accessing the channel, the card will provide data transfer rates of up to 10Gbps to the device. If two devices are accessing the channel simultaneously, the 10Gbps of bandwidth will be shared between both devices.

The PEXUS313AC2V is backed by a StarTech.com 2-year warranty and free lifetime technical support.

The StarTech.com Advantage

- Add three USB-A and one USB-C external USB 3.1 ports on two independent bus channels
- Transfer files and access USB 3.1 devices faster, with up to 10Gbps throughput
- Connect large external storage solutions: optional LP4 or SATA power connector provides up to 900mA per USB port
CertificationCE, FCC
ChipsetASMedia - ASM1142, Pericom PI7C9X2G308GP
Data transfer rate (max)10 Gbit/s
Depth126 mm
Height20 mm
Host interfacePCIe
InternalY
Internal SATA ports quantity1
Linux operating systems supportedY
Mac operating systems supportedMac OS X 10.10 Yosemite,Mac OS X 10.9 Mavericks
ManualY
Operating relative humidity (H-H)5 - 90 %
Operating temperature (T-T)0 - 60 °C
Output interfaceUSB 3.1
Package weight134 g
Peripheral (Molex) power connectors (4-pin)1
RoHS complianceY
Server operating systems supportedWindows Server 2008 R2,Windows Server 2012 R2,Windows Server 2016
Storage temperature (T-T)-10 - 70 °C
UASP supportY
Weight81 g
Width85 mm
Windows operating systems supportedWindows 10,Windows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7,Windows 7 Enterprise,Windows 7 Enterprise x64,Wind
USB 3.1 (3.1 Gen 2) Type-A ports quantity3
PCIe version2.0
USB 3.1 (3.1 Gen 2) Type-C ports quantity1
Product colourBlack

PEXUS313AC2V.pdf

StarTech.com 4-Port USB 3.1 PCIe Card - 3x USB-A and 1x USB-C - 2x Dedicated Channels Data Sheet

Download (170.88k)
