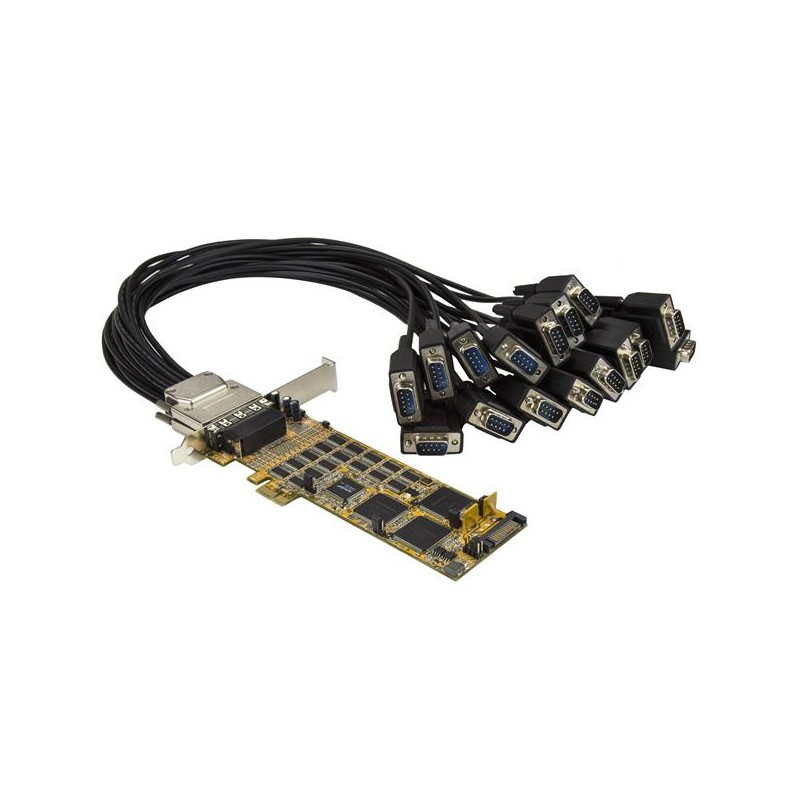

This PCI Express serial card adds 16 high-speed RS232 ports to your standard or low-profile desktop or server PC. This lets you maximize the number of available DB9 RS232 ports that are available for connecting your serial-based devices and equipment, while using only a single PCI Express (PCIe) slot. It’s the perfect solution for adding the serial ports you need, even if your desktop PC or server only has a limited number of PCIe expansion slots.



Add 16 RS232 ports through one PCIe slot

You can install the serial card to add 16 high-performance DB9 RS232 serial ports from a single PCIe slot. With two breakout cables of 8 ports each, the PCIe serial card maximizes the density of DB9 RS232 ports on a server or desktop computer. It’s ideal for system upgrades in a wide range of applications, including manufacturing equipment, POS equipment, security devices such as surveillance cameras, and environment or building control systems.



The serial card is compliant with PCI Express 1.0a specification, and it's compatible with 1x, 2x, 4x, 8x and 16x PCI Express slots.



High-speed serial communication

The PCIe serial card delivers high-performance, high-speed serial communication, with support for data transfer rates of up to 921.6 Kbps.



Easy installation

The serial card is easy to install and configure, and compatible with a broad range of Windows® and Linux® operating systems. The card features IRQ sharing and supports plug-and-play serial device connections, which makes it convenient and easy to connect serial devices. It includes a low-profile bracket making it compatible with both full profile and low profile PC chassis slots.



The PEX16S550LP is backed by a StarTech.com lifetime warranty and free lifetime technical support.
Baud rate921.6 Kbit/s
Cables includedRS-232
CertificationCE, FCC
ChipsetASMedia - ASM1083, SystemBase - SB4002A, SB16C1058
Colour of productYellow
Data bits5,6,7,8
Depth167.7 mm
Drivers includedYes
Height22 mm
Host interfacePCIe
InternalYes
Linux operating systems supportedYes
Mounting brackets includedYes
Operating relative humidity (H-H)10 - 90 %
Operating temperature (T-T)0 - 55 °C
Output interfaceSerial
Package depth290 mm
Package height70 mm
Package weight1200 g
Package width90 mm
Quick installation guideYes
RoHS complianceYes
Serial interface typeRS-232
Serial ports quantity32
Server operating systems supportedWindows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016
Stop bits1,1.5,2
Storage temperature (T-T)-20 - 75 °C
Weight70 g
Width68 mm
Windows operating systems supportedWindows 10 Education,Windows 10 Education x64,Windows 10 Enterprise,Windows 10 Enterprise x64,Windows 10 Home,Windows 10 Home x64,Windows 10 IOT Core,Windows 10 Pro,Windows 10 Pro x64,Windows 7 Enterprise,Windows 7 Enterprise x64,Windows 7 Home Basic,Wind
PCIe Card form factorLow-profile

PEX16S550LP.pdf

StarTech.com 16-Port Low-Profile Serial Card - RS232 - PCI Express Data Sheet

Download (172.76k)
