Netgear RBK30
  • Netgear RBK30
  • Netgear RBK30
Plug-in Convenience

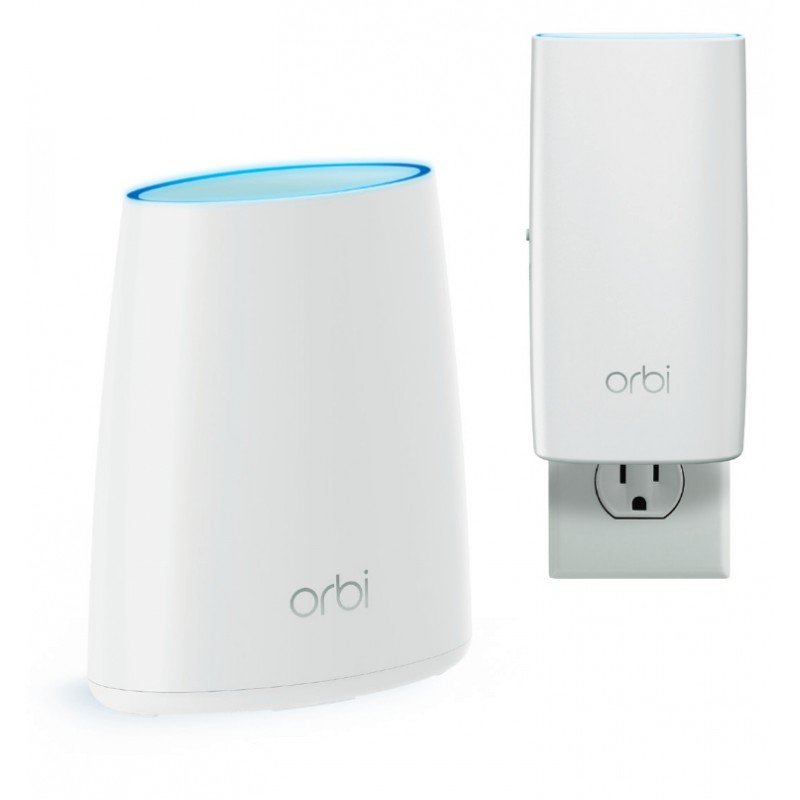

In a hallway or kitchen, garage or basement, the Wall Plug Satellite only needs an electrical outlet to deliver great WiFi. Without any cords you now have new options for placement and get create WiFi to every room of your house. This Orbi WiFi System (RBK30) comes with an Orbi WiFi Router and Wall Plug Satellite and covers up to 3,500 square feet with high performance AC2200 WiFi.



Plug-in Strong WiFi



The Orbi wall plug satellite provides new flexibility on where you expand WiFi coverage.
3GN
4GN
AC adapter includedY
Antenna typeinternal
Antennas quantity4
Cables includedLAN (RJ-45)
Cabling technology10/100/1000Base-T(X)
DC-in jackY
Ethernet LANY
Ethernet LAN (RJ-45) ports4
Modulation256-QAM
Networking standardsIEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n
Output current2.5 A
Output voltage12 V
Package depth273 mm
Package height195 mm
Package weight2130 g
Package width232 mm
Power source typeAC
Product typeTabletop router
Quick start guideY
Reset buttonY
Security algorithmsWPA,WPA2-PSK
Wi-Fi standards802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n)
Ethernet LAN interface typeGigabit Ethernet
Top Wi-Fi standardWi-Fi 5 (802.11ac)
Wi-Fi bandTri-band (2.4 GHz / 5 GHz / 5 GHz)
Product colourWhite
Shipping (inner) case width306 mm
Shipping (inner) case length265 mm
Shipping (inner) case height436 mm
WLAN data transfer rate (first band)866 Mbit/s
WLAN data transfer rate (second band)866 Mbit/s
WLAN data transfer rate (third band)400 Mbit/s
Shipping (inner) case net weight5440 g
Quantity per shipping (inner) case2 pc(s)
Number of cartons per pallet layer12
Number of layers per pallet (air)3
Number of layers per pallet (sea)4

rbk30-100uks.pdf

Netgear RBK30 Data Sheet

Download (1.13M)

Similar products

  • Netgear R7000
    Netgear R7000
  • Netgear EAX80
    Netgear EAX80
  • Netgear LBR20
    Netgear LBR20
  • Netgear MR5200
    Netgear MR5200
  • Netgear Nighthawk Mesh WiFi 6 Add-On Satellite
    Netgear Nighthawk Mesh WiFi 6 Add-On...

Netgear RBK30

2200Mbps, 3500sq ft, Tri-band, 128MB Flash + 256MB RAM, 1 WAN + 3 LAN, WPA/PSK2

RBK30-100UKS

Out of Stock

£261.72
£218.10 Ex VAT.
