Bluetooth | Yes |
Bluetooth version | 4.1 |
Bus type | DMI3 |
Cabling technology | 10/100/1000Base-T(X) |
Card reader integrated | No |
Chassis type | 1L sized PC |
Colour of product | Black |
Combo headphone/mic port | Yes |
CPU configuration (max) | 1 |
Depth | 182.9 mm |
Discrete graphics adapter model | Not available |
Display included | No |
DisplayPorts quantity | 2 |
DVI port | No |
Embedded options available | Yes |
Energy Star certified | Yes |
Enhanced Intel SpeedStep Technology | Yes |
Ethernet LAN | Yes |
Ethernet LAN (RJ-45) ports | 1 |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Execute Disable Bit | Yes |
Height | 34.5 mm |
Idle States | Yes |
Intel 64 | Yes |
Intel Enhanced Halt State | Yes |
Intel Stable Image Platform Program (SIPP) | No |
Intel Trusted Execution Technology | Yes |
Intel TSX-NI | Yes |
Intel Virtualization Technology for Directed I/O (VT-d) | Yes |
Intel VT-x with Extended Page Tables (EPT) | Yes |
Internal memory | 4 GB |
Internal memory type | DDR4-SDRAM |
Keyboard supplied | Yes |
Manual | Yes |
Maximum internal memory | 32 GB |
Maximum number of PCI Express lanes | 16 |
Memory clock speed | 2400 MHz |
Memory slots | 2x SO-DIMM |
Microphone in | Yes |
Motherboard chipset | Intel Q270 |
Mouse included | Yes |
Number of processors installed | 1 |
Number of SSDs installed | 1 |
Number of storage drives installed | 1 |
On-board graphics adapter | Yes |
On-board graphics adapter model | Intel HD Graphics 630 |
Operating system architecture | 64-bit |
Operating system installed | Windows 10 Pro |
Optical drive type | No |
Password protection | Yes |
Password protection type | HDD,Power on |
PCI Express configurations | 2x8,1x8+2x4 |
PCI Express slots version | 3.0 |
Placement supported | Horizontal/Vertical |
Power supply | 65 W |
Processor boost frequency | 3.30 GHz |
Processor cache | 6 MB |
Processor codename | Kaby Lake |
Processor cores | 4 |
Processor family | Intel Core i5-7xxx |
Processor frequency | 2.70 GHz |
Processor lithography | 14 nm |
Processor model | i5-7500T |
Processor operating modes | 64-bit |
Processor socket | LGA 1151 (Socket H4) |
Processor threads | 4 |
Product type | Mini PC ( |
RoHS compliance | Yes |
Scalability | 1S |
Serial ports quantity | 1 |
Solid-state drive capacity | 128 GB |
Storage media | SSD |
Supported instruction sets | AVX 2.0 |
System bus rate | 8 GT/s |
Thermal Design Power (TDP) | 35 W |
Thermal Monitoring Technologies | Yes |
Thermal solution specification | PCG 2015A |
Tjunction | 80 °C |
Total storage capacity | 128 GB |
Trusted Platform Module (TPM) | Yes |
VGA (D-Sub) ports quantity | 1 |
Water cooling system | No |
Weight | 1320 g |
Wi-Fi | Yes |
Wi-Fi standards | IEEE 802.11ac |
Width | 179 mm |
Processor cache type | Smart Cache |
Maximum internal memory supported by processor | 64 GB |
Memory types supported by processor | DDR3L-SDRAM,DDR4-SDRAM |
Memory clock speeds supported by processor | 1333,1600,2133,2400 MHz |
Memory channels supported by processor | Dual |
ECC supported by processor | No |
Intel Virtualization Technology (VT-x) | Yes |
Intel Clear Video Technology | Yes |
Memory voltage supported by processor | 1.35 V |
Processor package size | 37.5 x 37.5 mm |
On-board graphics adapter base frequency | 350 Mhz |
On-board graphics adapter dynamic frequency (max) | 1100 MHz |
Maximum on-board graphics adapter memory | 64 GB |
On-board graphics adapter DirectX version | 12.0 |
On-board graphics adapter OpenGL version | 4.4 |
On-board graphics adapter ID | 0x5912 |
Intel Software Guard Extensions (Intel SGX) | Yes |
USB 3.0 (3.1 Gen 1) Type-A ports quantity | 6 |
Conflict Free processor | Yes |
Number of displays supported (on-board graphics) | 3 |
Intel segment tagging | Enterprise,Professional |
Intel® Clear Video HD Technology (Intel® CVT HD) | Yes |
Intel® AES New Instructions (Intel® AES-NI) | Yes |
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) | Yes |
Intel® Identity Protection Technology (Intel® IPT) | Yes |
Intel® Secure Key | Yes |
Intel® OS Guard | Yes |
Intel® Turbo Boost Technology | 2.0 |
Intel® Quick Sync Video Technology | Yes |
Processor ARK ID | 97121 |
Configurable TDP-down frequency | 1700 MHz |
Speakers supplied | Yes |
Intel® InTru™ 3D Technology | Yes |
Discrete graphics adapter | No |

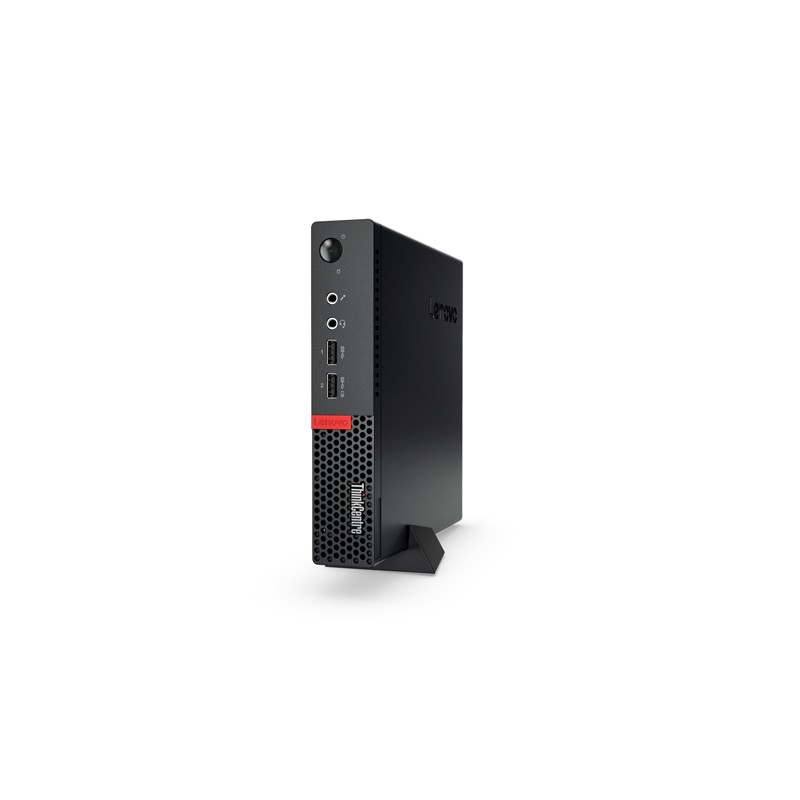

Intel Core i5-7500T (2.7GHz), 4GB DDR4, 128GB SSD, Intel HD Graphics 630, Gigabit Ethernet, WLAN, Bluetooth, Windows 10 Pro 64-bit
10MV001KUK
Out of Stock
