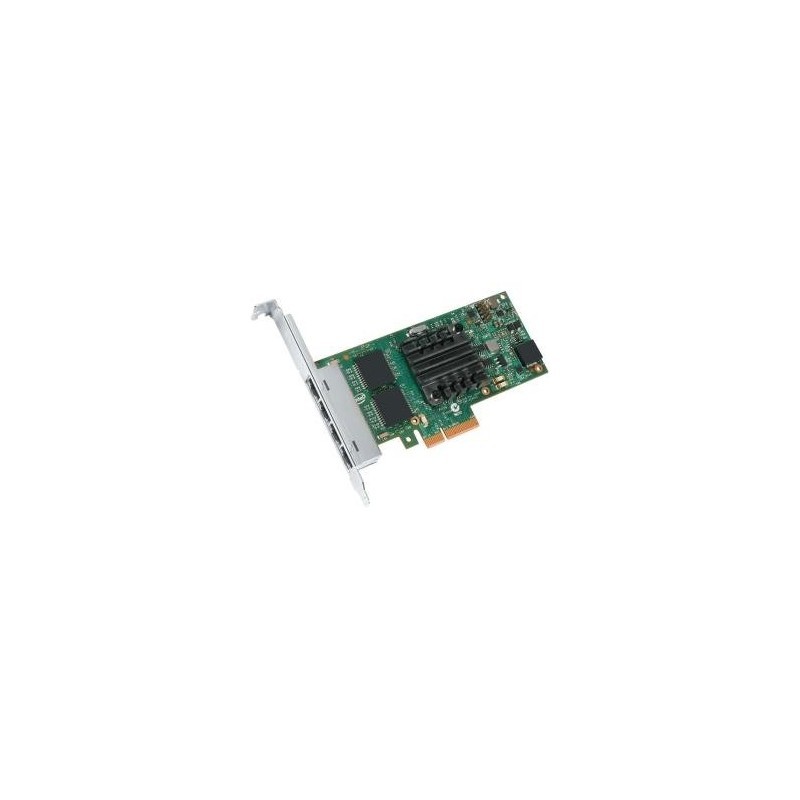

Based on the new Intel® Ethernet Controller I350 series, the Intel® Ethernet Server Adapter I350 represents the next step in the GbE networking evolution for the enterprise and data center. It introduces new levels of performance through industry-leading enhancements for both virtualized and Internet small computer system interface (iSCSI) unified networking environments. This new family of adapters also includes new power management technologies such as Energy-Efficient Ethernet (EEE) and direct memory access coalescing (DMAC).
| Cable type | Cat 5 up to 100m |
| Cabling technology | 10/100/1000BaseT(X) |
| Chipset | Intel I350 |
| Compatibility | Server |
| Compatible operating systems | Windows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat |
| Connectivity technology | Wired |
| Data transfer rate (max) | 1000 Mbit/s |
| Depth | 135.4 mm |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 4 |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Full duplex | Yes |
| Host interface | PCI-E |
| Intel Ethernet Power Management | Yes |
| Intel Flexible Port Partitioning | Yes |
| Intel Virtual Machine Device Queues (VMDq) | Yes |
| Intel Virtualization Technology for Connectivity (VT-c) | Yes |
| Intelligent Offloads | No |
| Interface | Ethernet |
| Interface type | PCIe v2.1 (5.0GT/s) |
| Internal | Yes |
| iWARP/RDMA | No |
| LAN controller | Intel I350 |
| Maximum operating distance | 100 m |
| Networking standards | IEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z |
| On-chip QoS and Traffic Management | Yes |
| Operating temperature (T-T) | 0 - 55 °C |
| PCI Card form factor | full-height (low-profile) |
| PCI-SIG* SR-IOV Capable | Yes |
| Power consumption (typical) | 5 W |
| Product type | 13 |
| Storage relative humidity (H-H) | 35 - 90 % |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage-over-ethernet | Yes |
| Supported network protocols | TCP, UDP, IP |
| Thermal Design Power (TDP) | 5 W |
| Width | 68.9 mm |
| Status | Launched |
| Halogen free | No |
| Product family | Intel Gigabit server adapter |
| Product series | Intel I350 |
| Product codename | Powerville |
| Ethernet adapter ARK ID | 84805 |
Similar products
-
Intel Ethernet Server Adapter I340, Bulk,...
-
Intel I210T1
-
Intel Ethernet SFP+ SR Optics
-
Intel E10GFSPLR
-
Intel Gigabit CT Desktop Adapter...
Intel I350-T4V2
Intel Ethernet Server Adapter I350-T4V2, retail bulk
I350T4V2BLK
In Stock
£169.95
£141.63 Ex VAT.
