Intel I350T4V2
  • Intel I350T4V2
  • Intel I350T4V2
Intel® Ethernet Power Management Technology provides solutions to common power management approaches by reducing idle power, reducing capacity and power as a function of demand, operating at maximum energy efficiency whenever possible, and enabling functionality only when needed.



Flexible Port Partitioning (FPP) technology utilizes industry standard PCI SIG SR-IOV to efficiently divide your physical Ethernet device into multiple virtual devices, providing Quality of Service by ensuring each process is assigned to a Virtual Function and is provided a fair share of the bandwidth.



Virtual Machine Device Queues (VMDq) is a technology designed to offload some of the switching done in the VMM (Virtual Machine Monitor) to networking hardware specifically designed for this function. VMDq drastically reduces overhead associated with I/O switching in the VMM which greatly improves throughput and overall system performance
Cable typeCat 5 up to 100m
Cabling technology10/100/1000BaseT(X)
ChipsetIntel I350
Colour of productGreen,Silver
CompatibilityServer
Compatible operating systemsWindows Server 2012 R2*, Windows Server 2012*, Windows 8*, Windows Server 2008 R2*, Windows 7*, Windows Server 2008*, Windows Vista*, Windows Server 2003 R2*, Windows Server 2003*, Windows XP Professional, Linux* Stable Kernel version 3.x, 2.6,x, Red Hat
Connectivity technologyWired
Copper ethernet cabling technology1000BASE-T,100BASE-TX,10BASE-T
Data transfer rate (max)1000 Mbit/s
Depth135.4 mm
Embedded options availableNo
Ethernet LANYes
Ethernet LAN (RJ-45) ports4
Ethernet LAN data rates10,100,1000 Mbit/s
Fiber Channel over EthernetNo
Full duplexYes
Height120 mm
Host interfacePCI-E
Intel Data Direct I/O TechnologyNo
Intel Ethernet Power ManagementYes
Intel Flexible Port PartitioningYes
Intel Trusted Execution TechnologyNo
Intel Virtual Machine Device Queues (VMDq)Yes
Intel Virtualization Technology for Connectivity (VT-c)Yes
Intelligent OffloadsYes
InterfaceEthernet
Interface typePCIe v2.1 (5.0GT/s)
InternalYes
iWARP/RDMANo
LAN controllerIntel I350
LED indicatorsLAN
Linux operating systems supportedRedHat EL Linux 5.0,RedHat EL Linux 6.0,SuSE Linux 10,SuSE Linux 11
Low halogen options availableYes
Maximum operating distance100 m
Networking standardsIEEE 802.1as,IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x,IEEE 802.3z
Number of QPI linksQuad
On-chip QoS and Traffic ManagementYes
Operating temperature (T-T)0 - 55 °C
PCI Card form factorhalf-height (low-profile)
PCI-SIG* SR-IOV CapableYes
Power consumption (typical)5 W
Product type13
Server operating systems supportedWindows Server 2003 R2,Windows Server 2008 R2
Speed & slot width5 GT/s, x4 Lane
Storage Over EthernetiSCSI, NFS
Storage relative humidity (H-H)35 - 90 %
Storage temperature (T-T)-40 - 70 °C
Storage-over-ethernetYes
Supported network protocolsTCP, UDP, IP
Thermal Design Power (TDP)5 W
Thermal power5 W
Width68.9 mm
Born on dateQ3'14
Launch date2014-09-01T00:00:00
Market segmentSRV
Product nameIntel Ethernet Server Adapter I350-T4V2
StatusLaunched
Halogen freeNo
Product familyIntel Gigabit server adapter
Product seriesIntel I350
Product codenamePowerville
Product brief URLhttp://www.intel.com/content/www/us/en/ethernet-controllers/ethernet-i350-server-adapter-brief.html?wapkw=i350
Ethernet adapter ARK ID84805
Network interface card typeServer

Similar products

  • Intel Ethernet Server Adapter I340, Bulk, 5 pcs
    Intel Ethernet Server Adapter I340, Bulk,...
  • Intel I210T1
    Intel I210T1
  • Intel Ethernet SFP+ SR Optics
    Intel Ethernet SFP+ SR Optics
  • Intel E10GFSPLR
    Intel E10GFSPLR
  • Intel Gigabit CT Desktop Adapter PCI-express - Bulk packed, 20-Pack
    Intel Gigabit CT Desktop Adapter...

Intel I350T4V2

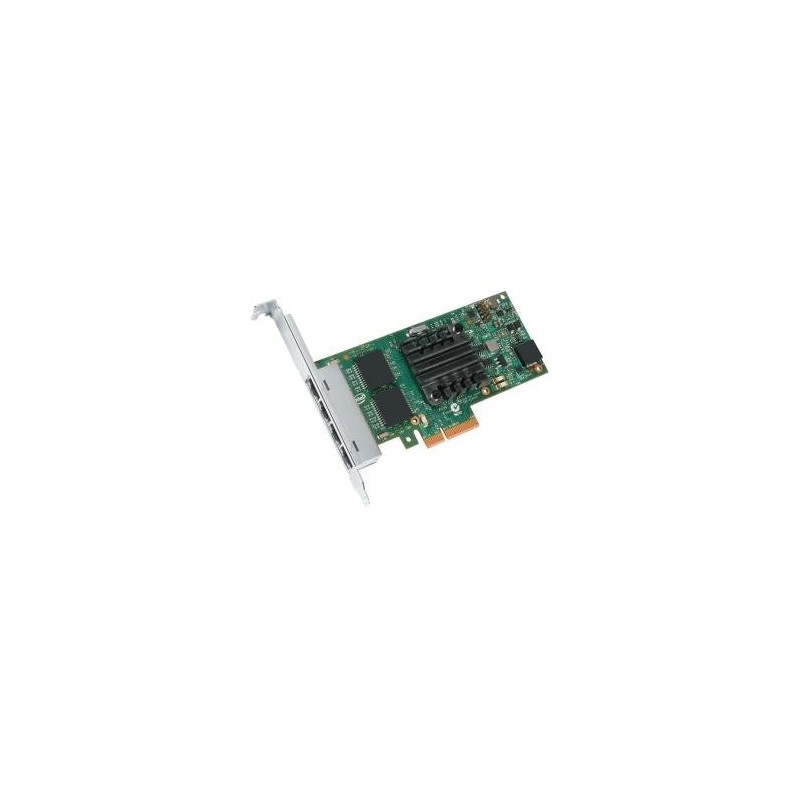

Ethernet Server Adapter I350-T4V2

I350T4V2

In Stock

£177.32
£147.76 Ex VAT.
