Eaton PIMS0978
  • Eaton PIMS0978
  • Eaton PIMS0978
General Description

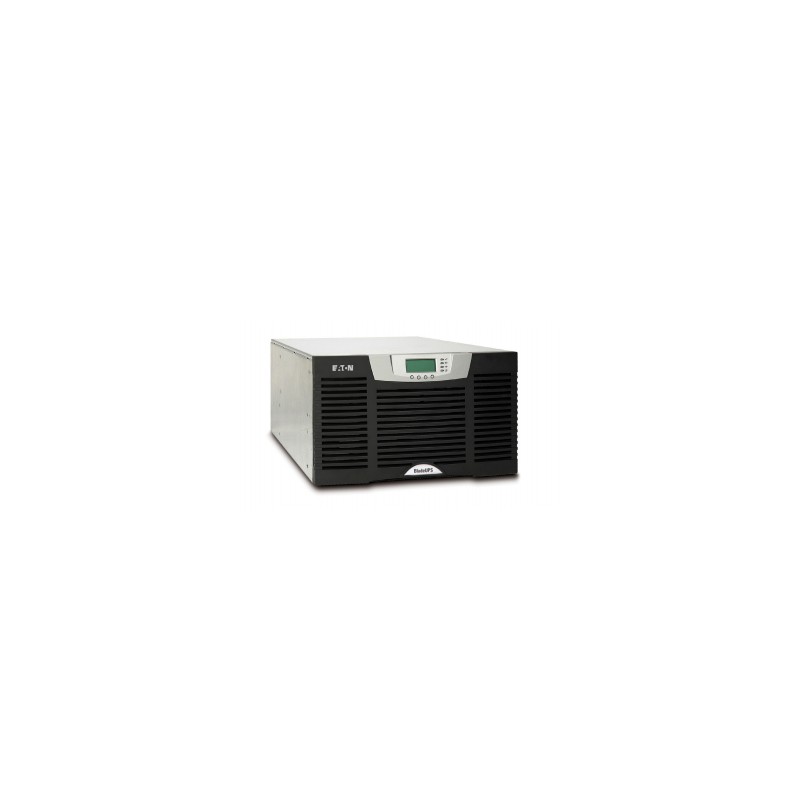

BladeUPS, 12 kW, 0-40°C Operating temp, Rack Power Module, 12 kVA, 1 slot, 17.4A, 2 dry inputs, 1 dry output, 40 batteries, 5 Amp Hour, 1 modules, Input/output 1 ft. cord, DB9 Serial cable, Silver, 24A, Rack Mounted
Battery capacity5 Ah
Battery technologySealed Lead Acid (VRLA)
Cable length0.3 m
Cables includedSerial
CertificationCE, cUL/UL1778 IEC 62040,IEC 60950-1
Colour of productBlack,Silver
DisplayLCD
Efficiency98 %
Ethernet LAN (RJ-45) ports1
International Protection (IP) codeIP20
LED indicatorsAlarm,Power
MaterialPlastic,Steel
Maximum current24 A
Noise level58 dB
Number of battery cells40
Operating relative humidity (H-H)5 - 95 %
Operating temperature (T-T)0 - 40 °C
Output operation voltage (max)230 V
Output power12000 W
Package depth1016 mm
Package height685.8 mm
Package weight180076 g
Package width1219.2 mm
Power supply input frequency50/60 Hz
Rack capacity6U
Serial interface typeRS-232
Output power capacity12000 VA
UPS topologyDouble-conversion (Online)
Audible alarm(s)Yes
Serial interfaceYes
