10G support | No |
Auto MDI/MDI-X | Yes |
Basic switching RJ-45 Ethernet ports quantity | 8 |
Certification | RoHS, FCC Class B, ICES-003 Class B, CE Class B, C-Tick Class B, VCCI Class B, cUL, CB |
Colour of product | Black |
Copper ethernet cabling technology | 100BASE-TX,10BASE-T |
Data transfer rate | 200 Mbit/s |
DC-in jack | Yes |
Dimensions (WxDxH) | 162 x 102 x 28 mm |
Ethernet LAN (RJ-45) ports quantity | 8 |
Flow control support | Yes |
Full duplex | Yes |
Housing material | Metal |
Input current | 1 A |
Input voltage | 5 V |
Jumbo frames support | Yes |
LED indicators | Link,Power |
MAC address filtering | Yes |
MAC address table | 1000 entries |
Management | Unmanaged |
Maximum data transfer rate | 0.1 Gbit/s |
Mean time between failures (MTBF) | 511323 h |
Mounting | Desktop |
Networking standards | IEEE 802.1p,IEEE 802.3,IEEE 802.3az,IEEE 802.3u,IEEE 802.3x |
Operating relative humidity (H-H) | 10 - 90 % |
Operating relative humidity range | 10 - 90 % |
Operating temperature (T-T) | 0 - 50 °C |
Operating temperature range (T-T) | 0 - 50 °C |
Packet buffer memory | 0.768 MB |
PoE | No |
Ports quantity | 8 |
Power consumption (typical) | 2.1 W |
Quality of Service (QoS) support | Yes |
Rack mounting | No |
RJ45 Ports Qty | 8 |
Source data-sheet | Icecat.biz |
Stackable | No |
Storage relative humidity (H-H) | 5 - 90 % |
Storage relative humidity range | 5 - 90 % |
Storage temperature (T-T) | -10 - 70 °C |
Storage temperature range (T-T) | -10 - 70 °C |
Store-and-forward | Yes |
Supported data transfer rates | 10/100 Mbps |
Switch Speed | 10/100 |
Switching capacity | 1.6 Gbit/s |
Duncan T - 18/03/2021
Works a treat

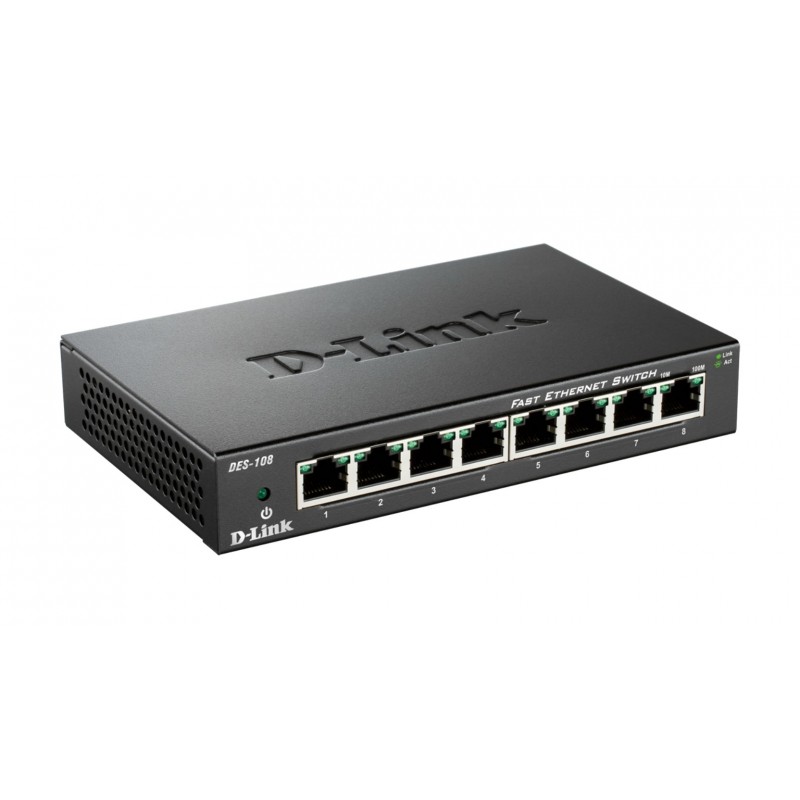

DES-108 - 8 Port Fast Ethernet Switch, Auto MDI/MDIX, Full/half-duplex, 1.6 Gbps, QoS, Black
DES-108/B
Read Reviews (1)In Stock
