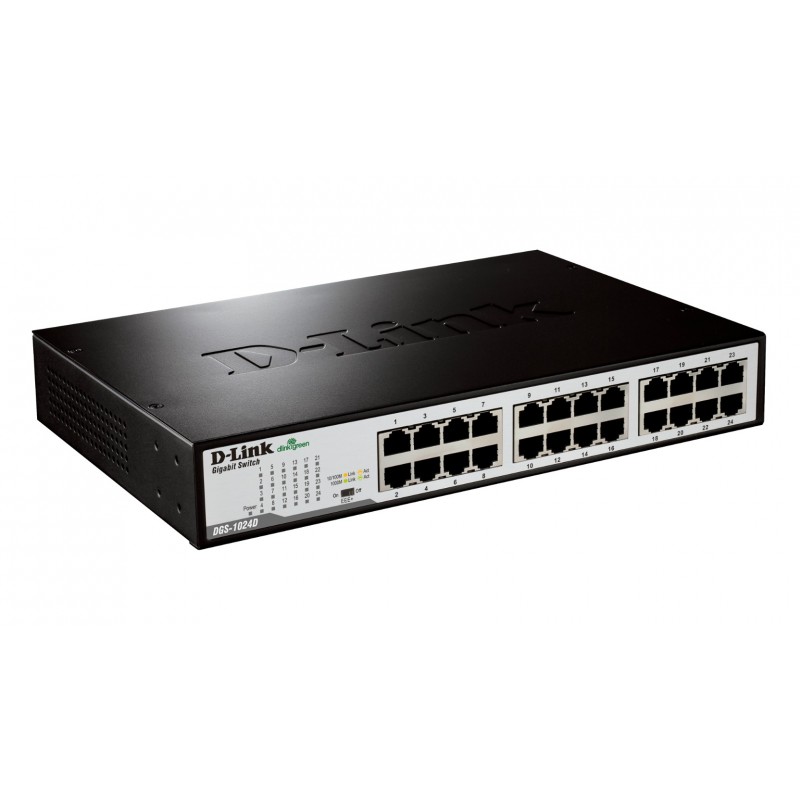

D-Link DGS-1024D
  • D-Link DGS-1024D
  • D-Link DGS-1024D
  • D-Link DGS-1024D
• 48Gbps switching capacity • 8K MAC Address Table • Rack mountable or DesktopGet the blazing speed of Gigabit Ethernet with the D-Link DGS-1024D, a 24-port 10/100/1000Mbps Switch that delivers power, performance, and reliability in one cost-effective, space-saving design. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Power users in the office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly. The versatile and compact 1RU height design of the DGS-1024D enables the device to be rackmounted in a standard 19 inch rack, while conserving valuable rack space. Power-Packed It features a non-blocking switching architecture that filters and forwards packets at full wire-speed for maximum throughput. An 8K MAC address table provides scalability for even the largest networks. Address learning and aging, 802.3x Flow Control for full-duplex mode, and back pressure flow control for half-duplex mode alleviates traffic congestion and ensures reliable data transmission. Designed using industry standards, it is compatible with virtually all 10, 100, and 1000Mbps Ethernet devices and other vendor equipment. It protects your existing network investments while providing you with a straightforward migration path to faster Gigabit speeds.Easy to Install and Maintain The auto features of this switch make installation plug & play and hassle-free. No configuration is required. Auto-MDI/MDI-X crossover on all ports eliminate the need for crossover cables for connection to another switch or hub. Auto-Negotiation on each port senses the link speed of a network device (either 10, 100, 1000Mbps) and intelligently adjusts for compatibility and optimal performance. It also features diagnostic LEDs, which display status and activity, allowing you to quickly detect and correct problems on the network. Every port also supports a cable diagnostic feature that helps to detect cable related problems.
Basic switching RJ-45 Ethernet ports quantity24
Dimensions (WxDxH)280 x 180 x 44 mm
I/O ports10BASE-T, 100BASE-TX & 1000BASE-T
MAC address table8000 entries
Maximum data transfer rate1 Gbit/s
Operating relative humidity (H-H)0 - 40 %
Package depth391 mm
Package height102 mm
Package weight2500 g
Package width262 mm
Packet buffer memory0.5 MB
Power consumption (typical)27.5 W
Power over Ethernet (PoE)No
Rack mountingYes
Storage temperature (T-T)-10 - 55 °C
Switch typeUnmanaged
Weight1810 g
Shipping (inner) case width284 mm
Shipping (inner) case length543 mm
Shipping (inner) case height431 mm
Shipping (inner) case net weight8835 g
Shipping (inner) case gross weight13400 g
Pallet gross weight (air)447300 g
Pallet height (air)1859 mm
Pallet gross weight (sea)447300 g
Pallet height (sea)1859 mm
Harmonized System (HS) code85176990
Products per shipping (inner) case5 pc(s)
Master (outer) cases per pallet (air)32 pc(s)
Products per pallet (air)160 pc(s)
Pallet gross length1100 mm
Pallet gross width1200 mm
Master (outer) cases per pallet (sea)32 pc(s)
Products per pallet (sea)160 pc(s)

You might also like

  • CCS Leaded Voice Converters
    CCS Leaded Voice Converters
  • Cat5e RJ45 Patch Cables
    Cat5e RJ45 Patch Cables
  • 24 Port Cat5e UTP Elite Patch Panel + Rear Cable Managment
    24 Port Cat5e UTP Elite Patch Panel + Rear...
  • SingleGang CCS Flat Euro Style Faceplate
    SingleGang CCS Flat Euro Style Faceplate
  • 24 Port Shielded Cat6 RJ45 Patch Panel
    24 Port Shielded Cat6 RJ45 Patch Panel
  • Cable Management Bar for CCS Elite Panels
    Cable Management Bar for CCS Elite Panels
  • 100mm Cable Ties - Pack of 100
    100mm Cable Ties - Pack of 100
  • Basic Cat6 Termination Kit
    Basic Cat6 Termination Kit
  • D-Link DES-105
    D-Link DES-105
  • UK Socket / UK Plug Rack PDU
    UK Socket / UK Plug Rack PDU

Similar products

  • TP-LINK 8-port 10/100 PoE Switch
    TP-LINK 8-port 10/100 PoE Switch
  • D-Link DGS-1510-28P
    D-Link DGS-1510-28P
  • TP-LINK TL-SF1005D
    TP-LINK TL-SF1005D
  • TP-LINK 8-Port 10/100Mbps Desktop Switch
    TP-LINK 8-Port 10/100Mbps Desktop Switch
  • Linksys LGS124-UK
    Linksys LGS124-UK

D-Link DGS-1024D

24-PORT GIGABIT ETHERNET SWITCH 24X 10 100 1000 MBPS

DGS-1024D/B

In Stock

£108.28
£90.23 Ex VAT.
