Aten CS1912
  • Aten CS1912
  • Aten CS1912
  • Aten CS1912
  • Aten CS1912
  • Aten CS1912

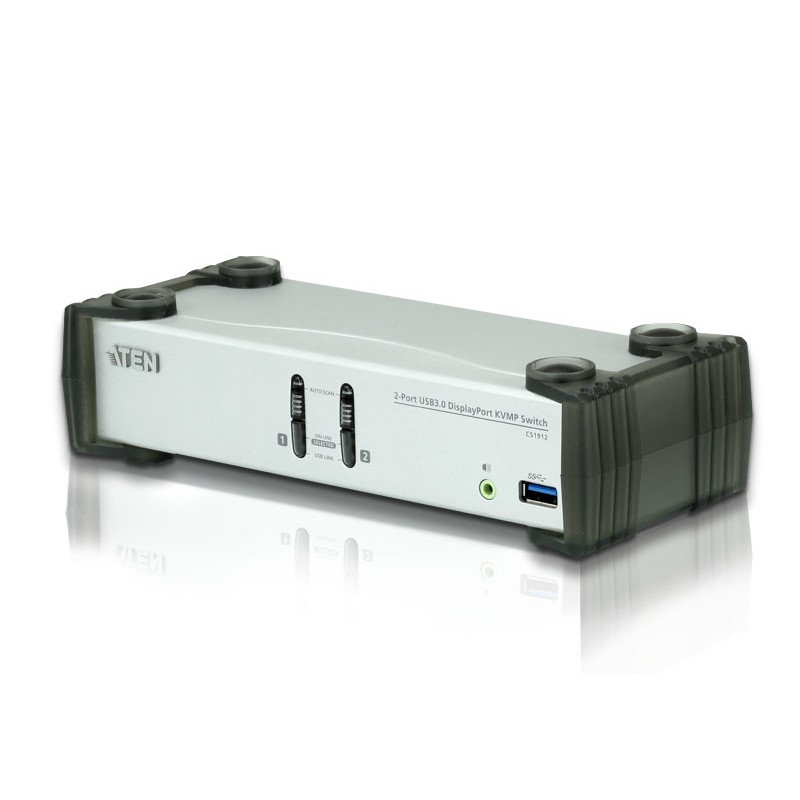

The ATEN CS1912 2-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1912 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.



As a KVM switch, the CS1912 gives users access to two DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1912 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.



ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.



With its rich feature set, the CS1912 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1912 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.
AC adapter includedYes
Audio connectionsYes
Built-in displayNo
Cables includedAudio (3.5mm),DisplayPort,USB
Colour of productBlack,Grey
Console portsDisplayPort,USB A
Console USB ports quantity2
DC-in jackYes
Depth210 mm
External power adapterYes
HDCPYes
Headphone outputs4
Height55.5 mm
Hot-Plug supportYes
Keyboard port typeUSB
LED indicatorsStatus,USB
Mac compatibilityYes
ManualYes
MaterialMetal,Plastic
Maximum resolution3840 x 2160 pixels
Mouse port typeUSB
Number of computers controlled2
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 50 °C
Output voltage5 V
Power consumption (typical)3.3 W
Push buttonYes
Rack mountingNo
RoHS complianceYes
Scan interval1,99 s
Storage temperature (T-T)-20 - 60 °C
USB connector typeUSB Type-A,USB Type-B
USB version3.0 (3.1 Gen 1)
Video port typeDisplayPort
Weight730 g
Width88 mm
USB hubYes
Automatic switchingYes

CS1912.pdf

Aten CS1912 Data Sheet

Download (2.05M)

Similar products

  • Aten 2 Port DVI-D Computer Sharing Device
    Aten 2 Port DVI-D Computer Sharing Device
  • Aten KL1508AN
    Aten KL1508AN
  • Aten CS1922
    Aten CS1922
  • Aten Umschalter
    Aten Umschalter

Aten CS1912

2x USB A, 2x USB3.1 B, 3x DisplayPort, 4x 3.5mm, DC, 210 x 88 x 55.5 mm, 730 g

CS1912

Out of Stock

£250.04
£208.36 Ex VAT.
