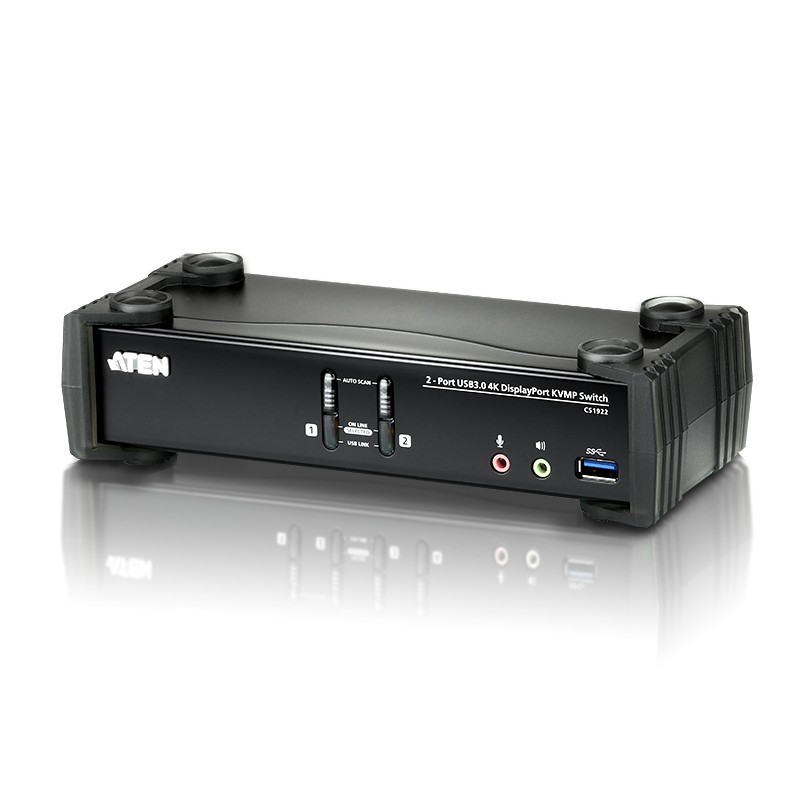

Aten CS1922
  • Aten CS1922
  • Aten CS1922
  • Aten CS1922
  • Aten CS1922
The ATEN CS1922 2-Port USB 3.0 4K DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology for the increasing demand of higher video quality and transfer speeds on modern computers. The ATEN CS1922 offers an unprecedented performance of delivering 4K resolution, the next generation USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps data transfer rates and enhanced user-friendly operations.



As a KVM switch, the CS1922 allows users to access two DisplayPort computers from a single USB keyboard, USB mouse and monitor console. Doing so with ease, the CS1922 provides three convenient switching methods – using front panel pushbuttons, mouse, or hotkeys for flexible access to any computer connected to the installation.



The unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a print server, modem splitter, etc.



With its rich feature set, the CS1922 is designed to surpass all requirements in graphic design, animation, and video-editing applications. Such as CAD/CAM (computer aided design/manufacturing). The CS1922 allows you to share the audio from each of the connected computers. HD audio transmitted by DisplayPort would offer you a different experience.
AC adapter includedYes
Audio connectionsYes
Built-in displayNo
Cables includedAudio (3.5mm),DisplayPort,USB
Colour of productBlack
Console ports3.5mm mic,DisplayPort,USB B
Console USB ports quantity4
DC-in jackYes
Depth270 mm
External power adapterYes
HDCPYes
Height55.5 mm
Hot-Plug supportYes
Keyboard port typeUSB
LED indicatorsOperation,USB
Linux operating systems supportedYes
Mac compatibilityYes
Mac operating systems supportedYes
ManualYes
MaterialMetal,Plastic
Maximum resolution4096 x 2160 pixels
Mouse port typeUSB
Number of computers controlled4
Operating relative humidity (H-H)0 - 80 %
Operating temperature (T-T)0 - 50 °C
Output voltage5 V
Scan interval1,99 s
Storage temperature (T-T)-20 - 60 °C
USB connector typeUSB Type-B
USB version3.0 (3.1 Gen 1)
Video port typeDisplayPort
Weight910 g
Width88 mm
Windows operating systems supportedYes
USB 3.0 (3.1 Gen 1) Type-A ports quantity2
USB hubYes

CS1922.pdf

Aten CS1922 Data Sheet

Download (1.84M)

Similar products

  • Aten 2 Port DVI-D Computer Sharing Device
    Aten 2 Port DVI-D Computer Sharing Device
  • Aten KL1508AN
    Aten KL1508AN
  • Aten Umschalter
    Aten Umschalter
  • Aten CS1912
    Aten CS1912

Aten CS1922

4x USB3.1 B, 4x DisplayPort, 8x Mini Stereo Jack, 2x USB3.1 A, 88 x 270 x 55.5 mm, 910 g

CS1922

Out of Stock

£271.85
£226.54 Ex VAT.
