APC SurgeArrest
  • APC SurgeArrest
  • APC SurgeArrest
  • APC SurgeArrest
  • APC SurgeArrest
Protection of data lines (Ethernet, Coaxial and Phone lines) ensures complete protection of your equipment from surges. It is very important to protect your equipment from “back door” electric surges traveling through data lines, as they can be as damaging to your equipment as surges traveling over power lines.



Reduces line noise that can cause data loss and keyboard errors.



APC surge protectors undergo stringent testing by IEEE, and are awarded "let-through ratings", which indicate the maximum voltage level that can possibly reach your equipment after a surge or voltage spike has passed through an electric surge protector. Lower IEEE let-through ratings indicate better protection and performance. The APC Essential SurgeArrest series offers optimal performance with a let-through rating of less than 330V for North American products, and a rating of less than 15% for products sold worldwide. All APC products comply with local agency safety requirements, including UL in North America and CE/Kema/Gost/C-tick/A-Tick/Telepermit in their respective regions.
AC outlets quantity5 AC outlet(s)
Cable length1.83 m
CertificationCE
Colour of productWhite
Depth73 mm
Height56 mm
Input frequency50 Hz
Nominal input voltage230 V
Non-operating altitude0 - 4500 m
Number of products included1 pc(s)
On/off switchYes
Operating altitude0 - 3000 m
Operating relative humidity (H-H)0 - 90 %
Operating temperature (T-T)0 - 40 °C
Package depth130 mm
Package height58 mm
Package weight0.8 kg
Package width405 mm
Peak current, common mode24000 A
Peak current, normal mode12000 A
Power plugBS1363A
Quantity per pallet216 pc(s)
RJ-11 ports quantity2
RoHS complianceYes
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-5 - 40 °C
Surge energy rating918 J
Surge protection featuresFax,Modem
Weight690 g
Width385 mm

Similar products

  • APC Surge Module for Analog Phone Line
    APC Surge Module for Analog Phone Line
  • APC PDIGTR
    APC PDIGTR
  • APC PMF83VT-GR
    APC PMF83VT-GR
  • APC SurgeArrest Notebook
    APC SurgeArrest Notebook
  • APC PMH63VT-FR
    APC PMH63VT-FR

APC SurgeArrest

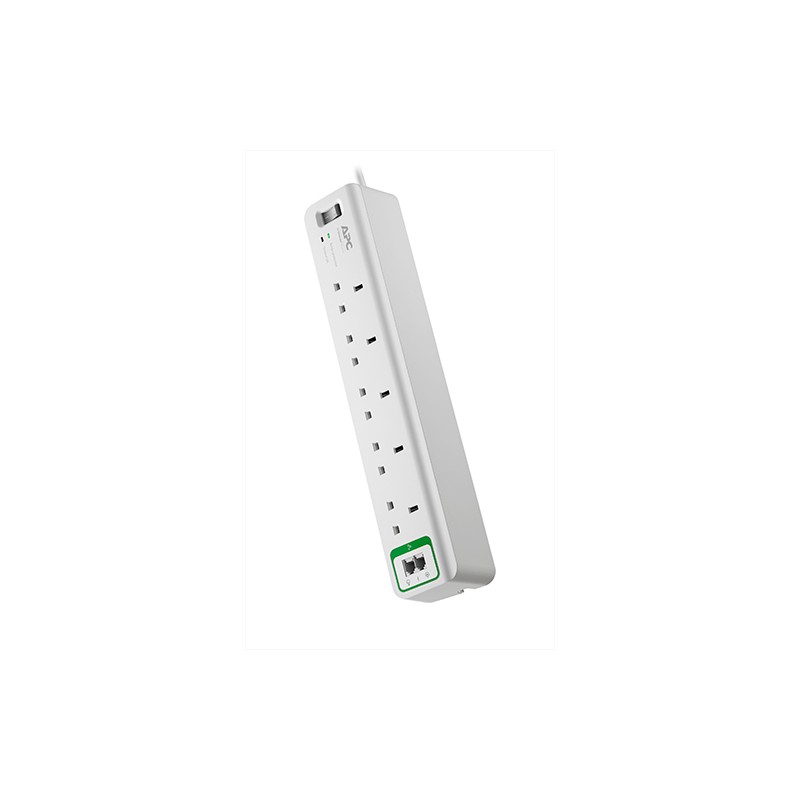

Essential SurgeArrest 5 outlets with Phone Protection 230V UK

PM5T-UK

Out of Stock

£34.00
£28.34 Ex VAT.
