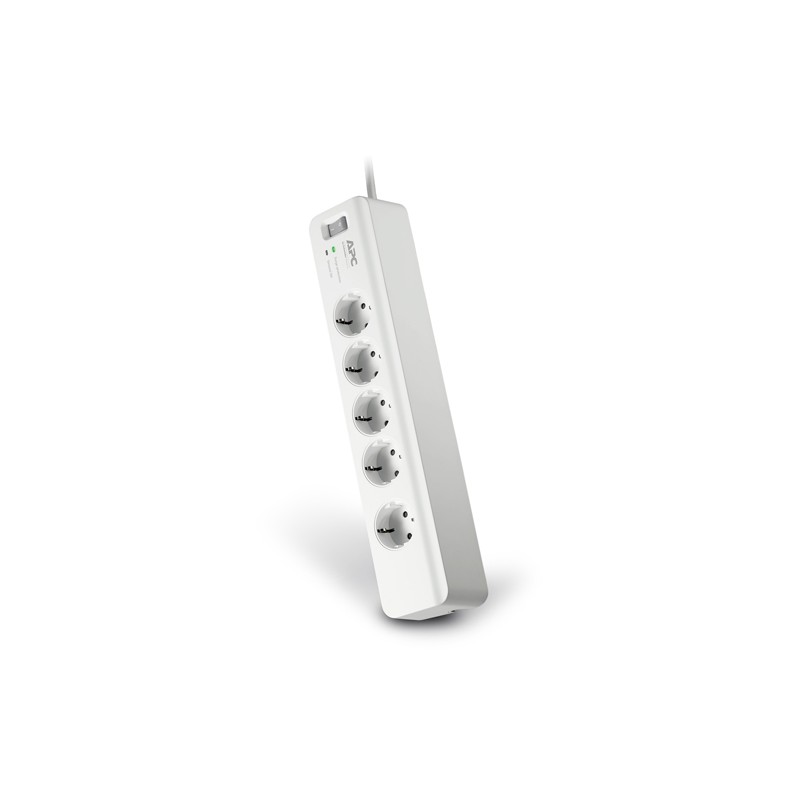

APC PM5-GR
  • APC PM5-GR
  • APC PM5-GR
  • APC PM5-GR
  • APC PM5-GR
Basic Protection Against Power Surges for Computers and Electronics.



SurgeArrest will warn you if its circuitry has been damaged by heavy strike or power line surge and it is unable to provide 100% protection. If still under warranty, APC will then replace your damaged SurgeArrest free of charge.



Resettable circuit breaker



Easy recovery from overloads; no need to replace a fuse.



Right Angle Plug



Plug angle allows for equipment and furniture to be placed closer to the wall than with a standard power cord. Reduces cord stress too.



EMI and RFI noise filtering



Reduces line noise that can cause data loss and keyboard errors.



Catastrophic Event Protection



SurgeArrest components such as MOVs and Thermal fuse ensure instantaneous reaction to lightning strikes and wiring faults. If the surge components are damaged due to power spike or over voltage, excess power cannot reach your equipment. Unlike the APC SurgeArrest products, most surge suppressors continue to let power through even after circuits have been damaged, leaving your equipment exposed to other damaging surges.
AC outlet typesType F (Schuko)
AC outlets quantity5
Cable length1.83 m
Colour of productWhite
Depth72 mm
EMI/RFI noise filtering40 dB
Height55 mm
Input frequency50 Hz
Nominal input voltage230 V
Non-operating altitude0 - 15000 m
Number of products included1 pc(s)
Operating altitude0 - 15000 m
Operating relative humidity (H-H)0 - 95 %
Operating temperature (T-T)0 - 40 °C
Package depth130 mm
Package height58 mm
Package width405 mm
Peak current, common mode24000 A
Peak power2300 W
Power plugType F (Schuko)
Storage relative humidity (H-H)0 - 95 %
Storage temperature (T-T)-15 - 45 °C
Surge energy rating918 J
Weight620 g
Width370 mm

PM5-GR.pdf

APC PM5-GR Data Sheet

Download (164.85k)

Similar products

  • APC Surge Module for Analog Phone Line
    APC Surge Module for Analog Phone Line
  • APC PDIGTR
    APC PDIGTR
  • APC PMF83VT-GR
    APC PMF83VT-GR
  • APC SurgeArrest Notebook
    APC SurgeArrest Notebook
  • APC PMH63VT-FR
    APC PMH63VT-FR

APC PM5-GR

5 x CEE 7 Schuko Oulets, 1 x Schuko CEE 7/7P In, 918 Joules, 230V, Germany

PM5-GR

Out of Stock

£31.00
£25.83 Ex VAT.
