Please Note, this product is not for consumer use in the European Union.
APC Smart-UPS SC is the perfect protection for the IT resources of your growing business. Manageable and cost effective, APC Smart-UPS SC is designed for use by small and medium companies looking to protect entry level servers and networking equipment, providing both power and data-line protection. Included PowerChute Business Edition management software allows you to configure safe system shutdowns and take advantage of advanced UPS management features like automated risk assessments and runtime capacity calculations. (All major operating systems supported). Communications are through your server's standard serial port. When you are ready to take your business to the next level you can use the same software environment found on Smart-UPS SC to seamlessly manage other Smart-UPS models, allowing you to grow your IT infrastructure without having to replace your software or retrain your administrators. Built on the same standards as the award winning Smart-UPS UPS, the Smart-UPS SC is the UPS to start your business with.AC outlet types | C13 coupler |
AC outlets quantity | 4 AC outlet(s) |
Auto-restart | Yes |
Automatic battery test | Yes |
Automatic Voltage Regulation (AVR) | Yes |
Battery capacity | 132 VAh |
Battery life (max) | 5 year(s) |
Battery recharge time | 5.5 h |
Battery replacement alarms | LED |
Battery technology | Sealed Lead Acid (VRLA) |
Battery type | Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
Cables included | RS-232 |
Certification | REACH, PEP, EOLI |
Colour of product | Grey |
Depth | 375 mm |
Dimensions (WxDxH) | 119 x 368 x 168 mm |
Efficiency | 97.4 % |
Emergency Power Off (EPO) | No |
Form factor | Tower |
Height | 168 mm |
Input connection type | IEC-320-C14 inlet |
Input connections | IEC-320-C14 |
Interface | DB-9 RS-232 |
LED indicators | Yes |
Manual | Yes |
Noise level | 45 dB |
Nominal input voltage | 230 V |
Nominal output voltage | 230 V |
Non-operating altitude | 0 - 15000 m |
Number of output IEC jumpers | 2 |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 0 - 95 % |
Operating relative humidity range | 0 - 95 % |
Operating temperature (T-T) | 0 - 40 °C |
Operating temperature range (T-T) | 0 - 40 °C |
Output connections | IEC 320 C13 IEC 320 C13 IEC Jumpers |
Output power | 390 W |
Output power capacity (VA) | 620 VA |
Package depth | 508 mm |
Package dimensions (WxDxH) | 262 x 508 x 318 mm |
Package height | 318 mm |
Package weight | 13180 g |
Package width | 262 mm |
Power supply input frequency | 50/60 Hz |
Quantity per pallet | 12 pc(s) |
Replacement battery cartridge | RBC4 |
RoHS compliance | Yes |
Serial interface type | RS-232 |
Serial ports quantity | 1 |
Source data-sheet | Icecat.biz |
Storage relative humidity (H-H) | 0 - 95 % |
Storage relative humidity range | 0 - 95 % |
Storage temperature (T-T) | -15 - 45 °C |
Storage temperature range (T-T) | -15 - 45 °C |
Surge energy rating | 320 J |
Surge protection | Yes |
Surge protection features | Digital Subscriber Line (DSL),Fax,Modem,Network |
Typical backup time at full load | 5.5 min |
Typical backup time at half load | 15.8 min |
Waveform | Sine |
Weight | 12270 g |
Width | 119 mm |
Output power capacity | 620 VA |
UPS topology | Line-Interactive |
Audible alarm(s) | Yes |
Hold time (max) | 2 ms |
Software CD | Yes |
Audible alarm modes | Low battery alarm,Overload alarm |
Serial interface | Yes |

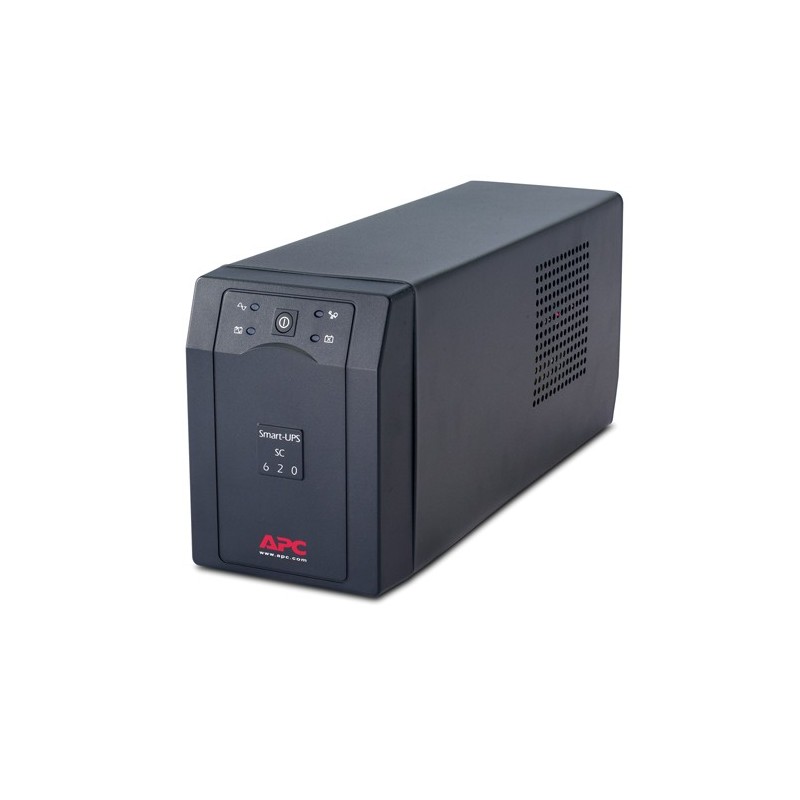

APC Smart-UPS SC, 620VA/390W, Input 230V/Output 230V, Interface Port DB-9 RS-232
SC620I
