Please Note, this product is not for consumer use in the European Union.
The economical UPS to start your businessAC outlet types | C13 coupler |
AC outlets quantity | 4 AC outlet(s) |
Auto-restart | Yes |
Automatic battery test | Yes |
Automatic Voltage Regulation (AVR) | Yes |
Battery capacity | 108 VAh |
Battery life (max) | 5 year(s) |
Battery recharge time | 5 h |
Battery replacement alarms | LED |
Battery technology | Sealed Lead Acid (VRLA) |
Cables included | RS-232 |
Certification | C-tick, CE, GOST, VDE, PEP, EOLI |
Colour of product | Grey |
Depth | 383 mm |
Dimensions (WxDxH) | 432 x 383 x 44 mm |
Filtering | 0.7% IEEE/UL 1449 |
Form factor | Rackmount/Tower |
Height | 44 mm |
Hot-swap battery | Yes |
Input connection type | IEC-320 C14 |
Input connections | IEC-320 C14 |
Input operation voltage (max) | 302 V |
Input operation voltage (min) | 151 V |
Interface | DB-9 RS-232 |
LED indicators | Yes |
Manual | Yes |
Noise level | 38 dB |
Nominal output voltage | 230 V |
Non-operating altitude | 0 - 15000 m |
Number of output IEC jumpers | 2 |
Operating altitude | 0 - 3000 m |
Operating relative humidity (H-H) | 0 - 95 % |
Operating relative humidity range | 0 - 95 % |
Operating temperature (T-T) | 0 - 40 °C |
Operating temperature range (T-T) | 0 - 40 °C |
Output connections | (4) IEC 320 C13 |
Output power | 280 W |
Output power capacity (VA) | 450 VA |
Output voltage note | 5: 1 |
Package depth | 589 mm |
Package dimensions (WxDxH) | 476 x 589 x 164 mm |
Package height | 164 mm |
Package weight | 11730 g |
Package width | 476 mm |
Power supply input frequency | 50/60 Hz |
Quantity per pallet | 24 pc(s) |
Rack capacity | 1U |
Rack mount kit | Yes |
Replacement battery cartridge | RBC18 |
RoHS compliance | Yes |
Serial interface type | RS-232 |
Serial ports quantity | 1 |
Source data-sheet | Icecat.biz |
Storage relative humidity (H-H) | 0 - 95 % |
Storage relative humidity range | 0 - 95 % |
Storage temperature (T-T) | -15 - 45 °C |
Storage temperature range (T-T) | -15 - 45 °C |
Surge energy rating | 320 J |
Surge protection | Yes |
Surge protection features | Digital Subscriber Line (DSL),Fax,Modem,Network |
Typical backup time at full load | 5.9 min |
Typical backup time at half load | 19.4 min |
Waveform | Sine |
Weight | 10180 g |
Width | 432 mm |
Output power capacity | 450 VA |
UPS topology | Line-Interactive |
Audible alarm(s) | Yes |
Hold time (min) | 4 ms |
Hold time (max) | 8 ms |
Software CD | Yes |
Audible alarm modes | Low battery alarm,Overload alarm |
Serial interface | Yes |

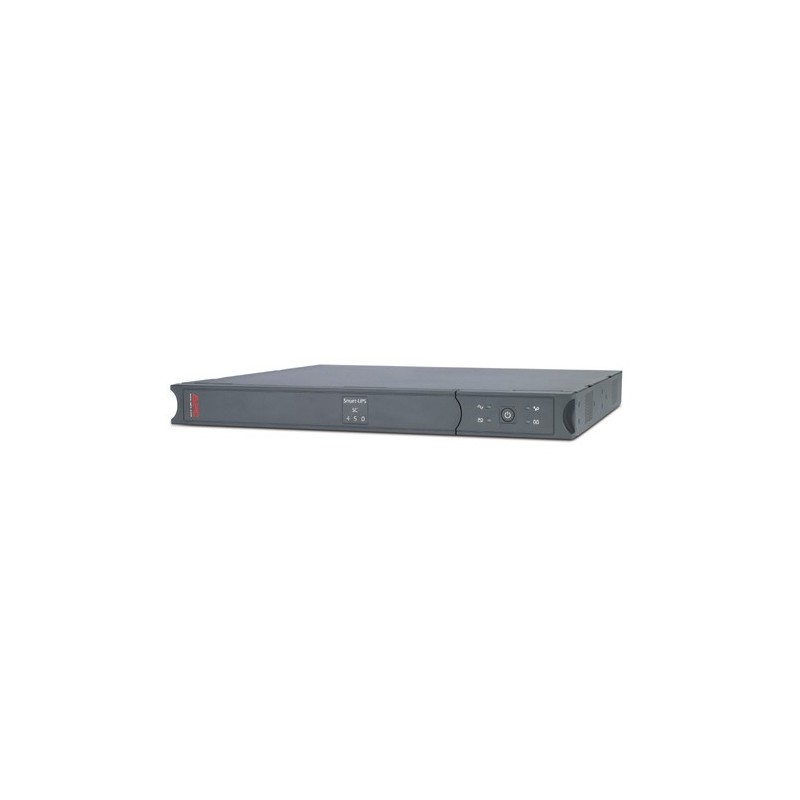

APC Smart-UPS SC 450VA 230V - 1U Rackmount Tower
SC450RMI1U
In Stock
