Certification | EN 50091-2,EN/IEC 62040-3,EN/IEC 62040-1-1,VFI-SS-111 |
Colour of product | Black |
Dimensions (WxDxH) | 560 x 216 x 1174 mm |
Input frequency | 50 Hz |
Maximum input current per phase | 182.4 A |
Operating relative humidity range | 0 - 95 % |
Operating temperature range (T-T) | 0 - 40 °C |
Output connections | Hard Wire 5-wire (3PH + N + G) |
Package dimensions (WxDxH) | 704 x 335 x 1298 mm |
Source data-sheet | Icecat.biz |
Storage relative humidity range | 0 - 95 % |
Storage temperature range (T-T) | -15 - 45 °C |
Weight | 53000 g |

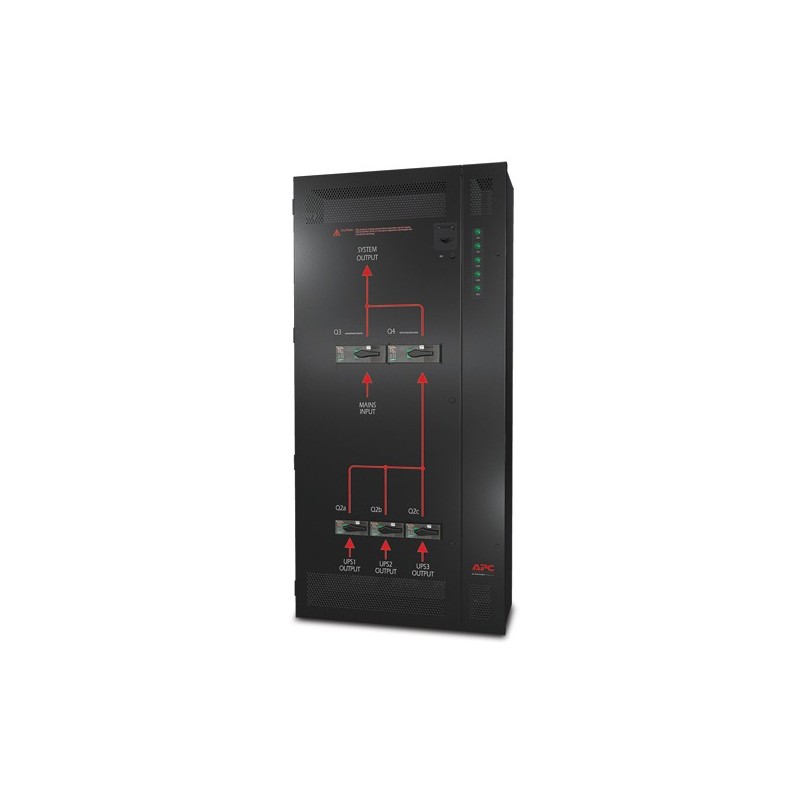

Parallel Maintenance Bypass Panel, up to 3 units 30-40kVA, 400V Wallmount
SBPAR30K40H-WP
Out of Stock
